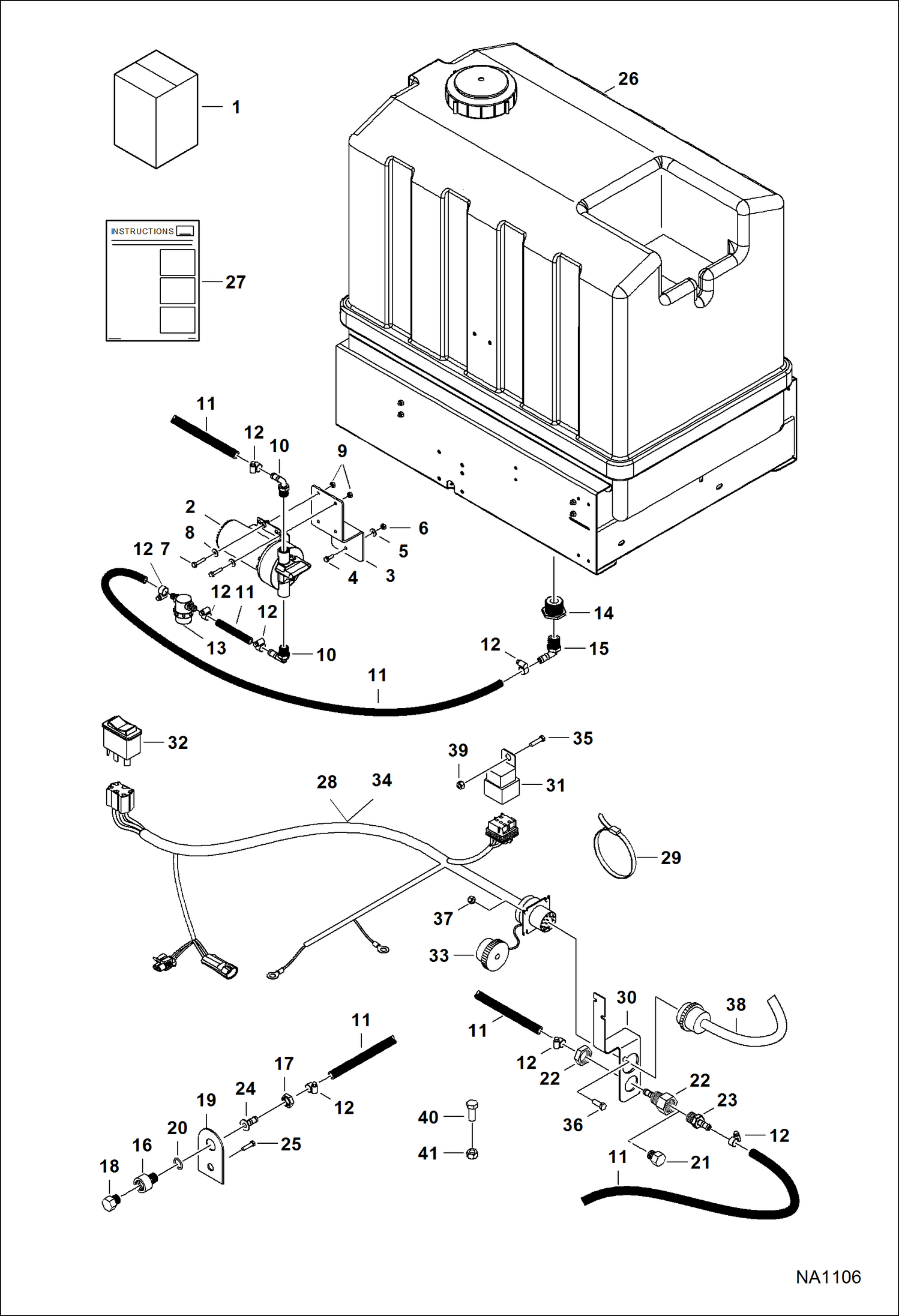

Запчасти Bobcat WATER KIT WATER KIT 80 GALLON Plumbing & Electrical For 5600 Series Toolcat Loader

1

WATER KIT SALES #7143328 - 80 gallon

2

6684962

PUMP See Illustration PUMP/ B22773

3

7002758

MOUNT, PUMP

4

17C616

BOLT 5

5

27E6

WASHER 5

6

59D6

NUT

7

17C420

BOLT

8

27E4

WASHER

9

59D4

NUT 5

10

6686839

ELBOW

11

6684616

HOSE .50'' ID - bulk-sold per foot

12

42HL100

CLAMP, HOSE

13

6684967

STRAINER

14

6685042

ADAPTER 1.25'' MPT x .750'' MPT reducer - Was 7002763 - A

15

6684964

ELBOW .750'' MPT x 0.50'' hose barb

16

6658148

COUPLER

17

6658152

NUT

18

6658153

CAP

19

6676438

MOUNT

20

6676441

O-RING

21

6684615

CAP

22

6684960

COUPLER female

23

6684961

COUPLER male

24

6685024

ADAPTER

25

84G3112

BOLT 5

26

7002992

TANK, WATER KIT 80 GAL

27

6902629

INSTRUCTIONS for water kit

28

HARNESS KIT SALES - for 5600 A thru C series - W/Ref. 29 - 41 - Sales #7138308

28

HARNESS KIT NLA - For 5600 D & F series - Order components - Ref. 29-41 - Was SALES #7138309 - A

29

6624289

STRAP, TIE

30

6959178

MOUNT Use with 5600 A thru C series

30

7135097

BRACKET Use with 5600 D & F series

31

6670312

SWITCH, MAGNETIC relay

32

6684927

SWITCH Sprayer

33

6684931

COVER receptacle

34

6959237

HARNESS Sprayer - used with 5600 A thru C series

34

7135096

HARNESS Sprayer - used with 5600 D & F series

34

6684929

CONNECTOR, RECEPTACLE Use with 7135096 harness

35

17C412

BOLT 5

36

47G408

SCREW

37

50D4

NUT

38

6959259

HARNESS Sprayer pump

39

59D4

NUT 5

40

29CM620

SCREW

41

51DM6

NUT
