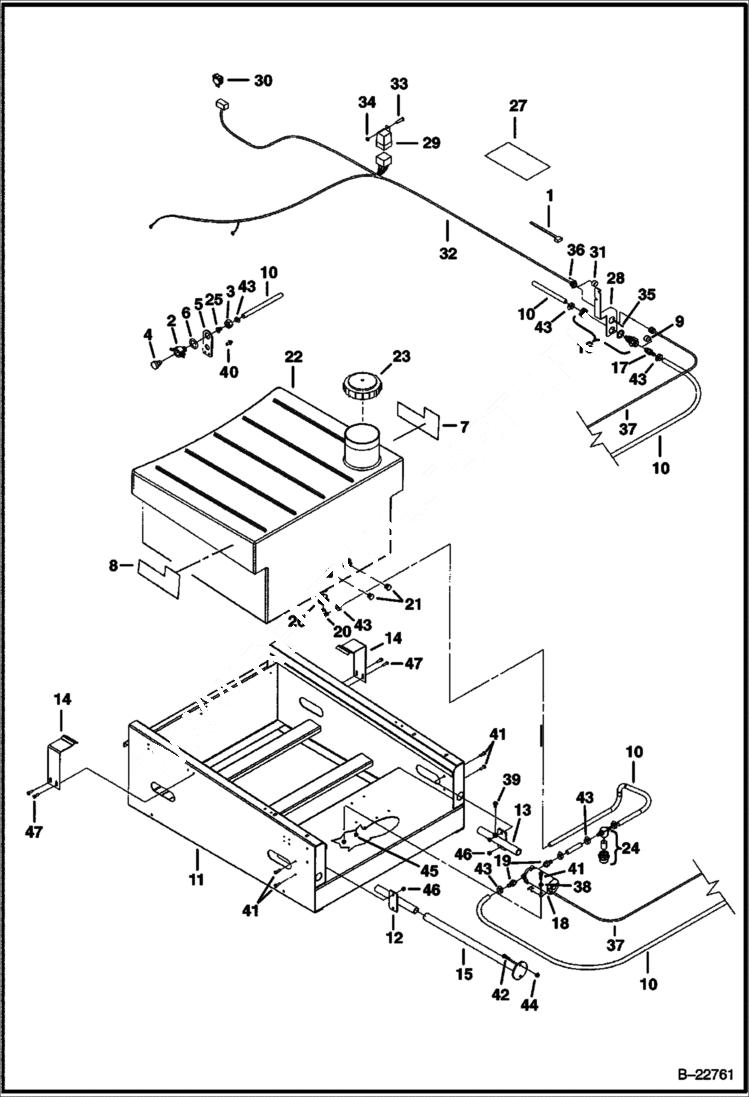

Запчасти Bobcat WATER KIT WATER KIT - 75 GALLON Tank, Frame, Plumbing & Electrical For 5600 Series Toolcat Loader

1

6624289

STRAP, TIE

2

6658148

COUPLER

3

6658152

NUT

4

6658153

CAP

5

6676438

MOUNT

6

6676441

O-RING

7

6676601

DECAL

8

6676602

DECAL

9

6684615

CAP

10

6684616

HOSE .50'' - bulk - sold per foot

11

6684954

FRAME

12

6684955

MOUNT R.H.

13

6684956

MOUNT L.H.

14

6684957

BRACKET

15

6684959

SUPPORT

16

6684960

COUPLER female

17

6684961

COUPLER male

18

6684962

PUMP See Illustration PUMP/ B22773

19

6684963

ADAPTER

20

6684964

ELBOW

21

6684965

PLUG

22

6684966

TANK 75 gal

23

6685668

CAP with O-ring

24

6684967

STRAINER

25

6685024

ADAPTER

26

6685042

ADAPTER reducer

27

6902629

INSTRUCTIONS

28

6959178

MOUNT

29

6670312

SWITCH, MAGNETIC relay

30

6684927

SWITCH sprayer

31

6684931

COVER receptacle

32

6959237

HARNESS sprayer

33

17C412

BOLT 5

34

59D4

NUT 5

35

47G408

SCREW

36

50D4

NUT

37

6959259

HARNESS sprayer pump

38

4E13

WASHER Was 23E000013B - A

39

13G620

SET SCREW Was 13G612 - A

40

84G3112

BOLT 5

41

17C616

BOLT 5

42

35C616

BOLT 5

43

42HL100

CLAMP, HOSE

44

55D6

NUT

45

59D4

NUT 5

46

59D6

NUT

47

BOLT NLA - Was 61G000616B - A
