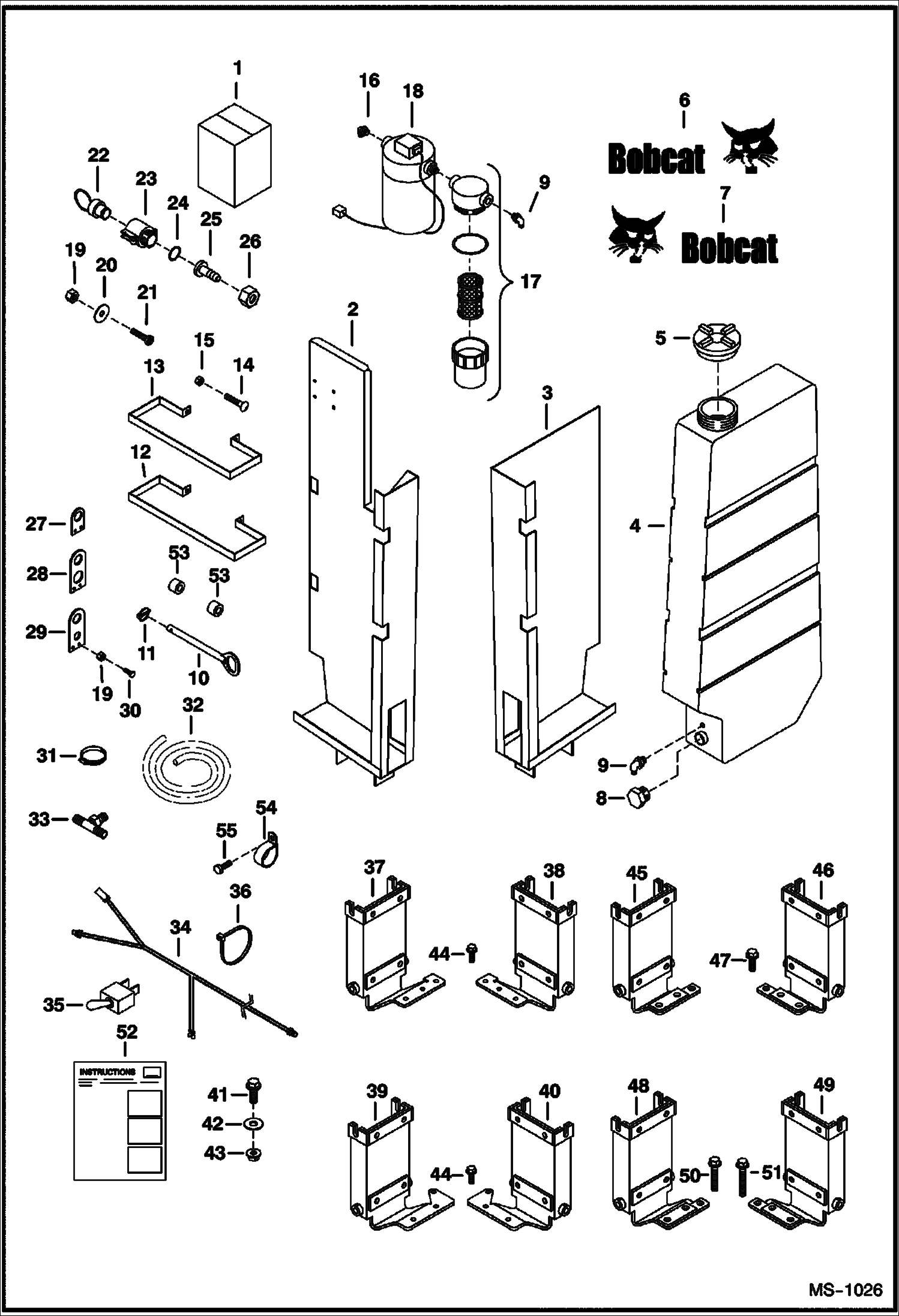

Запчасти Bobcat WATER KIT WATER KITS Loader

1

WATER KIT SALES #6808291 - 751, 753, 763 F & G Series

1

WATER KIT NLA - 773G only - Order 6813816 water kit & 6811454 mounting kit - Was SALES - A

1

WATER KIT NLA - 853F, 863, 864, 873 F & G Series SALES # 6808293 - Order 6813816 water kit & 6811452 mounting kit - Was SALES - A

1

WATER KIT NLA - 953 & 963 F & G Series - SALES #6808294 - Order 6813816 water kit & 6813755 mounting kit - Was SALES - A

1

6813816

KIT, WATER Ref. 2-36 & 53-56 - Also Order mounting kits on Ill. B25214, B25215, B20704, B25216 & B25217 - Was SALES #6813816 - D

2

6676432

FRAME L.H.

3

6676435

FRAME R.H.

4

6658145

TANK, WATER KIT

5

6658146

CAP fill

6

6676601

DECAL LH - Was 6727324 - B

7

6676602

DECAL RH - Was 6727323 - B

8

6658147

PLUG drain

9

6655682

ADAPTER

10

6680189

PIN locking - Was 6676439 - A

11

6649706

PIN lynch

12

6676434

STRAP bottom

13

6676433

STRAP top

14

37C632

BOLT carriage

15

59D6

NUT

16

6655693

ELBOW

17

6655686

FILTER

18

6666325

PUMP

19

59D4

NUT 5

20

25E13

WASHER 5

21

91G420

SCREW Was 84G000420B - B

22

6658153

CAP

23

6658148

COUPLER

24

6676441

O-RING

25

6658151

ADAPTER

26

6658152

NUT

27

6676437

MOUNT coupler - 7 pin/14 pin

28

6676436

MOUNT coupler - 14 pin only

29

6676438

MOUNT coupler - 7 pin only

30

17C412

BOLT 5

31

6658150

CLAMP

32

HOSE NLA - 9144 mm (360'') long - Order Ref. 52

33

6655685

FITTING, TEE

34

6676431

HARNESS

35

6515521

SWITCH

36

6610510

TIE

37

6811478

MOUNT L.H. - 751, 753, 763 - Was 6676419 - A

38

6811477

MOUNT R.H. - 751, 753, 763 - Was 6676420 - A

39

6811480

MOUNT L.H. - 773G - Was 6676421 - A

40

6811479

MOUNT R.H. - 773G - Was 6676422 - A

41

31C1028

SCREW

42

25E25

WASHER 10

43

53D10

NUT

44

31C832

BOLT

45

6811476

MOUNT L.H. - 863, 864, 873 - Was 6676424 - A

46

6811475

MOUNT R.H. - 863, 864, 873 - Was 6676423 - A

47

31C1240

BOLT

48

6676426

BRACKET L.H. - 953, 963

49

6676425

BRACKET R.H. - 953, 963

50

31C1264

BOLT for L.H. bracket

51

31C1280

BOLT for R.H. bracket

52

6655683

HOSE bulk - sold per foot

53

6680188

BUSHING, SPACER

54

30H38

CLIP

55

84G3710

SCREW

56

6901079

INSTRUCTIONS for water kit

56

6987451

INSTRUCTIONS for water kit on M-series loaders
