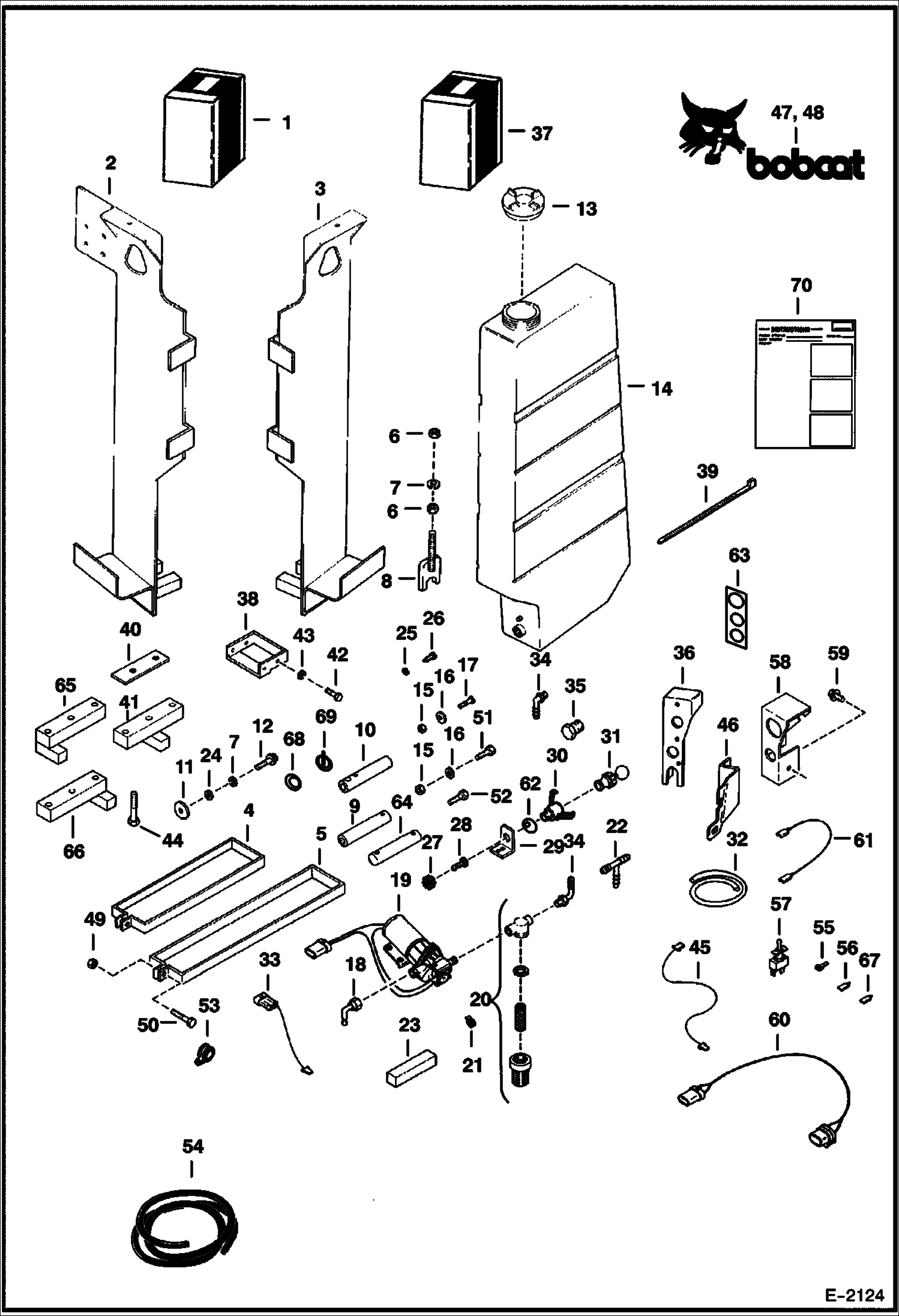

Запчасти Bobcat WATER KIT 800 SERIES WATER KIT (Water Pump Mounted on Mounting Brackets) Loader

1

KIT NLA - 853 & 863 - Order water kits on Ill. MS1026 - Was Sales kit #6665483 - A

1

KIT NLA - 873 - Order water kits on Ill. MS1026 - Was Sales kit # 6669226 - A

2

6661574

MOUNT L.H.

2

6669273

MOUNT L.H. - 873

3

6661575

MOUNT R.H.

3

6669274

MOUNT R.H. - 873

4

6659853

BAND

5

6659854

BAND

6

63D8

NUT

7

4E8

WASHER

8

6658154

YOKE

9

6658161

PIN MOUNT 843

10

6713054

PIN 853 & 863 - Was 6661576 - A

11

6564692

WASHER

12

35C816

BOLT

13

6658146

CAP

14

6658145

TANK, WATER KIT 14 Gallon

15

81D4

NUT

16

25E13

WASHER 5

17

17C420

BOLT

18

6655693

ELBOW

19

6666325

PUMP Was 6655733 - A

20

6655686

FILTER water

21

6658150

CLAMP

22

6658521

TEE

23

6658159

BLOCK

24

25E21

WASHER 5

25

4E4

WASHER

26

18G000812B

SCREW Was 18G000816B - B

27

6658152

NUT

28

6658151

ADAPTER

29

6658163

MOUNT

30

6658148

COUPLER

31

6658153

CAP

32

HOSE NLA - 6400,8 mm (252'') long - Order Ref. 54

33

WIRE NLA - power - Was 6661572 - A

34

6655682

ADAPTER

35

6658147

PLUG

36

6660063

MOUNT

37

KIT WIRING NLA - See Sales handbook - Was 6661573 - A

38

6661577

BRACKET

39

6624289

STRAP, TIE Was 6648631 - A

40

6661578

SHIM

41

6661579

BLOCK 853

42

17C616

BOLT 5

43

25E6

WSHR

44

17C1256

BOLT

45

6657369

WIRE

46

6662830

BRACKET Was 6661190 - A

47

6676601

DECAL left - Was 6567987 - B

48

6676602

DECAL right - Was 6567988 - B

49

91D5

NUT 5 Was 81D000005B - A

50

17C520

BOLT 5

51

17C416

BOLT

52

17C412

BOLT 5

53

6661582

CLAMP

54

6655683

HOSE bulk - sold per foot

55

30R105

TERMINAL ring

56

733611

TERMINAL spade

57

6515521

SWITCH

58

6706753

MOUNT

58

6711621

MOUNT 873

59

84G3716

SCREW 5

60

6665395

WIRE pump

61

6665389

WIRE switch

62

6711810

WASHER

63

6711782

MOUNT

64

6707813

PIN 873

65

6706457

MOUNT L.H. - 873

66

6706456

MOUNT R.H. - 873

67

6670117

TERMINAL spade

68

6578768

WASHER

69

6560382

PIN, LOCK retaining

70

6720566

INSTRUCTIONS

70

6724869

INSTRUCTS 873
