Запчасти Bobcat WATER KIT 740S & 750S WATER KIT (Water Pump Mounted on Mounting Brackets) Loader

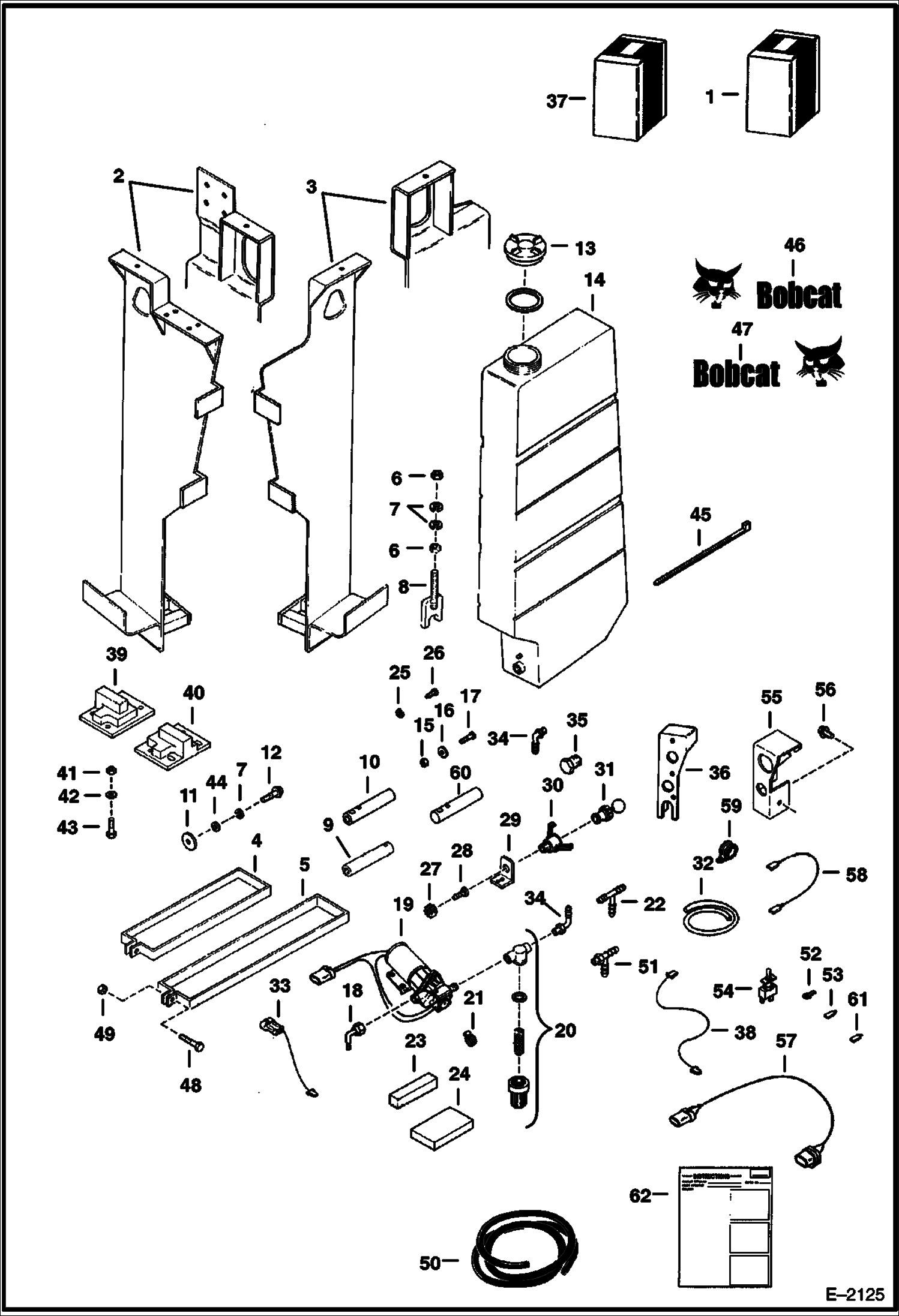

Схема запчастей Bobcat WATER KIT - 740S & 750S WATER KIT (Water Pump Mounted on Mounting Brackets) Loader

Артикул

Название

Примечание

Количество

1

KIT NLA - Order water kits on Ill. MS1026 - Was Sales - A

2

6661570

MOUNT left - 641 thru 753

2

6662218

MOUNT left - 753L, 7753

3

6658155

MOUNT right - 641 thru 753

3

6662260

MOUNT right - 753L, 7753

4

6659853

BAND

5

6659854

BAND

6

63D8

NUT

7

4E8

WASHER

8

6658154

YOKE

9

6658161

PIN MOUNT 743

10

PIN MOUNT NLA - 753 - Was 6671134 - A

11

6564692

WASHER

12

35C816

BOLT

13

6658146

CAP

14

6658145

TANK, WATER KIT 14 Gallon

15

81D4

NUT

16

25E13

WASHER 5

17

17C420

BOLT

18

6655693

ELBOW

19

6666325

PUMP Was 6655733 - A

20

6655686

FILTER

21

6658150

CLAMP

22

6655685

FITTING, TEE

23

6658159

BLOCK

24

6658160

SPACER

25

4E4

WASHER

26

SCREW NLA - Was 18G000816B - A

27

6658152

NUT

28

6658151

ADAPTER

29

6658163

MOUNT

30

6658148

COUPLER

31

6658153

CAP

32

HOSE NLA - 6400,8 mm (252'') long - Order Ref. 50

33

WIRE NLA - power - Was 6661572 - A

34

6655682

ADAPTER

35

6658147

PLUG

36

6648628

MOUNT

37

KIT WIRING NLA - See Sales handbook - Was 6661573 - A

38

WIRE NLA - Was 6657369 - A

39

6704344

MOUNT BLOCK right - 753 & 7753 - Was 6661580 - A

40

6704343

MOUNT BLOCK left - 753 & 7753 - Was 6661581 - A

41

81D6

NUT

42

25E17

WASHER 5

43

17C628

BOLT

44

25E21

WASHER 5

45

6624289

STRAP, TIE Was 6648631 - A

46

6676602

DECAL right - Was 6567988 - B

47

6676601

DECAL left - Was 6567987 - B

48

17C520

BOLT 5

49

91D5

NUT 5 Was 81D000005B - A

50

6655683

HOSE bulk - sold per foot

51

6658521

TEE

52

30R105

TERMINAL ring

53

733611

TERMINAL spade

54

6515521

SWITCH

55

6706753

MOUNT

56

84G3716

SCREW 5

57

6665395

WIRE pump

58

6665389

WIRE switch

59

30H27

CLAMP Was 6661582 - A

60

6703817

PIN MOUNT 753L, 7753, 763 & 773

61

6670117

TERMINAL spade

62

6720566

INSTRUCTIONS

Выбрано товаров: 64
