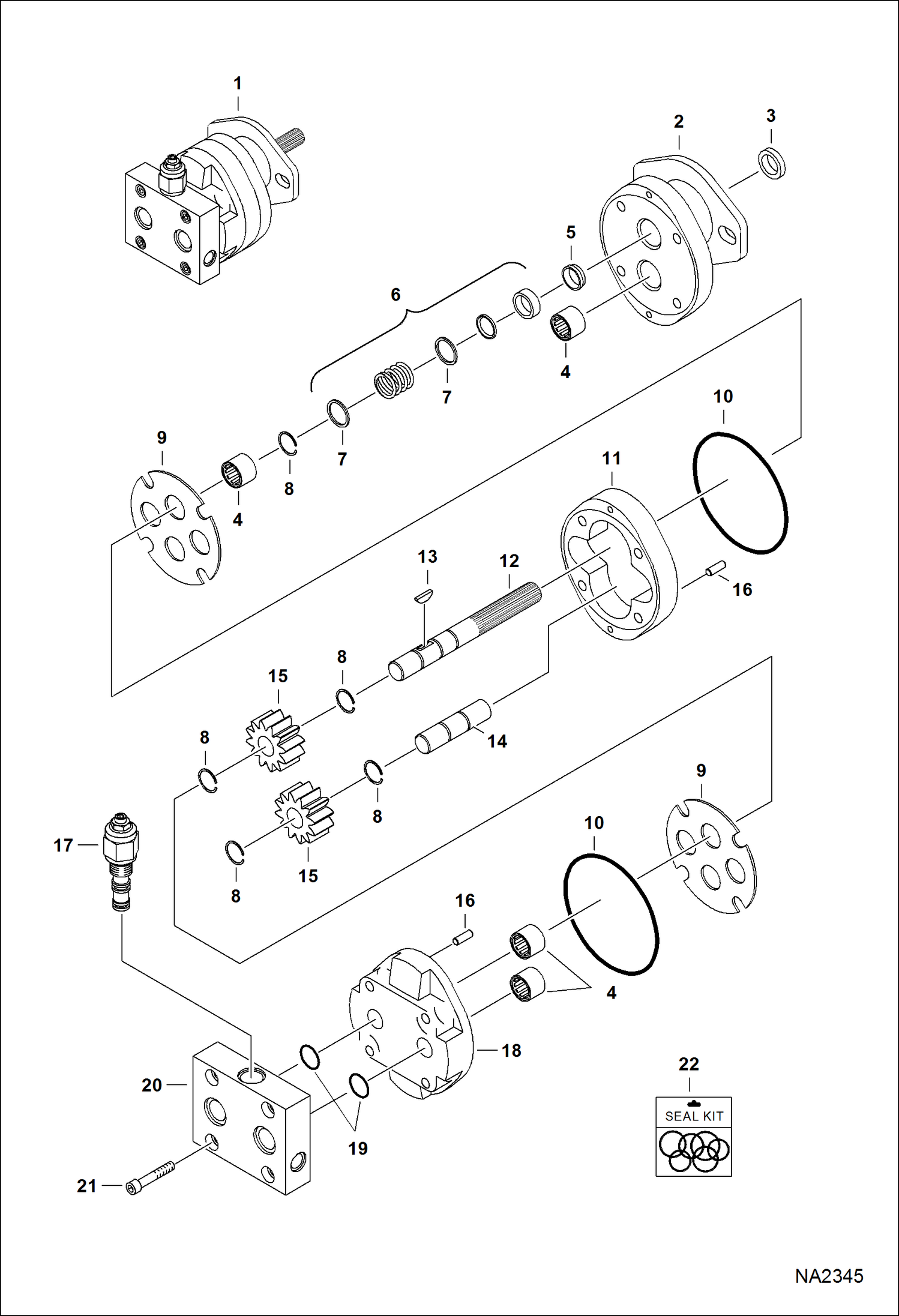

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Motor) Loader

1

7176615

MOTOR, DRIVE HYD 48'' - Ref. 2-21

1

7162739

MOTOR, DRIVE HYD 73'' & 80'' - Ref. 2-21

2

7010520

ADAPTER

3

7010518

BEARING outboard

3

7010519

RING, SNAP

4

867755

BEARING roller

5

867743

SEAL

6

7010517

SEAL, SHAFT

7

867750

WASHER

8

9J13

RING snap

9

867748

WEAR PLATE

10

25K40328

O RING 10

11

HOUSING NSS - center - Order Ref. 1

12

7028461

SHAFT, DRIVE 196,8 mm (7.75'') long - For 7176615 motor

12

7010516

SHAFT, MOTOR DRIVE 190,5 mm (7.5'') long - For 7162739 motor

13

5J405

KEY

14

SHAFT & GEAR NSS - Order Ref 1

15

GEAR NSS - Order Ref 1

16

867753

PIN, DOWEL

17

7010523

VALVE, RELIEF 1250 psi

18

7010521

COVER

19

7010526

O-RING 10

20

7010522

PLATE

21

7028533

BOLT For 7176615 motor

21

7010524

BOLT For 7162739 motor

22

KIT, SEAL order individual seals
