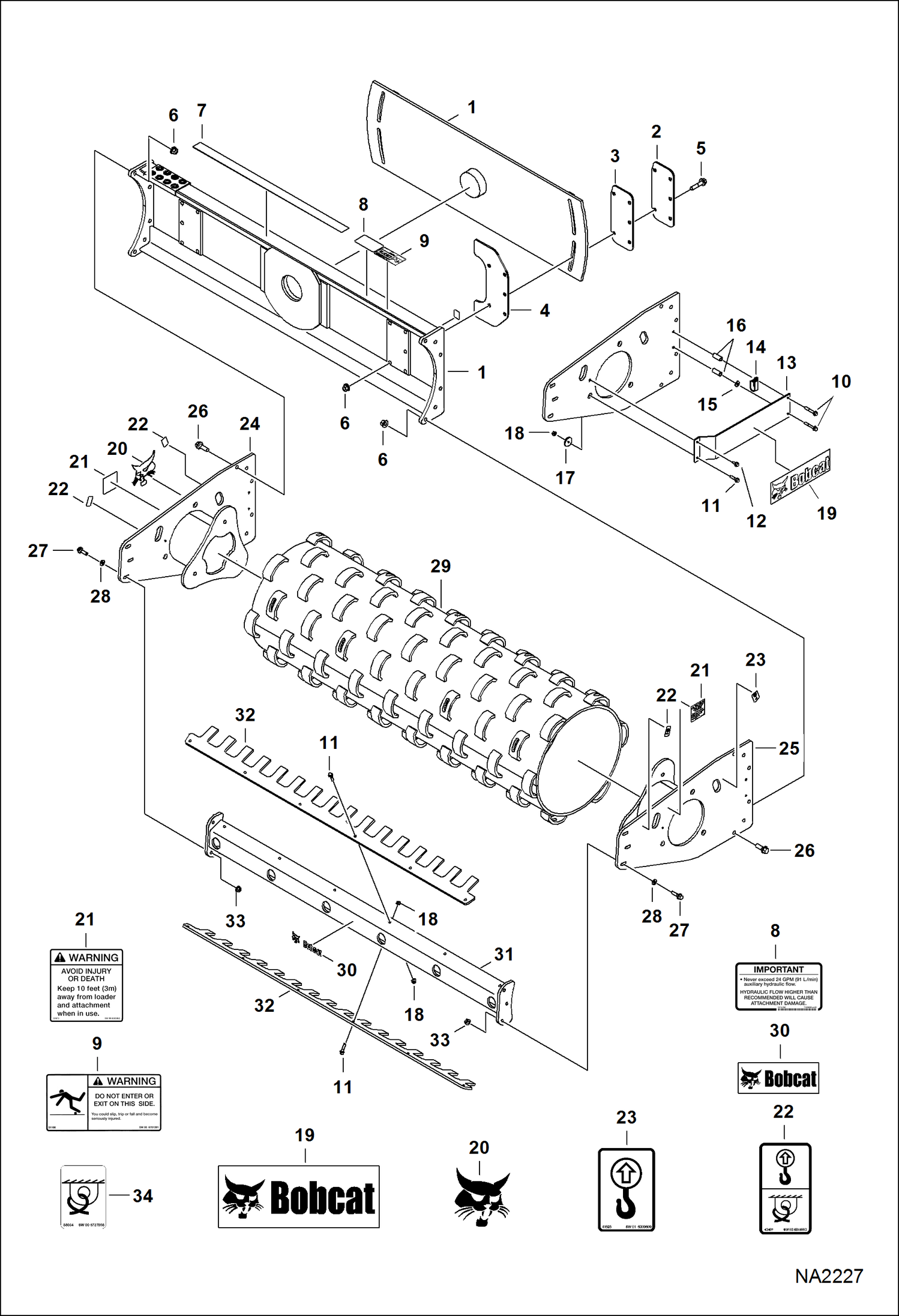

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Frame & Roller) (73 Padded AFLD) Loader

1

7162514

FRAME, MAIN ASSY

2

7162535

SUPPORT slide

3

7162536

PLATE, SLIDE

4

7165540

SLIDE, WEAR

5

31C1044

BOLT

6

83D10

NUT 5

7

6673013

SAFETY THREAD

8

7152860

DECAL, FLOW MAX See Illustration VIBRATORY ROLLER/ NA6232

8

7152861

DECAL, FLOW MAX See Illustration VIBRATORY ROLLER/ NA6232 - no-text

9

6701391

DECAL, EXIT See Illustration VIBRATORY ROLLER/ NA6232

9

7130141

DECAL, EXIT See Illustration VIBRATORY ROLLER/ NA6232 - no-text

10

31C640

BOLT

11

31C624

BOLT

12

31C612

BOLT

13

7162513

GUARD, HOSE

14

31H49

CLAMP hose

15

25E18

WASHER

16

6807587

SPACER

17

872229

WASHER

18

83D6

NUT 5

19

6731332

DECAL logo

20

6732489

DECAL logo

21

6583862

DECAL, WARNING See Illustration VIBRATORY ROLLER/ NA6232

21

7130132

DECAL, WARNING See Illustration VIBRATORY ROLLER/ NA6232 - no-text

22

6815993

DECAL, LIFT tie down

23

6809609

DECAL

24

7162517

FRAME RH

25

7162516

FRAME LH

26

31C1032

BOLT

27

31C828

BOLT

28

29E8

WASHER

29

7162521

ROLLER, PADDED

30

7109473

DECAL, LOGO BOBCAT AND HEAD

31

7162518

SCRAPER

32

7162570

SCRAPER padded

33

83D8

NUT 5

34

6727595

DECAL
