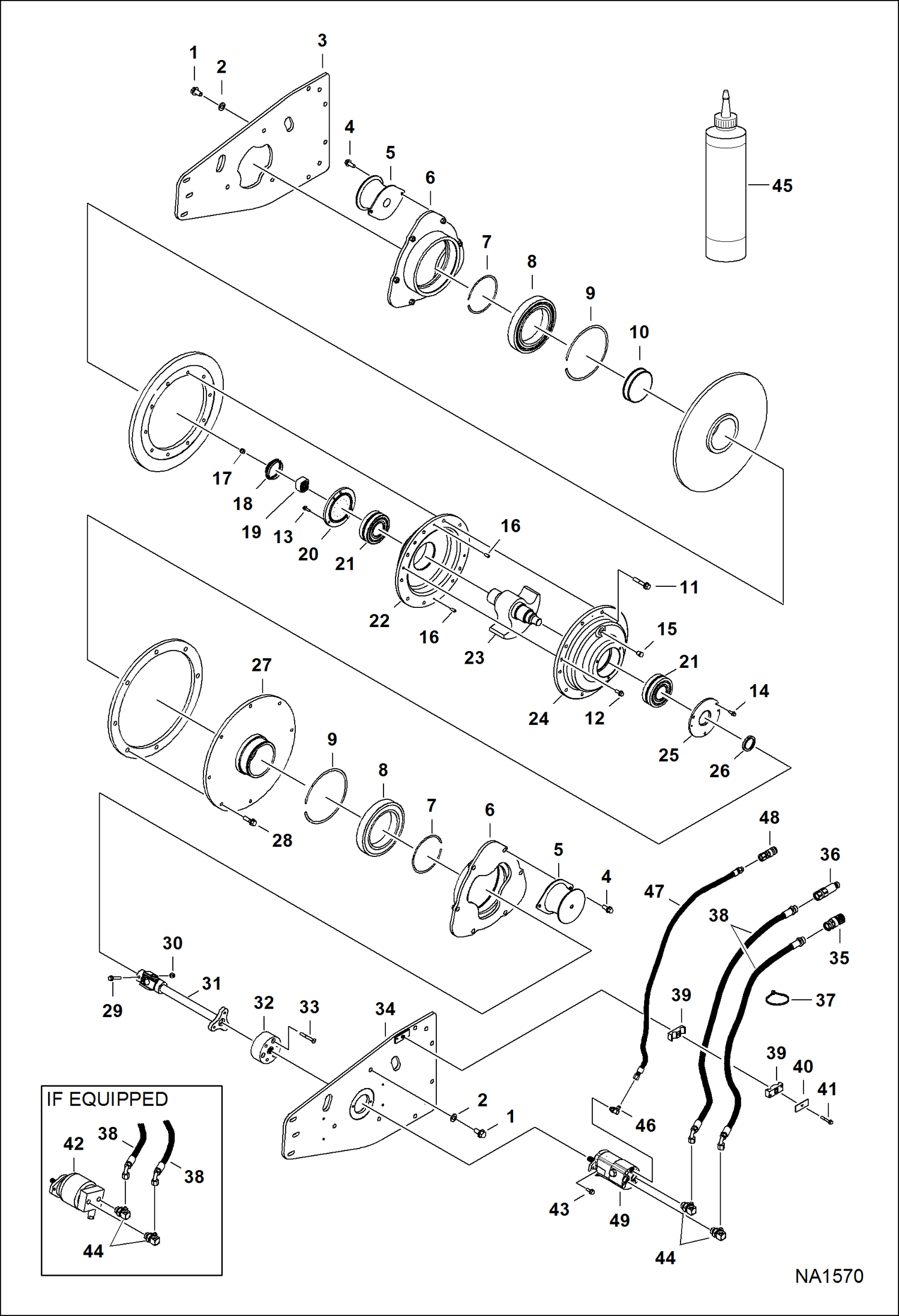

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Hydraulics & Work Group) (48 Padded AFLJ) (48 Smooth AFLK) Loader

1

31C1020

BOLT

2

29E10

WASHER

3

7165385

FRAME side RH

4

31C820

BOLT

5

7162547

MOUNT isolator

6

7162519

MOUNT isolator

7

7168457

RING, RETAINER

8

7162546

BEARING

9

7168456

RING, RETAINER

10

7172942

PLUG

11

31C844

BOLT

12

31C616

SCREW

13

31C516

BOLT

14

31C514

BOLT

15

40K6

PLUG

16

7162569

PIN dowel

17

6679802

PLUG, VENT breather

18

7175066

COVER, DUST

19

7172941

WICK, MESH WIRE

20

7162562

COVER, BEARING

21

7162555

BEARING

22

7163286

HOUSING

23

7162525

WEIGHT ASSY

24

7162554

HOUSING

25

7162560

HOUSING

26

7168501

SEAL, OIL

27

7162522

SPINDLE, ROLLER

28

31C832

BOLT Was 31C828

29

31C640

BOLT

30

83D6

NUT 5

31

7165397

SHAFT, DRIVE

32

7162566

COUPLER

33

95G648

BOLT

34

7176614

FRAME side LH

35

6672960

COUPLER, FF FEMALE straight

36

6674688

COUPLER, FF MALE straight

37

6624289

STRAP, TIE

38

7175067

HOSE, HYD

39

6683610

CLAMP

40

6653493

COVER

41

31C532

BOLT

42

7176615

MOTOR, DRIVE HYD See Illustration VIBRATORY ROLLER/ NA2345

43

31C616

SCREW

44

17KB0812

FITTING, HYD ELBOW

44

79K12

O RING 10

45

6988438

OIL, BOBCAT GEAR AND BEARING, 16OZ
