Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Frame & Roller) (48 Padded AFLJ) Loader

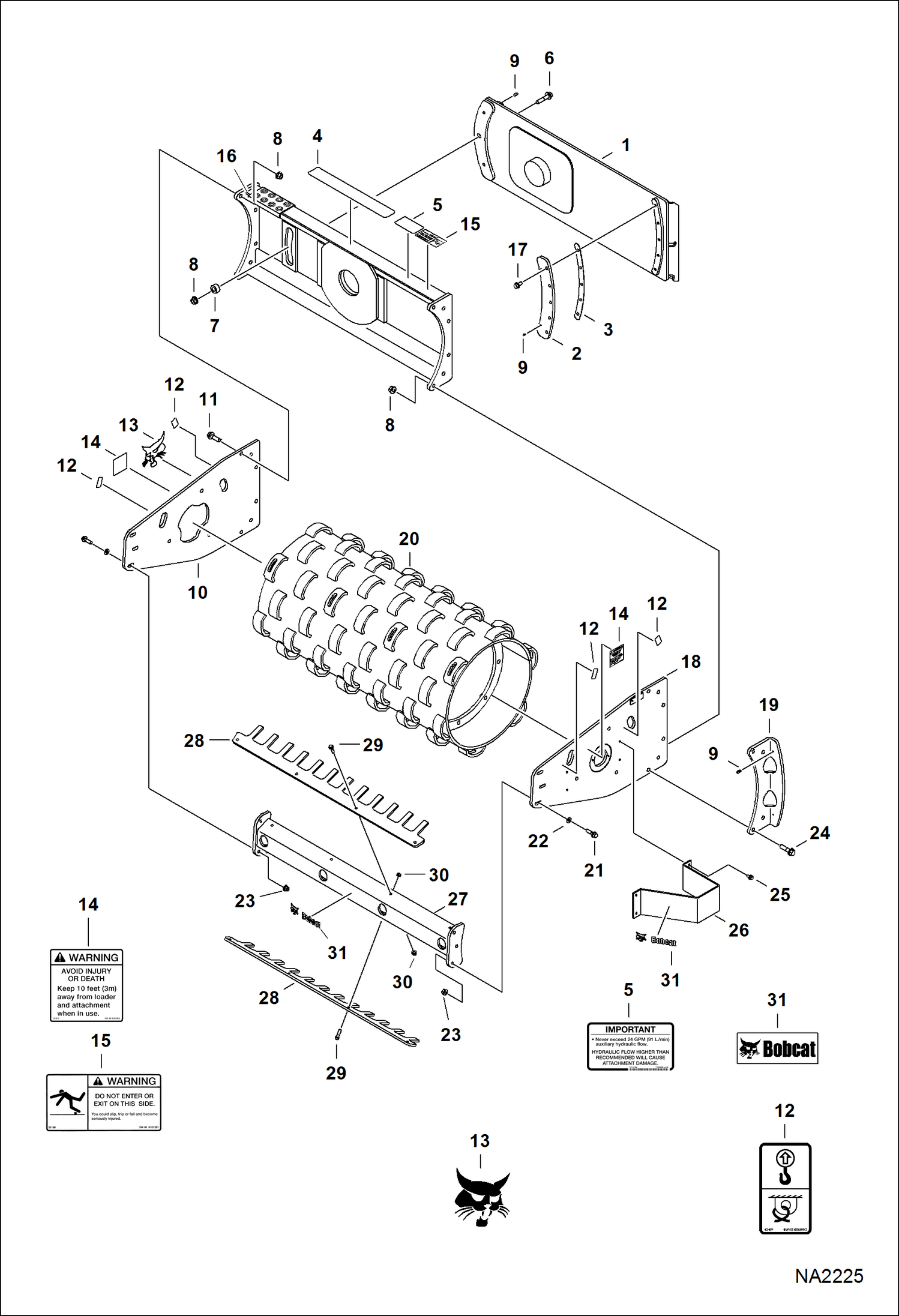

Схема запчастей Bobcat VIBRATORY ROLLER - VIBRATORY ROLLER (Frame & Roller) (48 Padded AFLJ) Loader

Артикул

Название

Примечание

Количество

1

7165336

FRAME, MAIN ASSY

2

7165342

PLATE

3

7171079

SHIM

4

6710498

SAFETY TREAD

5

7175068

DECAL, FLOW MAX

6

31C1044

BOLT

7

7165390

BUSHING

8

83D10

NUT 5

9

10H35

FITTING, GREASE 10

10

7165385

FRAME side RH

11

31C1032

BOLT

12

6815993

DECAL, LIFT tie down

13

6732489

DECAL logo

14

6583862

DECAL, WARNING

15

6701391

DECAL, EXIT

16

6905990

STEP

17

31C816

BOLT

18

7176614

FRAME side LH

19

7165341

SUPPORT

20

7165334

ROLLER, PADDED 48''

21

31C828

BOLT

22

29E8

WASHER

23

83D8

NUT 5

24

31C1040

BOLT

25

31C612

BOLT

26

7165394

SHIELD, MOTOR

27

7165392

SCRAPER

28

7165393

SCRAPER padded

29

31C624

BOLT

30

83D6

NUT 5

31

7109473

DECAL, LOGO BOBCAT AND HEAD

Выбрано товаров: 31
