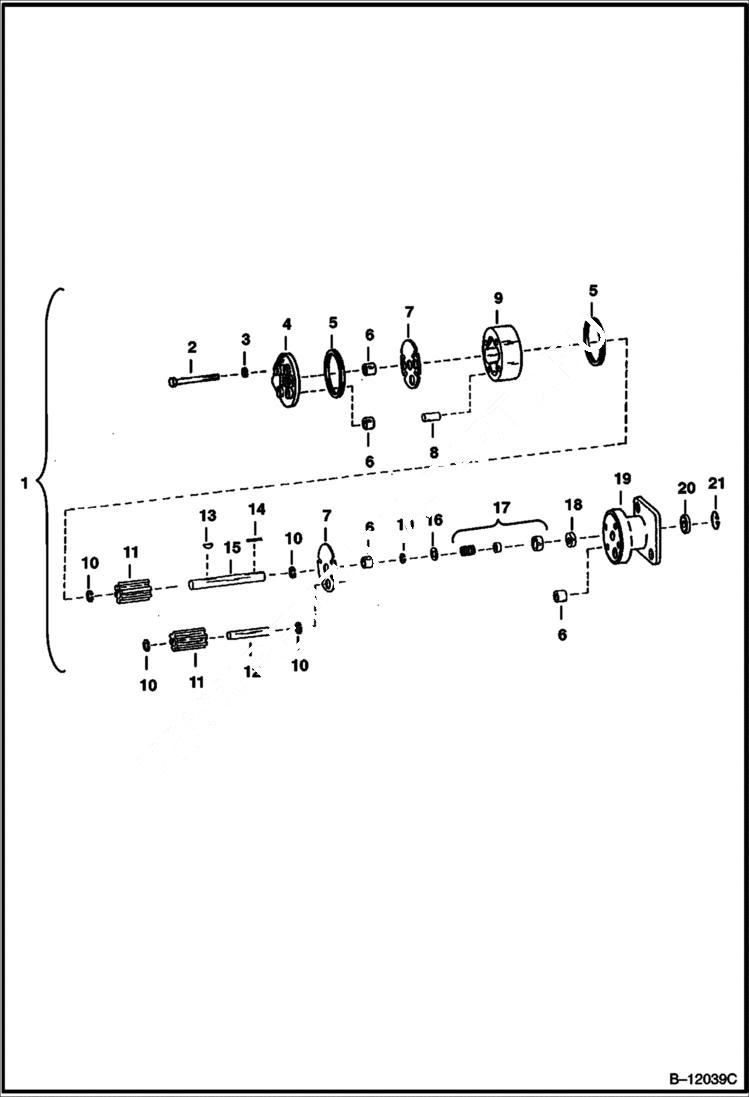

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Hydraulic Motor) (72 Padded 0549) (72 Smooth 0632) Loader

1

6673030

MOTOR

2

CAP SCREW NLA - Was 6648720 - A

3

4E7

WASHER

4

6648716

COVER

5

25K40328

O RING 10

6

867755

BEARING Was 6519710 - D

7

867748

WEAR PLATE

8

867753

PIN, DOWEL

9

HOUSING NLA - Order Ref. 1 - Was 946247 - A

10

9J13

RING

11

GEAR NLA - Was 946243B - A

12

6631035

SHAFT

13

5J405

KEY

14

7J2104

KEY

15

6631034

SHAFT

16

867750

WASHER

17

867749

SEAL

18

867743

SEAL

19

6648715

ADAPTER

20

6648721

BEARING

21

713133

SNAP RING
