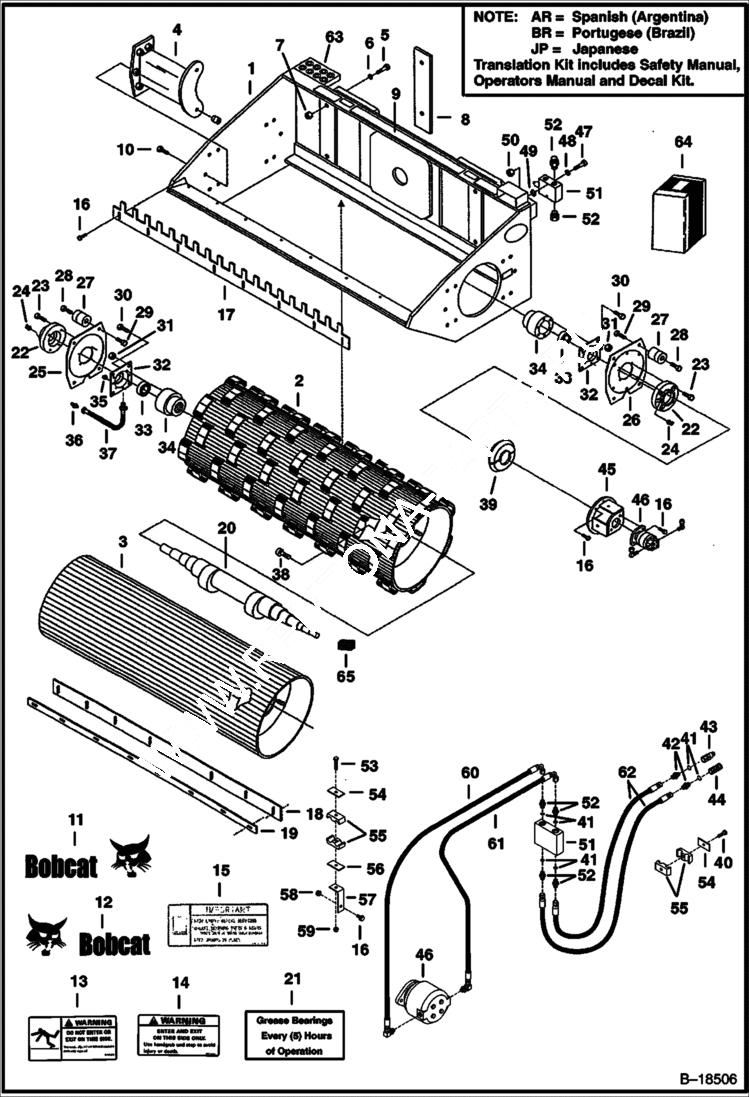

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (72 Padded 0549) (72 Smooth 0632) Loader

1

6673026

FRAME

2

6673025

ROLLER padded

3

6673038

ROLLER smooth

4

6673023

MOUNT

5

17C1040

BOLT Was 17C001032B - B

6

25E26

WASHER Was 25E000025B - B

7

59D10

NUT

8

6673022

PLATE

9

6673013

SAFETY THREAD

10

31C828

BOLT

11

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - B

12

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - B

13

6701391

DECAL, EXIT See Illustration VIBRATORY ROLLER/ NA6220

13

7130141

DECAL, EXIT See Illustration VIBRATORY ROLLER/ NA6220 - no-text

14

6594488

DECAL, WARNING enter/exit

15

6711871

DECAL, SERVICE See Illustration VIBRATORY ROLLER/ NA6220

15

7130146

DECAL, SERVICE See Illustration VIBRATORY ROLLER/ NA6220 - no-text

16

31C620

BOLT

17

6673006

SCRAPER for padded roller

18

6673039

SCRAPER for smooth roller

19

6673040

RETAINER

20

6673024

SHAFT

21

6649032

DECAL, DRUM See Illustration VIBRATORY ROLLER/ NA6220

21

7130134

DECAL, DRUM See Illustration VIBRATORY ROLLER/ NA6220 - no-text

22

6658136

BEARING, MOUNT

23

17C628

BOLT

23

4E6

WASHER

23

61D6

NUT 5

24

10H35

FITTING, GREASE 10 Was 6673020 - A

25

6673029

MOUNT RH

26

6673028

MOUNT LH

27

6648646

MOUNT

28

31C816

BOLT

29

31C820

BOLT

30

31C624

BOLT

31

92D10

NUT

32

6648649

BEARING CAP

33

6648650

BEARING, ROLLER

34

6648651

BLOCK

35

33G404

SET SCRW5

36

10H25

FITTING, GREASE 5

37

6673010

HOSE Was 6663010 - D

38

6648645

STUD

39

KIT, COUPLER See Illustration VIBRATORY ROLLER/ B12040 - 1-piece element

40

17C540

BOLT Was 6673014 - B

41

79K12

O RING 10

42

15KB1012

FITTING, HYD CONNECTOR Was 755055B - A

43

6674688

COUPLER, FF MALE straight - Was 6667808 - A

44

6672960

COUPLER, FF FEMALE straight

45

6673027

MOUNT Was 6648655 - A

46

6673030

MOTOR See Illustration VIBRATORY ROLLER/ B12039C

47

17C432

BOLT

48

25E13

WASHER 5 flat

49

4E4

WASHER lock

50

85D4

NUT 5

51

VALVE See Illustration VIBRATORY ROLLER/ B13400A

52

6653727

ADAPTER

53

17C540

BOLT

54

6592507

PLATE Was 6673015 - A

55

6592506

CLAMP Was 6673016 - A

56

6673017

PLATE

57

6673007

MOUNT

58

83D6

NUT 5

59

59D5

NUT 5

60

6673011

HOSE

61

6673012

HOSE

62

6673021

HOSE

63

6905990

STEP

64

6716297AR

KIT decal

64

6716297BR

KIT decal

64

6716297JP

KIT decal

64

6716303AR

KIT translation

64

6716303BR

KIT translation

64

6719007AR

KIT translation - W/ OM only

64

6719007BR

KIT translation - W/ OM only

65

8J3014

KEYWAY .250'' x .188'' x .875'' long
