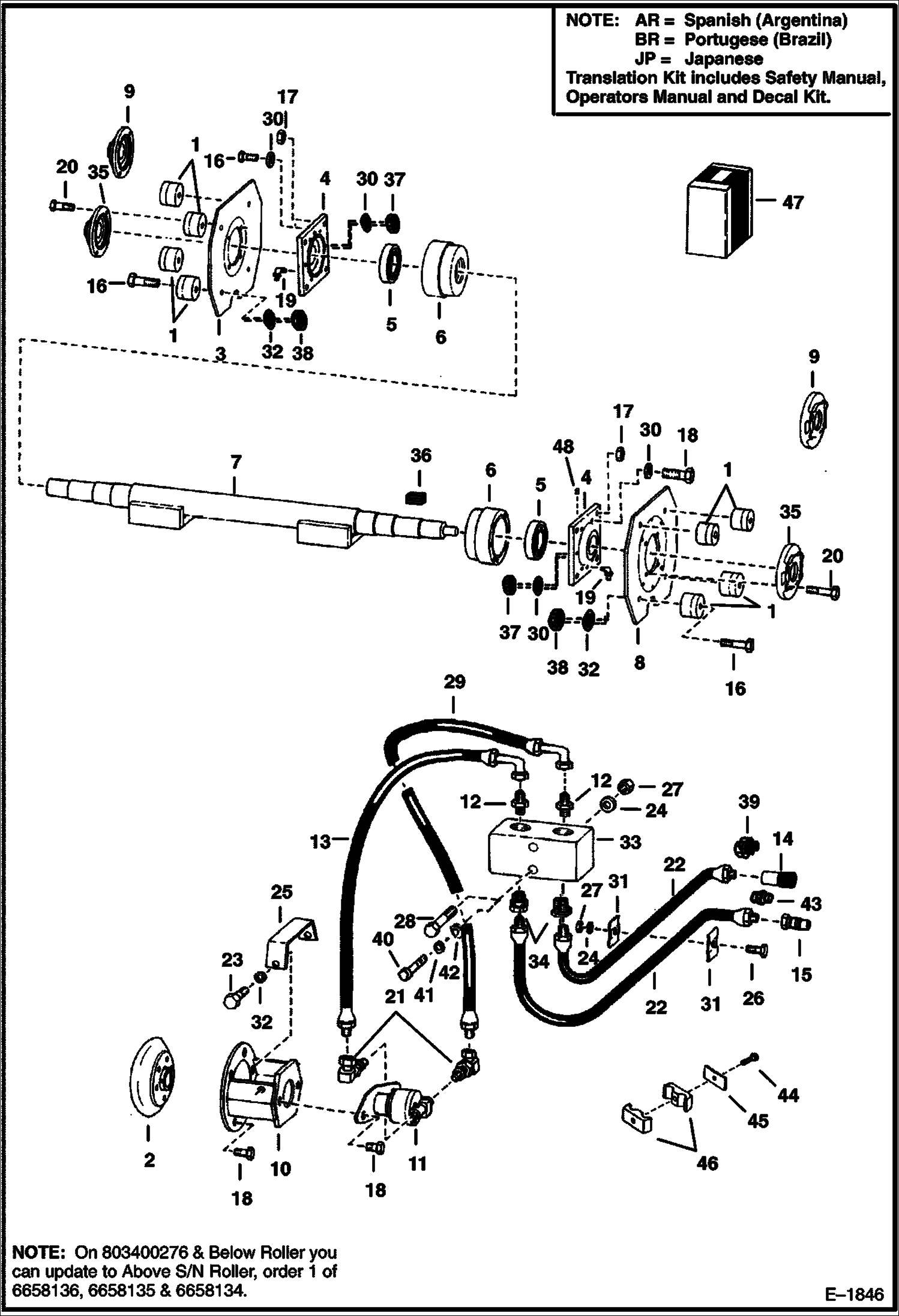

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Hydraulics & Work Group) (48 Padded 8034 & 0548) (48 Smooth 8029 & 0631) Loader

1

6648646

MOUNT rubber

2

COUPLER See Illustration VIBRATORY ROLLER/ B12040

3

6648648

BRACKET mounting

3

6648648

BRACKET

3

6669312

BRACKET

4

6648649

BEARING CAP

5

6648650

BEARING, ROLLER

6

6648651

BLOCK bearing

7

SHAFT NLA - SEE NOTE - Was 6648652 - A

7

SHAFT NLA - Order 6669311 - Was 6658134 - A

7

6669311

SHAFT

8

6648653

BRACKET L.H. mtg.

8

6658135

BRACKET L.H. mtg.

9

6648654

HOLDER link belt - W/bearing - 1.9375

9

6648654

HOLDER link belt - W/bearing - R.H. Only

10

6673027

MOUNT motor - Was 6648655 - A

11

6648663

MOTOR See Illustration VIBRATORY ROLLER/ B12039B

12

6653727

ADAPTER Was 6648661 - A

13

6648657

HOSE

14

6598756

QUICK COUPLER Female - Pad Drum Roller

14

6598756

QUICK COUPLER Smooth Drum Roller

14

6598758

COUPLER, POPPET FEMALE straight - pad drum roller

14

6598758

COUPLER, POPPET FEMALE straight - smooth drum roller

14

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

15

6598755

QUICK COUPLER Male - Pad Drum Roller

15

6598755

QUICK COUPLER Smooth Drum Roller

15

6598757

COUPLER, POPPET MALE straight - pad drum roller

15

6598757

COUPLER, POPPET MALE straight - smooth drum roller

15

6674688

COUPLER, FF MALE straight - Was 6667808 - A

15

6679841

SEAL Was 6672026 - A

16

35C816

BOLT Was 17C000828B - B

17

60D10

NUT Was 92D000010B - B

18

35C620

BOLT 5 Was 17C000620B - B

19

11H25

FITTING10

20

17C840

BOLT 1/2'' x 2-1/2''

20

17C628

BOLT 3/8'' x 1-3/4''

21

6648660

ELBOW

22

6648659

HOSE Pad Drum Roller

22

6648659

HOSE smooth drum roller

22

6652537

HOSE Pad Drum Roller

22

6652537

HOSE smooth drum roller

22

6673021

HOSE Pad Drum Roller

22

6673021

HOSE smooth drum roller

23

35C512

BOLT Was 17C000508B - B

24

4E5

WASHER

25

6648669

COVER

26

17C532

BOLT 5

27

61D5

NUT

28

17C540

BOLT 5/16'' x 2-1/2''

29

6648658

HOSE

30

4E6

WASHER

31

6660200

CLAMP Was 6648662 - A

32

4E8

WASHER

33

6649030

VALVE See Illustration VIBRATORY ROLLER/ B13400 CUSHION - WAS 6648656 - A

34

6650183

ADAPTER male o-ring boss x female pipe threads

34

6653727

ADAPTER male o-ring boss x male jic

35

6658136

BEARING, MOUNT L.H. Only - 1.4375

35

6658136

BEARING, MOUNT

35

6658136

BEARING, MOUNT L.H. & R.H.

36

8J3014

KEYWAY

37

61D6

NUT 5

38

61D8

NUT 5

39

6669284

ADAPTER, COUPLER 1/2'' female pipe thread to 1.06'' male O-ring boss - used to convert to flush face couplers

39

6668096

ADAPTER 7/8'' female to 1.06'' male O-ring boss - used to convert to flush face couplers

40

17C432

BOLT threaded into block - 1/4'' x 2''

41

4E4

WASHER lock

42

25E14

WSHR flat

43

15KB1012

FITTING, HYD CONNECTOR Use W/6673021 hose - Was 755055B - A

44

17C540

BOLT Was 6673014 - B

45

6592507

PLATE Was 6673015 - A

46

6592506

CLAMP Was 6673016 - A

47

6716297AR

KIT decal - SEE NOTE

47

6716297BR

KIT decal - SEE NOTE

47

6716297JP

KIT decal - SEE NOTE

47

6716303AR

KIT translation - SEE NOTE

47

6716303BR

KIT translation - SEE NOTE

47

6719007AR

KIT translation - W/Op manual only

47

6719007BR

KIT translation - W/Op manual only

48

33G608

SCREW
