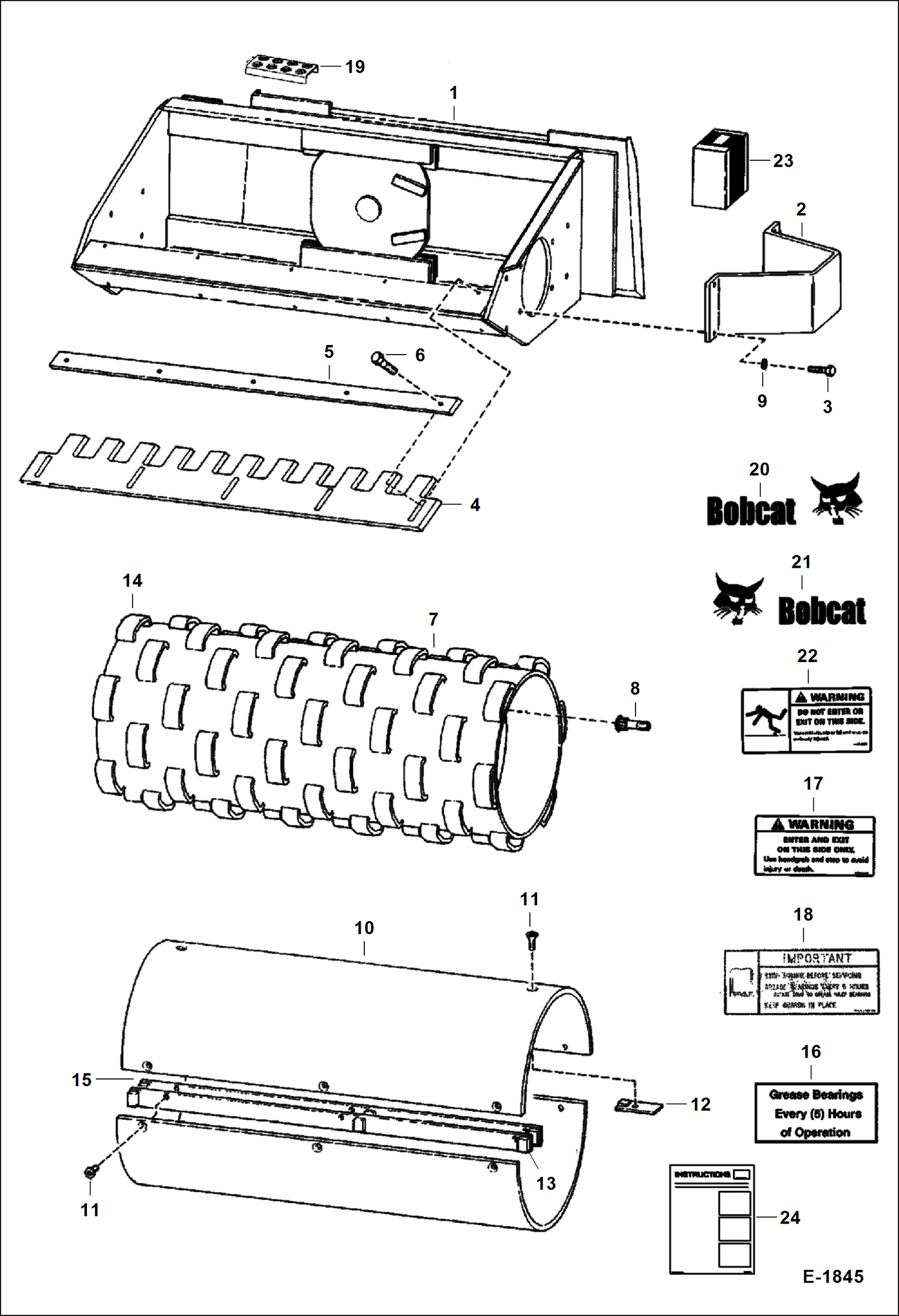

Запчасти Bobcat VIBRATORY ROLLER VIBRATORY ROLLER (Frame & Roller) (48 Padded 8034 & 0548) (48 Smooth 8029 & 0631) Loader

1

6648641

FRAME

2

6648666

COVER motor

3

35C616

BOLT 5 Was 17C000616B - B

4

6648642

SCRAPER metal

4

6648667

SCRAPER rubber

5

6648643

RETAINER

6

17C628

BOLT Was 17C-623 - B

7

6648644

ROLLER DRUM with pads

7

6648668

ROLLER DRUM without pads

8

6648645

STUD

9

4E6

WASHER

10

KIT, SMOOTH SHELL W/6649036 shells (2), Ref. 4, 11-13, 15 & 24 - does not have notches in sides of shells - Was 7137311 - A

10

KIT, SMOOTH SHELL W/7150431 shells (2), Ref. 4, 11-13, 15 & 24 - has notches in sides of shells - Was 7150433 - A

10

6649036

SHELL does not have notches in sides of shell

10

7150431

SHELL has notches in sides of shell

11

95G824

BOLT Was 6649033 - A

12

6649039

BRACKET

13

6649037

BRACKET

14

6648696

PAD

15

6649038

BRACKET

16

6649032

DECAL, DRUM See Illustration VIBRATORY ROLLER/ NA6220

16

7130134

DECAL, DRUM See Illustration VIBRATORY ROLLER/ NA6220 - no-text

17

6594488

DECAL, WARNING enter/exit

18

6711871

DECAL, SERVICE See Illustration VIBRATORY ROLLER/ NA6220

18

7130146

DECAL, SERVICE See Illustration VIBRATORY ROLLER/ NA6220 - no-text

19

6905990

STEP Was 6701943 - B

20

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - B

21

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - B

22

6701391

DECAL, EXIT See Illustration VIBRATORY ROLLER/ NA6220

22

7130141

DECAL, EXIT See Illustration VIBRATORY ROLLER/ NA6220 - no-text

23

6716297AR

KIT decal

23

6716297BR

KIT decal

23

6716297JP

KIT decal

23

6716303AR

KIT translation

23

6716303BR

KIT translation

23

6719007AR

KIT translation - W/ OM only

23

6719007BR

KIT translation - W/ OM only

24

6986732

INSTRUCTIONS
