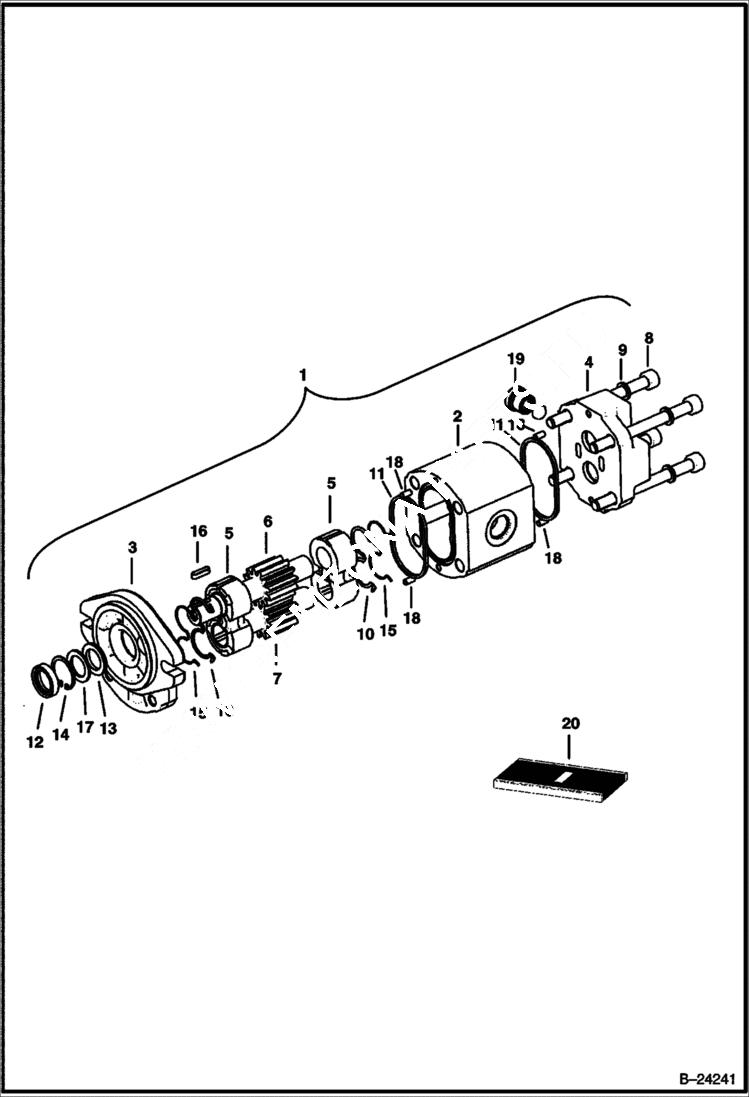

Запчасти Bobcat VIBRATORY PLOW VIBRATORY PLOW - VP12 Drive Motor Loader

1

6685989

MOTOR W/Ref. 2 - 19

2

HOUSING NSS

3

6686375

COVER

4

6686376

COVER

5

THRUST PLATE NSS

6

SHAFT NSS

7

SHAFT NSS

8

6686377

BOLT

9

6686378

WASHER

10

SEAL NSS - Order Ref. 20

11

6683386

SEAL

12

6686379

SEAL

13

6686380

SEAL

14

6679164

SNAP RING

15

BACKUP RING NSS - Order Ref. 20

16

6686381

KEY

17

6686382

WASHER

18

6679168

DOWEL PIN

19

6686374

VALVE anti-cavitation

20

6686383

SEAL KIT W/Ref. 10-13 & 15
