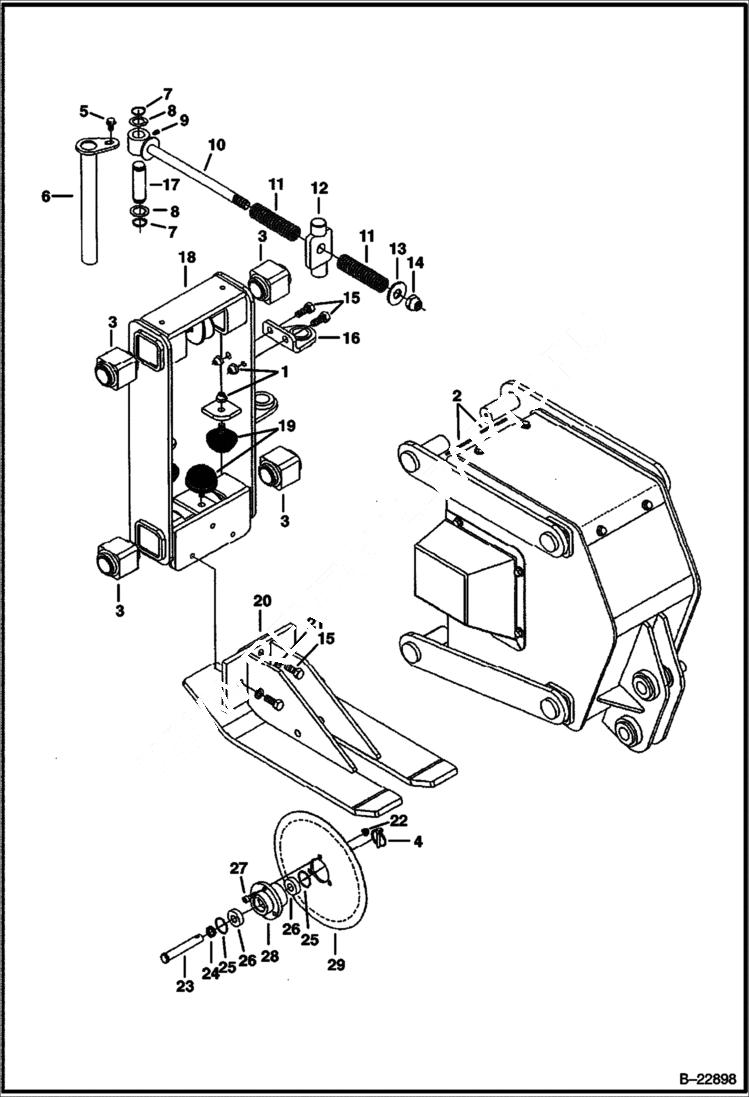

Запчасти Bobcat VIBRATORY PLOW VIBRATORY PLOW - VP12 Main Frame Loader

1

85D8

NUT, 5

2

6685993

KEY

3

6685997

BUSHING

4

6685999

PIN

5

6686003

BOLT

6

6686005

PIN

7

6686006

SNAP RING

8

6686007

WASHER thrust

9

6683974

GREASE ZERK

10

6686008

ROD

11

6686009

SPRING

12

6686010

PLATE

13

25E27

WASHER

14

59D12

NUT

15

17C820

BOLT

16

6686011

MOUNT

17

6686012

PIN

18

6686013

FRAME

19

6686014

BUMPER

20

6686015

SKID

21

4E8

WASHER

22

59D5

NUT 5

23

6686016

PIN

24

6686017

SPRING

25

6686018

RING

26

6686019

BEARING

27

6686020

BOLT shoulder

28

6686021

HUB

29

6686022

WHEEL coulter
