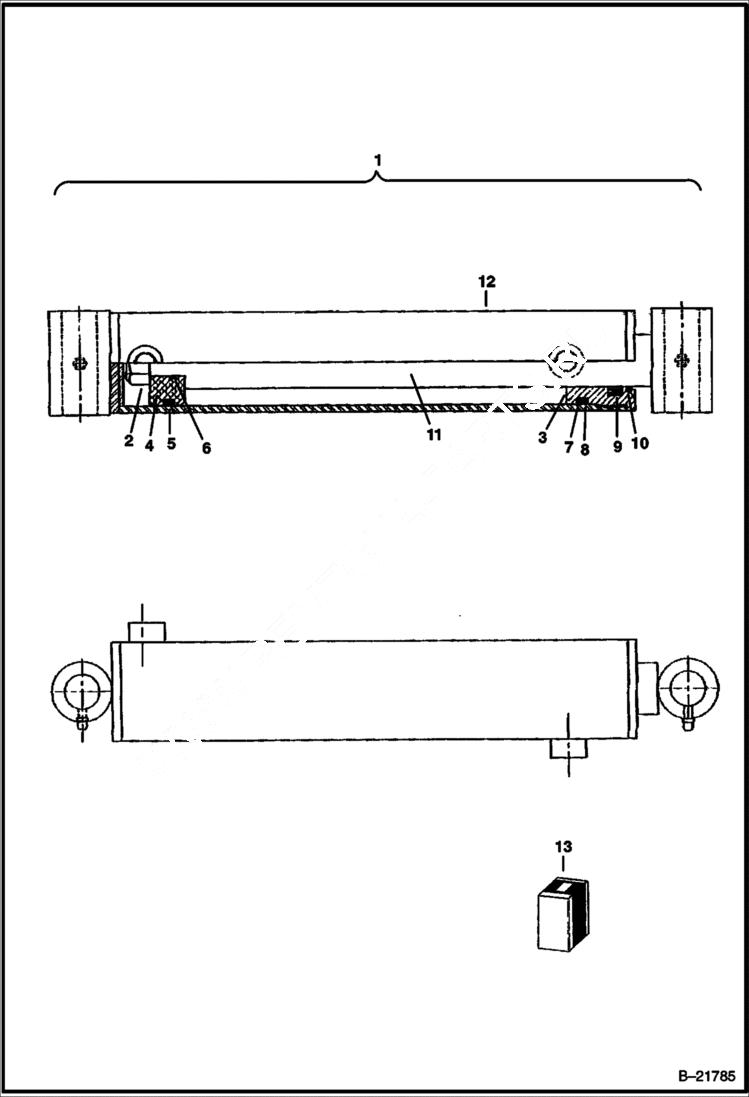

Запчасти Bobcat V-BLADE V-BLADE (Hydraulic Cylinder) (72) (84) (96) (108) Loader

1

6681979

CYLINDER W/Ref. 2-12

2

6673617

NUT Was 6673328 - A

3

6681975

HEAD

4

6674433

PISTON

5

SEAL NSS

6

O-RING NSS

7

O-RING NSS

8

BACKUP RING NSS

9

SEAL NSS

10

SEAL NSS

11

6681976

SHAFT

12

6681977

CASE

13

6681978

SEAL KIT
