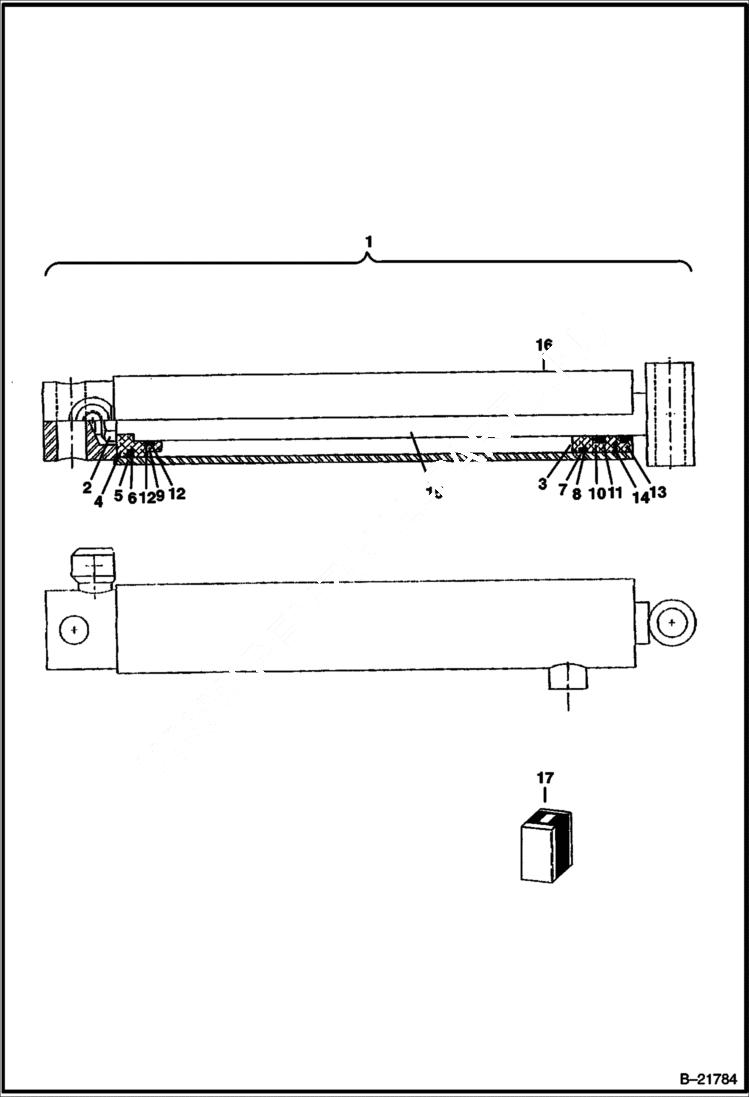

Запчасти Bobcat V-BLADE V-BLADE (Hydraulic Cylinder) (60) Loader

1

6681946

CYLINDER W/Ref. 2-16

2

6681947

NUT

3

6681948

HEAD

4

6681949

PISTON

5

SEAL NSS

6

O-RING NSS

7

O-RING NSS

8

BACKUP RING NSS

9

0-RING NSS

10

O-RING NSS

11

BACKUP RING NSS

12

BACKUP RING NSS

13

SEAL NSS

14

6681950

SNAP RING

15

6681951

ROD

16

6681952

CASE

17

6681953

SEAL KIT
