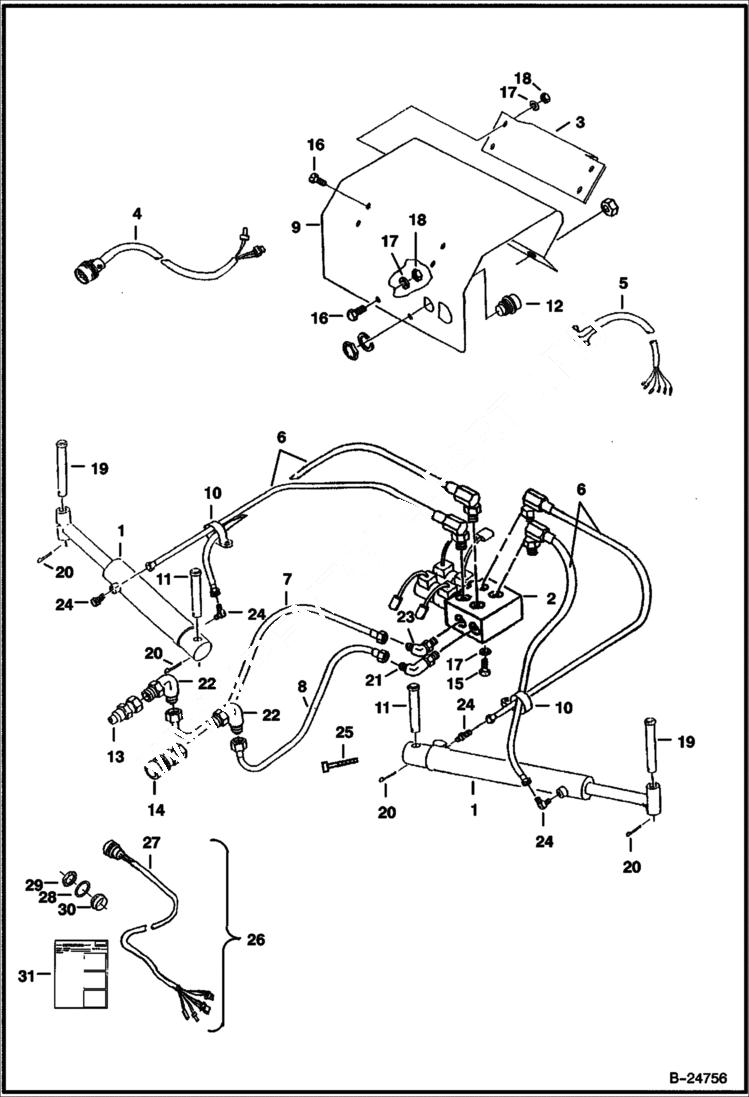

Запчасти Bobcat V-BLADE V-BLADE (Hydraulic Circuitry) (W/7 Pin Harness) (60 0843) Loader

1

6681946

CYLINDER See Illustration V-BLADE/ B21784 HYDRAULIC

2

6681546

VALVE ASSY See Illustration V-BLADE/ B21786

2

7171628

VALVE, CONTROL See Illustration V-BLADE/ NA2343

3

6678675

CONTROLLER, ACD

4

6725368

HARNESS 7-Pin

5

6906939

HARNESS valve to ACD

5

7171630

HARNESS, VALVE valve to ACD

6

6682023

HOSE

7

6682024

HOSE

8

6682025

HOSE

9

6958625

COVER

9

7179383

COVER, VALVE

10

30H80

HOSE CLAMP

11

6682021

PIN

12

6675128

CAP

13

6674688

COUPLER, FF MALE straight

14

6672960

COUPLER, FF FEMALE straight

15

17C616

BOLT 5

16

1C612

BOLT

17

4E6

WASHER

18

61D6

NUT 5

19

6682022

PIN

20

1F416

PIN Was 1F000516B - A

21

6519195

ELBOW

22

17KB1012

FITTING, HYD ELBOW

23

17KB1010

FITTING, HYD ELBOW

24

17KB0606

FITTING

25

6624289

STRAP, TIE Was 6674414 Was 6674414 - A

26

6725383

KIT 14-pin adapter harness kit - converts 7-pin V-blade to be used with 14-pin loader - W/Ref. 28 - 32

27

6719697

HARNESS 14-pin adapter

28

6664037

WASHER

29

6664036

NUT

30

6673680

RECEPTACLE, TWIST-LOC

31

6901005

INSTRUCTIONS
