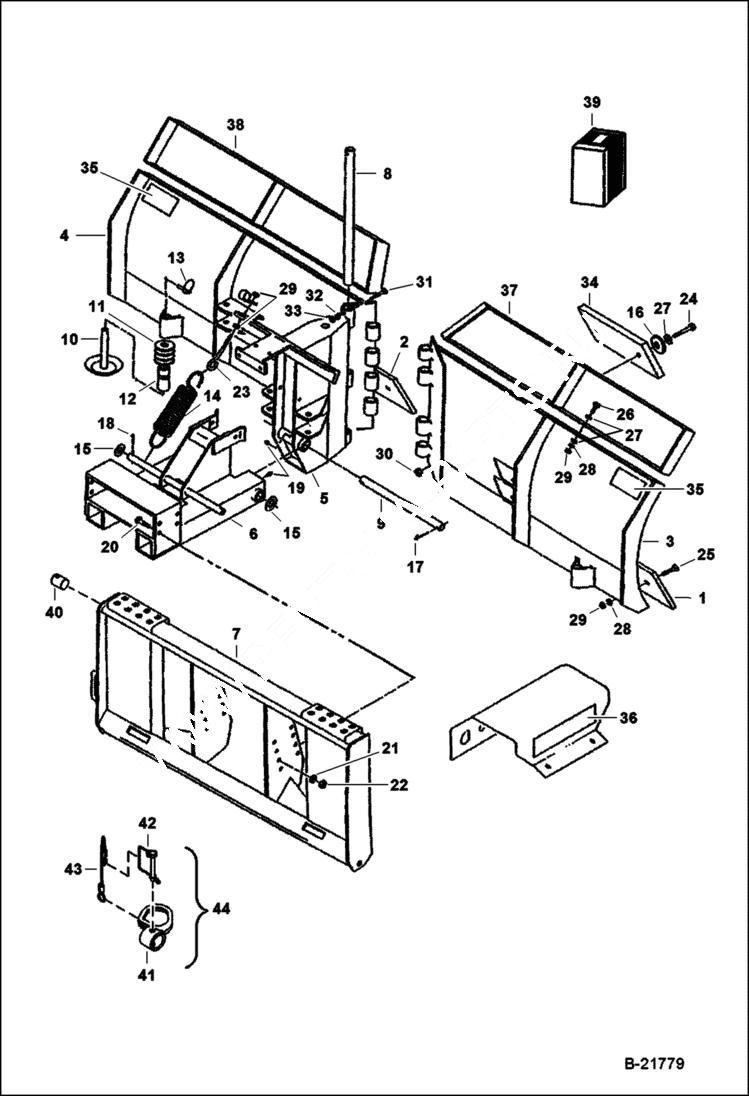

Запчасти Bobcat V-BLADE V-BLADE (Hydraulic) (60) Loader

1

6681958

CUTTING EDGE 60'' - R.H.

2

6681963

CUTTING EDGE 60'' - L.H.

3

6681989

BLADE 60'' - R.H. - w/cutting edge

4

6681994

BLADE 60'' - L.H. - w/cutting edge

5

6682017

PIVOT

6

6682018

FRAME

7

6682019

MOUNT

8

6682002

PIN

9

6682020

PIVOT PIN

10

SHOE SKID NLA - Order (2) each of 7107683 shoe skid, Ref. 13 & (36) of Ref. 11 - Was 6673610 - A

10

7107683

SKID, SHOE

11

6905346

WASHER Order 18 per shoe

12

6905348

BUSHING Use on earlier skid shoes

13

6560382

PIN, LOCK Was 6635322 - B,D

14

6682004

SPRING

15

6532519

WASHER

16

25E32

WASHER

17

1F832

COTTERPIN

18

1F624

PIN

19

10H25

FITTING, GREASE 5

20

17C1028

BOLT

21

25E26

WASHER

22

87D10

NUT

23

6687073

EYE BOLT

24

17C848

BOLT

25

39C836

PLOW BOLT

26

17C820

BOLT

27

25E22

WASHER

28

4E8

WASHER

29

61D8

NUT 5

30

59D8

NUT 5

31

17C636

BOLT

32

4E6

WASHER

33

61D6

NUT 5

34

6693476

CUTTING EDGE center rubber - Was 6682155 - A

35

6583862

DECAL, WARNING See Illustration V-BLADE/ NA6239C

35

7130132

DECAL, WARNING See Illustration V-BLADE/ NA6239C - no-text

36

6727324

DECAL, LOGO BOBCAT AND HEAD

37

6682005

EXTENSION 60'' - R.H.

38

6682010

EXTENSION 60'' - L.H.

39

6958639AR

TRANSLATION KIT

39

6958639BR

TRANSLATION KIT

39

6958640AR

DECAL KIT

39

6958640BR

DECAL KIT

39

6958640JP

DECAL KIT

40

7170300

PIN, PIVOT

41

GUIDE NSS - Order Ref. 44

42

7161559

PIN, SNAPPER

43

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

43

6558309

WIRE ROPE bulk - sold per foot

43

6558310

SLEEVE

44

7161953

GUIDE, HOSE ASSY Ref. 41-43 - if equipped
