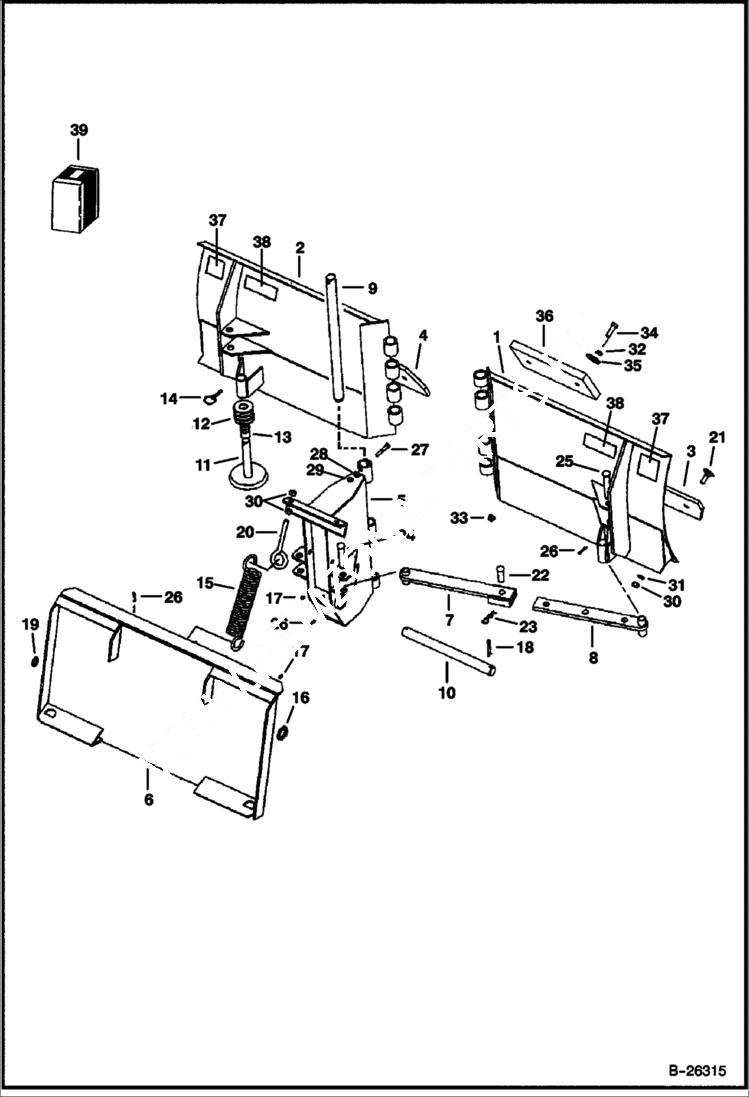

Запчасти Bobcat V-BLADE V-BLADE (Manual) (Non-Hydraulic) (60) Loader

1

6691161

BLADE RH W/cutting edge

2

6691162

BLADE LH W/cutting edge

3

6681958

CUTTING EDGE RH

4

6681963

CUTTING EDGE LH

5

6691163

PIVOT

6

6691164

MOUNT

7

6691165

STRAP

8

6691166

STRAP

9

6682002

PIN hinge

10

6682020

PIVOT PIN

11

ASSY, SKID SHOE NLA - Order (2) each of 7107683 shoe skid, Ref. 14 & (36) of Ref. 12 - Was 6673610 - A

11

7107683

SKID, SHOE

12

6905346

WASHER Order 18 per shoe

13

6905348

BUSHING Use on earlier skid shoes

14

6560382

PIN, LOCK Was 6635322 - B,D

15

6682004

SPRING

16

6532519

WASHER

17

10H25

FITTING, GREASE 5

18

1F832

COTTERPIN

19

6691167

BUSHING

20

6687073

EYE BOLT

21

39C828

BOLT

22

6691168

PIN

23

6675029

PIN

24

6682021

PIN

25

6682022

PIN

26

1F416

PIN Was 1F000516B - A

27

17C636

BOLT

28

4E6

WASHER

29

61D6

NUT 5

30

61D8

NUT 5

31

4E8

WASHER

32

25E22

WASHER

33

59D8

NUT 5

34

17C848

BOLT

35

25E32

WASHER

36

6693476

CUTTING EDGE center rubber - Was 6682155 - A

37

6583862

DECAL, WARNING See Illustration V-BLADE/ NA6239C

37

7130132

DECAL, WARNING See Illustration V-BLADE/ NA6239C - no-text

38

6727324

DECAL, LOGO BOBCAT AND HEAD

39

6958639AR

TRANSLATION KIT

39

6958639BR

TRANSLATION KIT

39

6958640AR

DECAL KIT

39

6958640BR

DECAL KIT

39

6958640JP

DECAL KIT
