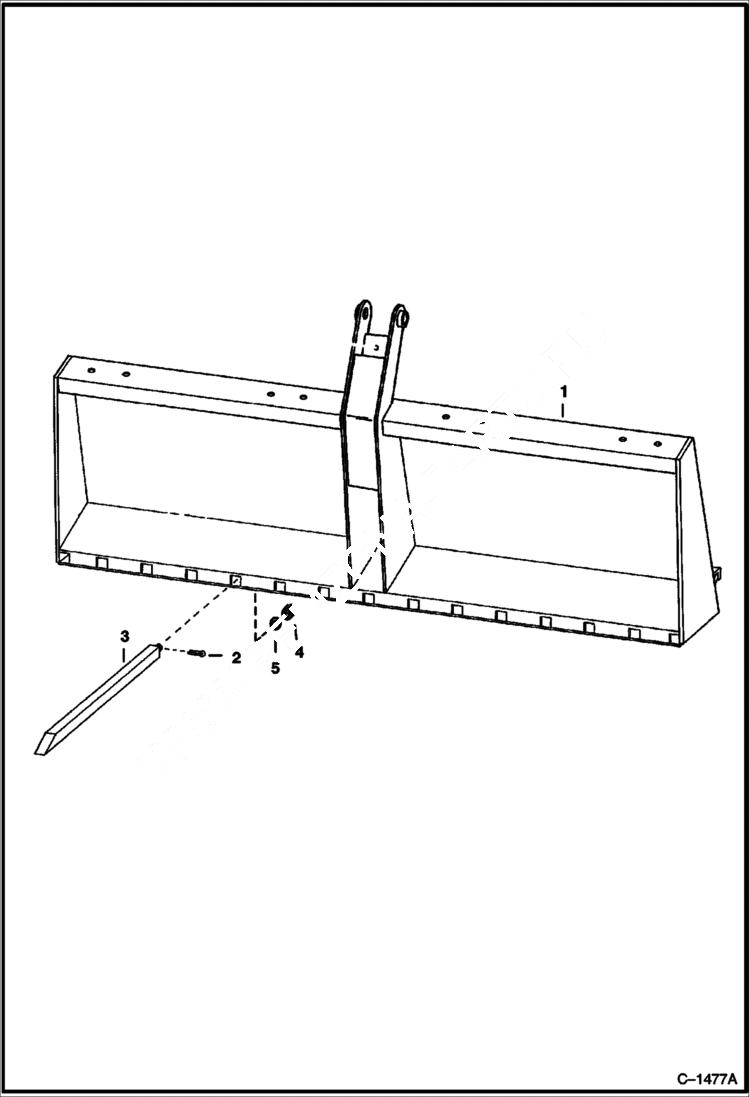

Запчасти Bobcat UTILITY FORKS UTILITY FORK Loader

1

FORK SALES - utility - 66''(1676mm)

2

1F620

PIN COTTE Use W/6702643 tooth

2

1F624

PIN Use W/6705825 tooth

3

6561665

TOOTH square - 28.24'' long x 1.00'' square - .62'' hole dia.

3

6702643

TOOTH, FORK round - 28.286 x 0.62 hole dia.

3

TOOTH NLA - Round - 32.28''L x .9'' Hole Dia. - Was 6705825 - A

3

TOOTH NLA - square tapered - 33'' long - Order 6678898 - Was 6907630 - A

3

6678898

TOOTH, KVERNELAND W/NUT square tapered - 33'' long - With Ref. 4 - Was 6907629 - A

4

6907631

NUT Use with sqare tapered tooth - Was 6717624 - A

5

25E29

WSHR Use with sqare tapered tooth
