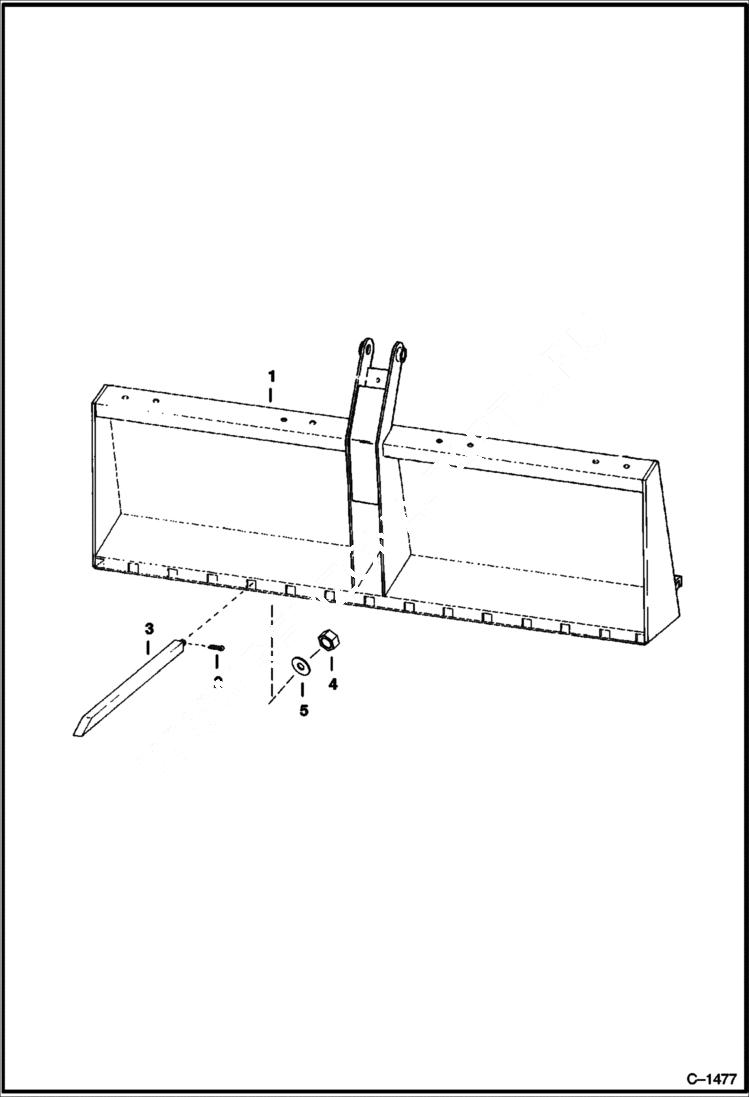

Запчасти Bobcat UTILITY FORKS UTILITY FORK - 500 Series Loader

1

FRAME SALES - 48''(1219mm)

2

1F620

PIN COTTE Use W/6702643 - Was 1F000632B - B

2

1F624

PIN Use W/6705825

3

6561665

TOOTH Square - 28.24'' long x 1.00'' square - .62'' hole dia.

3

6702643

TOOTH, FORK Round - 28.28''L x .62'' Hole Dia.

3

TOOTH NLA - Round - 32.28''L x .9'' Hole Dia. - Was 6705825 - A

3

TOOTH NLA - square tapered - 33'' long - Order 6678898 - Was 6907630 - A

3

6678898

TOOTH, KVERNELAND W/NUT square tapered - 33'' long - with Ref. 4 - Was 6907629 - A

4

6907631

NUT Use with sqare tapered tooth - Was 6717624 - A

5

25E29

WSHR Use with sqare tapered tooth
