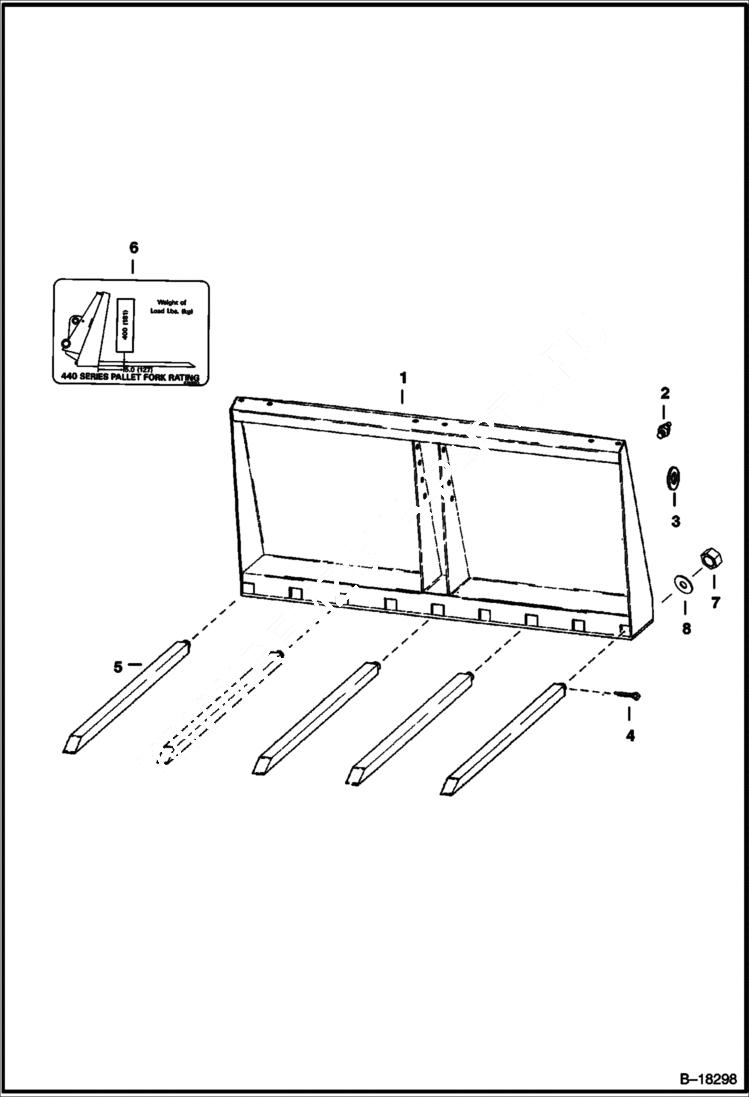

Запчасти Bobcat UTILITY FORKS UTILITY FORK - Farmboy/440B Pin Mount Loader

1

FRAME SALES - 36'' (914mm)

2

10H25

FITTING, GREASE 5

3

1990599

WIPER oil

4

1F620

PIN COTTE Use W/6702643 tooth

4

1F624

PIN Use W/6705825 tooth

5

6561665

TOOTH Square - 28.24'' long x 1.00'' square - .62'' hole dia.

5

6702643

TOOTH, FORK Round - 28.28''L x .62'' Hole Dia.

5

TOOTH NLA - Round - 32.28''L x .9'' Hole Dia. - Was 6705825 - A

5

TOOTH NLA - square tapered - 33'' long - Order 6678898 - Was 6907630 - A

5

6678898

TOOTH, KVERNELAND W/NUT square tapered - 33'' long - with Ref. 7 - Was 6907629 - A

6

6701603

DECAL Load Ratings

7

6907631

NUT Use with sqare tapered tooth - Was 6717624 - A

8

25E29

WSHR Use with sqare tapered tooth
