Запчасти Bobcat TRENCHERS TRENCHER (Side Shift Cylinder) (LT414) Loader

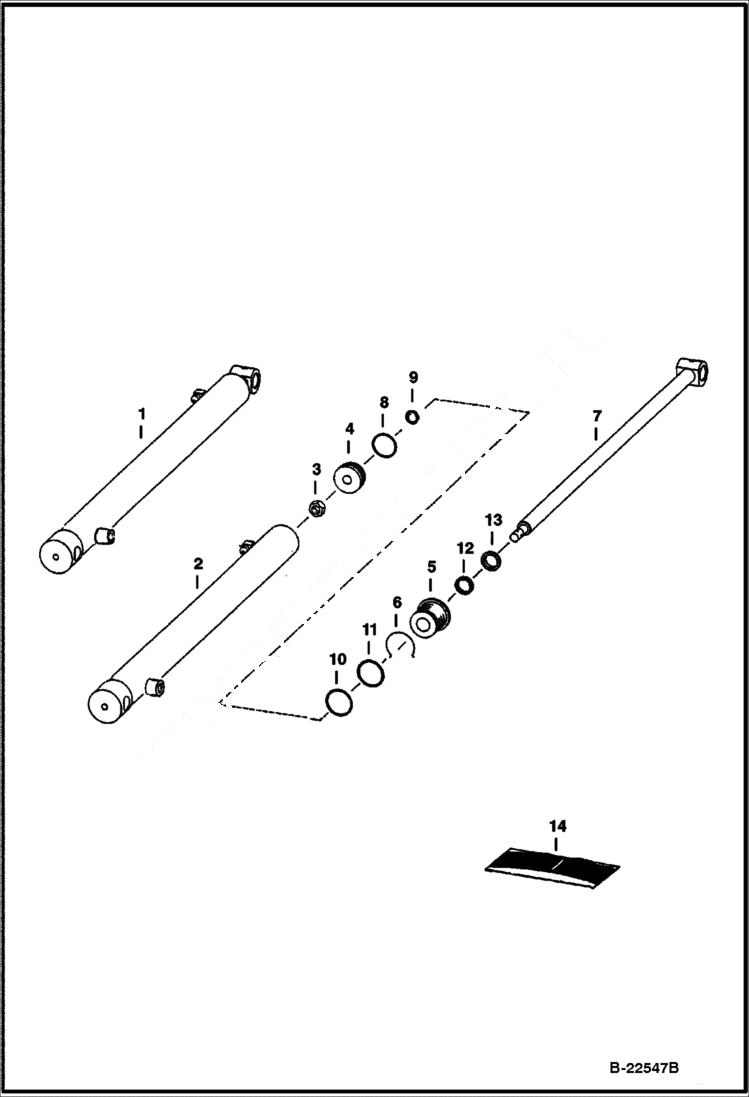

Схема запчастей Bobcat TRENCHERS - TRENCHER (Side Shift Cylinder) (LT414) Loader

Артикул

Название

Примечание

Количество

1

6684407

CYLINDER W/Ref 2 - 13

2

6685376

CASE

3

6673617

NUT Was 6684456 - A

4

6685374

PISTON

5

6685373

HEAD

6

6674266

RING, RETAINING Was 6684460 - A

7

6685375

SHAFT

8

SEAL NSS - Order Ref 14

9

O-RING NSS - Order Ref 14

10

O-RING NSS - Order Ref 14

11

BACKUP RING NSS - Order Ref 14

12

SEAL NSS - Order Ref 14

13

SEAL NSS - Order Ref 14

14

6685377

SEAL KIT

Выбрано товаров: 14
