Запчасти Bobcat TRENCHERS TRENCHER (Digging Group) (LT414) Loader

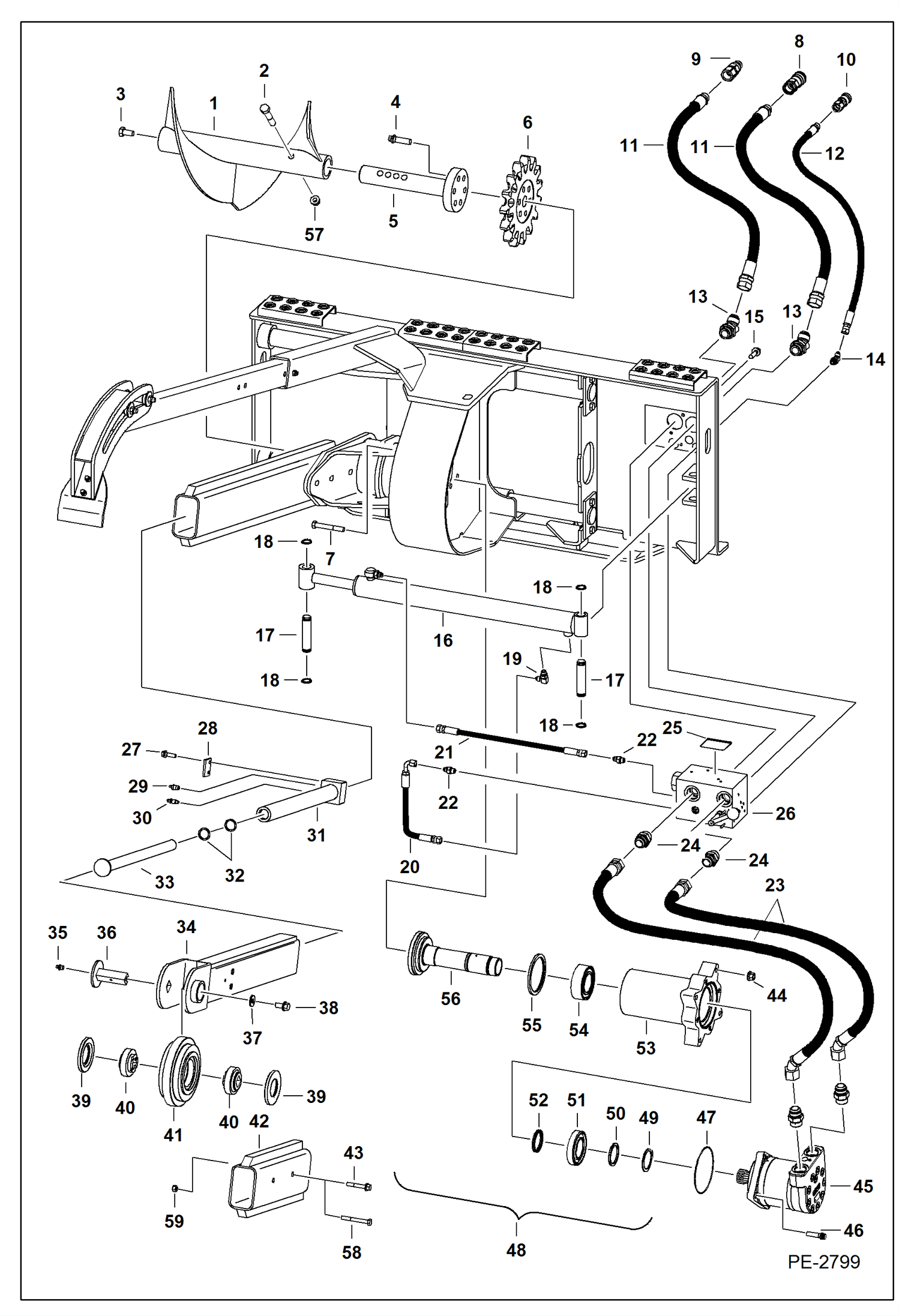

Схема запчастей Bobcat TRENCHERS - TRENCHER (Digging Group) (LT414) Loader

Артикул

Название

Примечание

Количество

1

7106554

AUGER

2

17C1056

BOLT

3

17C816

BOLT

4

93G1032

BOLT

5

7110383

SHAFT

6

7110384

SPROCKET

7

17C852

BOLT 5

8

6687636

COUPLER, FF FEMALE straight

9

6688454

COUPLER, FF MALE straight

10

6667805

COUPLER, FF FEMALE straight - case drain

11

7120689

HOSE

12

7110770

HOSE case drain

13

18KB1616

FITTING, HYD ELBOW

14

18KB0606

FITTING, HYD ELBOW

15

31C620

BOLT Was 35C620 - B

16

6684407

CYLINDER See Illustration TRENCHER/ B22547B

17

6714997

PIN

18

1320431

RING, SNAP

19

17KB0606

FITTING

20

6959183

HOSE

21

6959184

HOSE

22

15KB0606

FITTING, HYD CONNECTOR

23

7120688

HOSE

24

15KB1616

FITTING, HYD CONNECTOR

25

7120731

DECAL, SELECTOR See Illustration TRENCHER/ NA6253

25

7130159

DECAL, SELECTOR See Illustration TRENCHER/ NA6253 - no-text

26

6689392

VALVE ASSY See Illustration TRENCHER/ MS2229

27

31C620

BOLT Was 35C620 - B

28

6704189

COVER

29

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

30

6645812

SCREW, BLEED bleeder

31

6704612

CYLINDER, GREASE grease

32

6646836

SEAL

33

6959165

ROD

34

6959095

BOOM END

35

10H25

FITTING, GREASE 5 grease

36

6703308

SHAFT

37

6675521

WASHER

38

49C816

BOLT Was 35C816 - B

39

6703305

WASHER

40

6659352

BEARING, SHAFT

41

6959094

ROLLER

42

6811684

BOOM GUIDE for 5 ft. digging depth

43

84G3712

BOLT 5

44

83D8

NUT 5

45

6689610

MOTOR, HYD See Illustration TRENCHER/ B26152C

46

93GT828

BOLT Was 93G828 - B

47

25K30508

O-RING, 10

48

7110385

CARRIER ASSY W/Ref 49 - 56

49

743669

SNAP RING

50

6806562

WASHER

51

6646236

BEARING

52

6684673

SEAL pressure

53

6959225

HOUSING

54

6576155

BEARING

55

6684675

SEAL dust

56

7110577

SHAFT

57

53D10

NUT Was 83D10 - B

58

17C656

BOLT

59

85D6

NUT, 5

Выбрано товаров: 60
