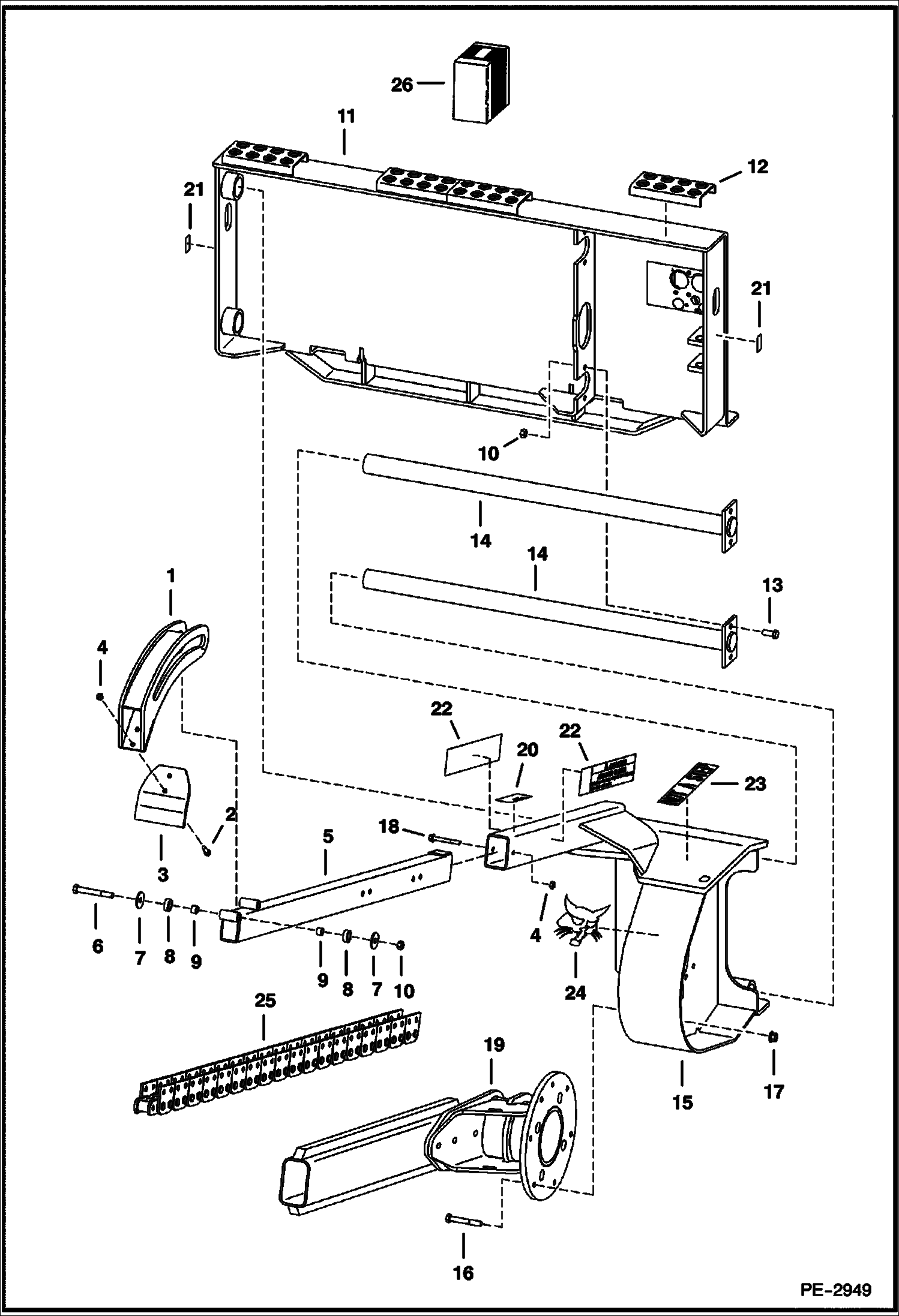

Запчасти Bobcat TRENCHERS TRENCHER (Main Frame & Boom) (LT414) Loader

1

6806979

BRACKET trench cleaner

2

17C620

BOLT

3

6806974

ADAPTER trench cleaner 6''

3

6806975

ADAPTER trench cleaner 8''

3

6806976

ADAPTER trench cleaner 10''

3

6806977

ADAPTER trench cleaner 12''

4

85D6

NUT, 5 Was 87D000006B - A

5

7110757

TUBE

6

17C864

BOLT

7

6905688

WASHER

8

6806981

ROLLER

9

6806983

BUSHING

10

85D8

NUT, 5 Was 87D8 - B

11

7106555

FRAME Bobtach

12

6905990

STEP

13

17C820

BOLT

14

6959071

ROD

15

7110755

HOUSING

16

17C856

BOLT

17

83D8

NUT 5

18

31C648

BOLT Was 35C648 - B

19

7122066

BOOM

20

6575965

DECAL, WARNING See Illustration TRENCHER/ NA6253

20

7130130

DECAL, WARNING See Illustration TRENCHER/ NA6253 - no-text

21

6815993

DECAL, LIFT tie down

22

6579914

DECAL, DANGER See Illustration TRENCHER/ NA6253

22

7130131

DECAL, DANGER See Illustration TRENCHER/ NA6253 - no-text

23

6657351

DECAL, STEP See Illustration TRENCHER/ NA6253

23

7130136

DECAL, STEP See Illustration TRENCHER/ NA6253 - no-text

24

6700191

DECAL, LOGO BOBCAT HEAD

25

6675594

CHAIN 70 pitch - double standard - for 4 ft. digging depth

25

7108604

CHAIN 84 Pitch - double standard - for 5 ft. digging depth

25

6653314

CHAIN 14 pitch - double standard - To add one foot to existing digging depth

26

6959290AR

KIT translation - see note

26

6959290BR

KIT translation - see note

26

6959293AR

KIT decal - see note

26

6959293BR

KIT decal - see note

26

6959293JP

KIT decal - see note
