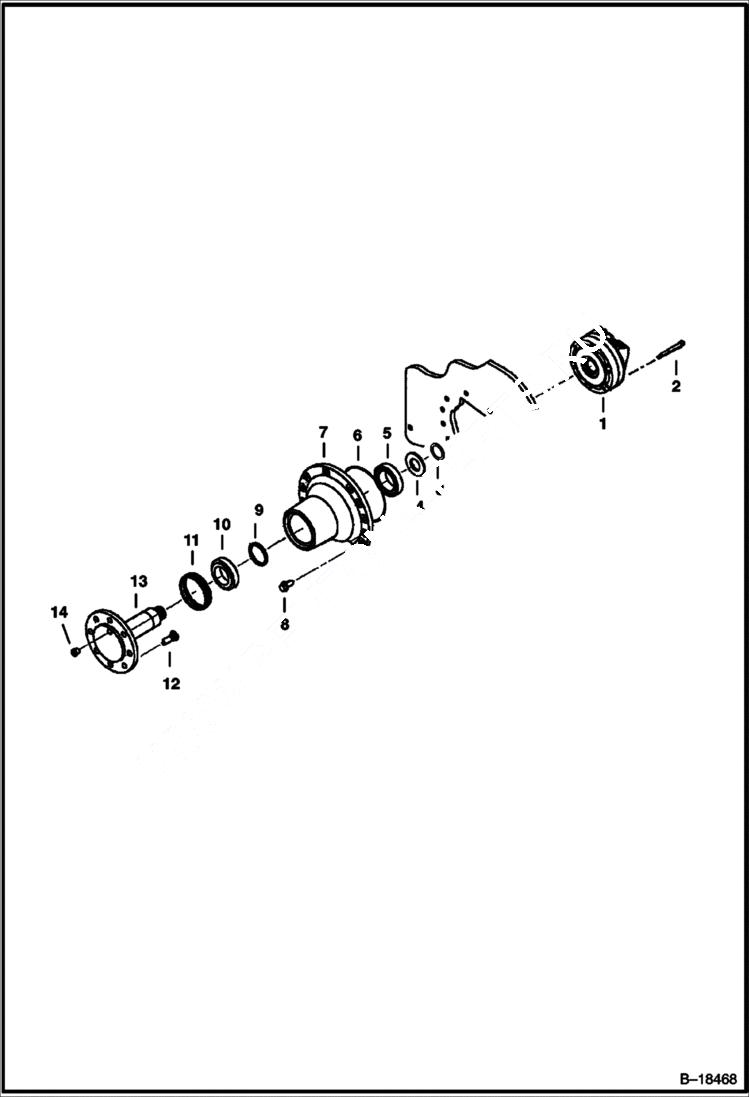

Запчасти Bobcat TRENCHERS TRENCHER (Carrier Assy) (LT405 610000101 & Above) Loader

1

MOTOR See Illustration TRENCHER/ B18103

2

3GM1290

BOLT

3

6672822

RING, RETAINER W/pin holes

3

7176088

RING, RETAINER W/O pin holes

4

6905108

THRUST WASHER

5

6671955

BEARING CONE

5

6671956

BEARING CUP

6

25K30816

O-RING Was 25K30812 - B,D

7

6905109

CARRIER bearing

8

49C1024

BOLT

9

6674123

SEAL pressure

10

6648780

BEARING CONE

10

6648782

BEARING CUP

11

6670237

SEAL

12

6592304

BOLT

13

SHAFT NLA - output - Use W/Ref. 3 (6672822 retaining ring W/pin holes) - Order 7191373 shaft & Ref. 3 (7176088 retaining ring W/O pin holes) - Was 6905110 - A

13

7191373

SHAFT output - Use W/Ref. 3 (7176088 retaining ring W/O pin holes) - Whenever the shaft is replaced or removed, Also Order Ref. 3 (7176088 retaining ring W/O pin holes)

14

90K3

PLUG Was 90KV3 - D
