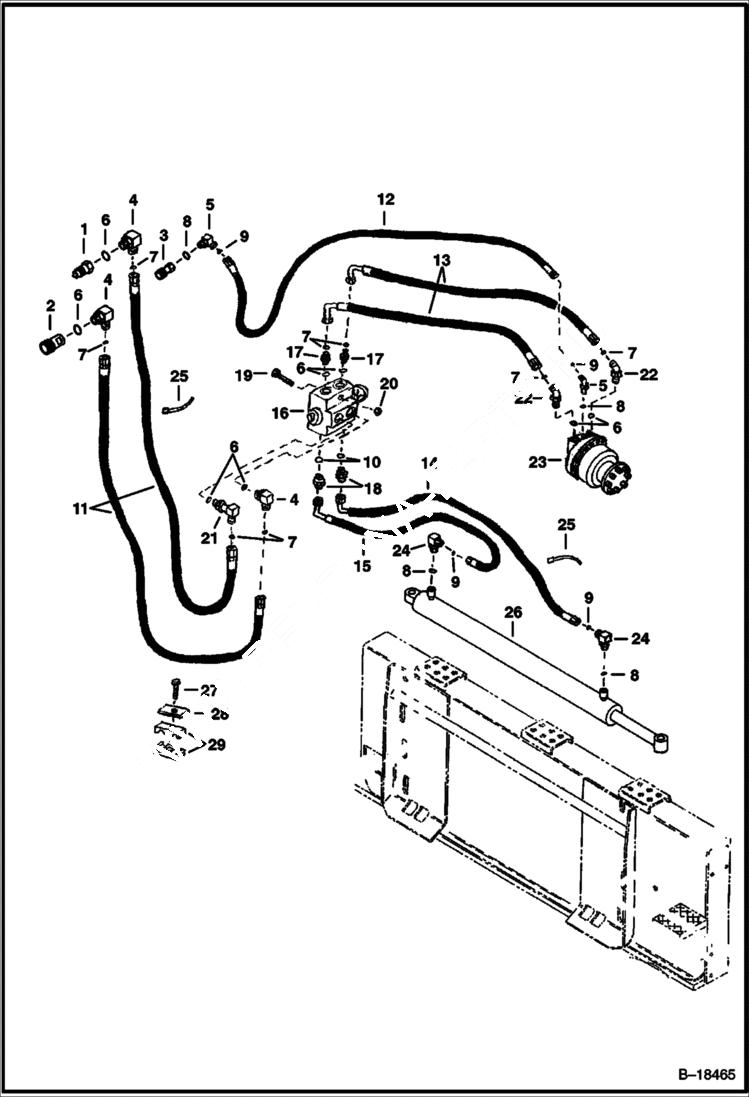

Запчасти Bobcat TRENCHERS TRENCHER (Hydraulic Circuitry) (LT405 610000101 & Above) Loader

1

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long - Was 6667808 - A

1

6688454

COUPLER, FF MALE straight - high flow - 83,6 mm (3.29'') long

2

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

2

6687636

COUPLER, FF FEMALE straight - high flow - Faster #3FF112-34SAE-F

3

6667805

COUPLER, FF FEMALE straight - case drain

4

17KB1212

FITTING, HYD ELBOW Was 17KN00008B - A

5

18KB0808

FTG HYD ELBOW 45 Was - 18KN00006B

6

99K12

O RING

7

97K12

O'RING flared end

8

99K8

O-RING

9

97K8

O-RING

10

79K12

O RING 10

11

6906082

HOSE

12

6906080

HOSE

13

6906083

HOSE

14

6906084

HOSE

15

6906085

HOSE

16

6662062

VALVE See Illustration TRENCHER/ TS1151C

17

15KB1212

FITTING, HYD CONNECTOR Was 15KN00008B - A

18

ADAPTER NLA - tapered boss face - Was 755054B - A

18

15KB0812

FITTING, HYD CONNECTOR flat boss face

19

35C648

BOLT

20

83D6

NUT 5

21

6716443

ELBOW

22

18KB1212

FITTING, HYD ELBOW Was 18KN00008B - A

23

CARRIER ASSY See Illustration TRENCHER/ B18468

24

17KB0808

FITTING, HYD ELBOW Was 17KN00006B - A

25

6624289

STRAP, TIE

26

CYLINDER See Illustration TRENCHER/ B18469

27

17C540

BOLT

28

6906046

PLATE

29

6906045

HOSE CLAMP
