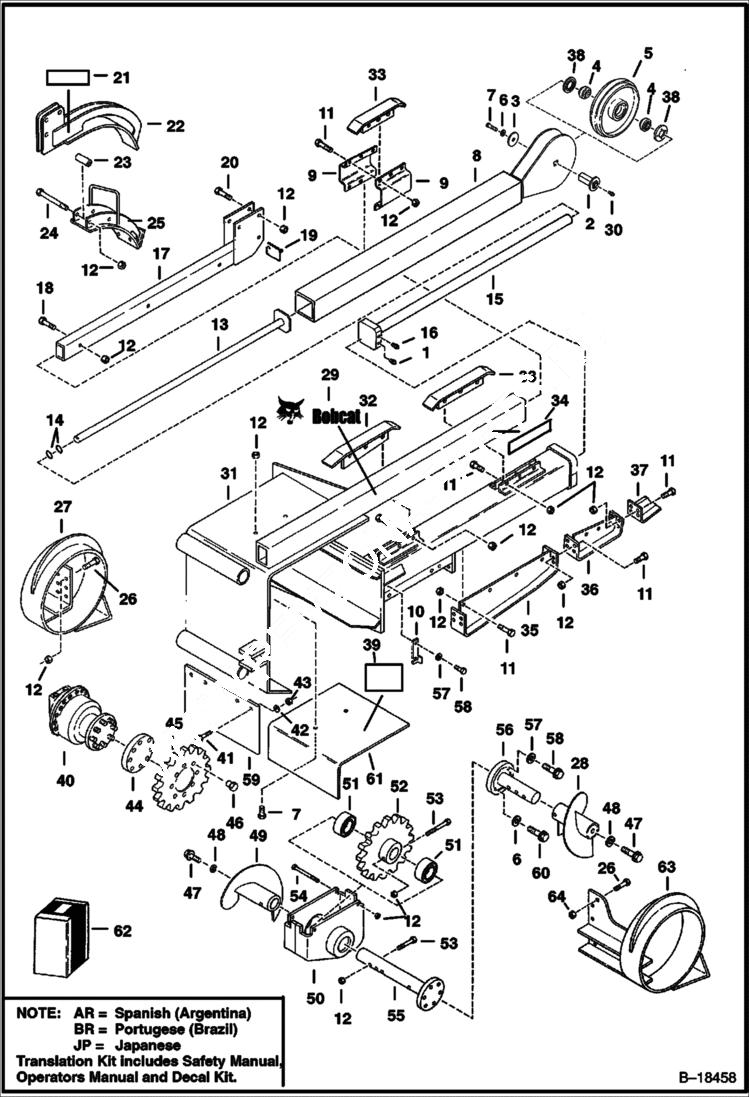

Запчасти Bobcat TRENCHERS TRENCHER (Digging Group) (LT405 610000101 & Above) Loader

1

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

2

6703308

SHAFT

3

6701198

WASHER

4

6659352

BEARING, SHAFT Was 6576140 - B

5

6703335

ROLLER

6

23E8

WASHER

7

17C816

BOLT

8

6703337

BOOM END

9

6702017

CHANNEL

10

6665168

COVER

11

17C824

BOLT 5

12

59D8

NUT 5

13

6576126

ROD

14

6646836

SEAL

15

6577465

CYLINDER grease

16

6645812

SCREW, BLEED

17

6665156

CRUMBER TUBE

18

17C840

BOLT

19

PIN NLA - Was 6654197 - A

20

17C848

BOLT

21

6575965

DECAL, WARNING See Illustration TRENCHER/ NA6253 - Do Not Put Fingers In Rollers

21

7130130

DECAL, WARNING See Illustration TRENCHER/ NA6253 - no-text

22

6700167

CRUMBER

23

6573328

ROLLER

24

17C880

BOLT

25

6574723

SHOE

26

17C832

BOLT

27

6665150

GUARD left

28

6701633

AUGER right

29

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - B

29

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - B

29

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

30

10H25

FITTING, GREASE 5

31

6905993

MAIN FRAME

32

6665153

CHAIN GUIDE back

33

6702829

GUIDE front

34

6579914

DECAL, DANGER See Illustration TRENCHER/ NA6253

34

7130131

DECAL, DANGER See Illustration TRENCHER/ NA6253 - no-text

35

6702004

CHAIN GUIDE bottom - for 3 ft. boom

36

6704173

CHAIN GUIDE for 4 ft. boom

37

6704184

CHAIN GUIDE end

38

6703305

WASHER

39

6657354

DECAL Keep Guards In Place

40

CARRIER ASSY See Illustration TRENCHER/ B18468

41

17C416

BOLT

42

25E14

WSHR

43

59D4

NUT 5

44

6665147

SPACER

45

6665148

SPROCKET

46

6906042

NUT

47

17C1224

BOLT

48

23E12

WASHER

49

6701635

AUGER left

50

6576143

HOUSING

51

6576155

BEARING

52

6700780

SPROCKET

53

17C864

BOLT

54

17C888

BOLT

55

6702149

SHAFT

56

6702148

SHAFT

57

23E6

WASHER

58

17C616

BOLT 5

59

6674144

SHIELD

60

17C816

BOLT

61

6665413

PLATE Deflector

62

6716934AR

KIT decal - SEE NOTE

62

6716934BR

KIT decal - SEE NOTE

62

6716934JP

KIT decal - SEE NOTE

62

6716933AR

KIT translation - SEE NOTE

62

6716933BR

KIT translation - SEE NOTE

63

6674143

GUARD drill holes in frame for mounting on older machines

64

87D8

NUT
