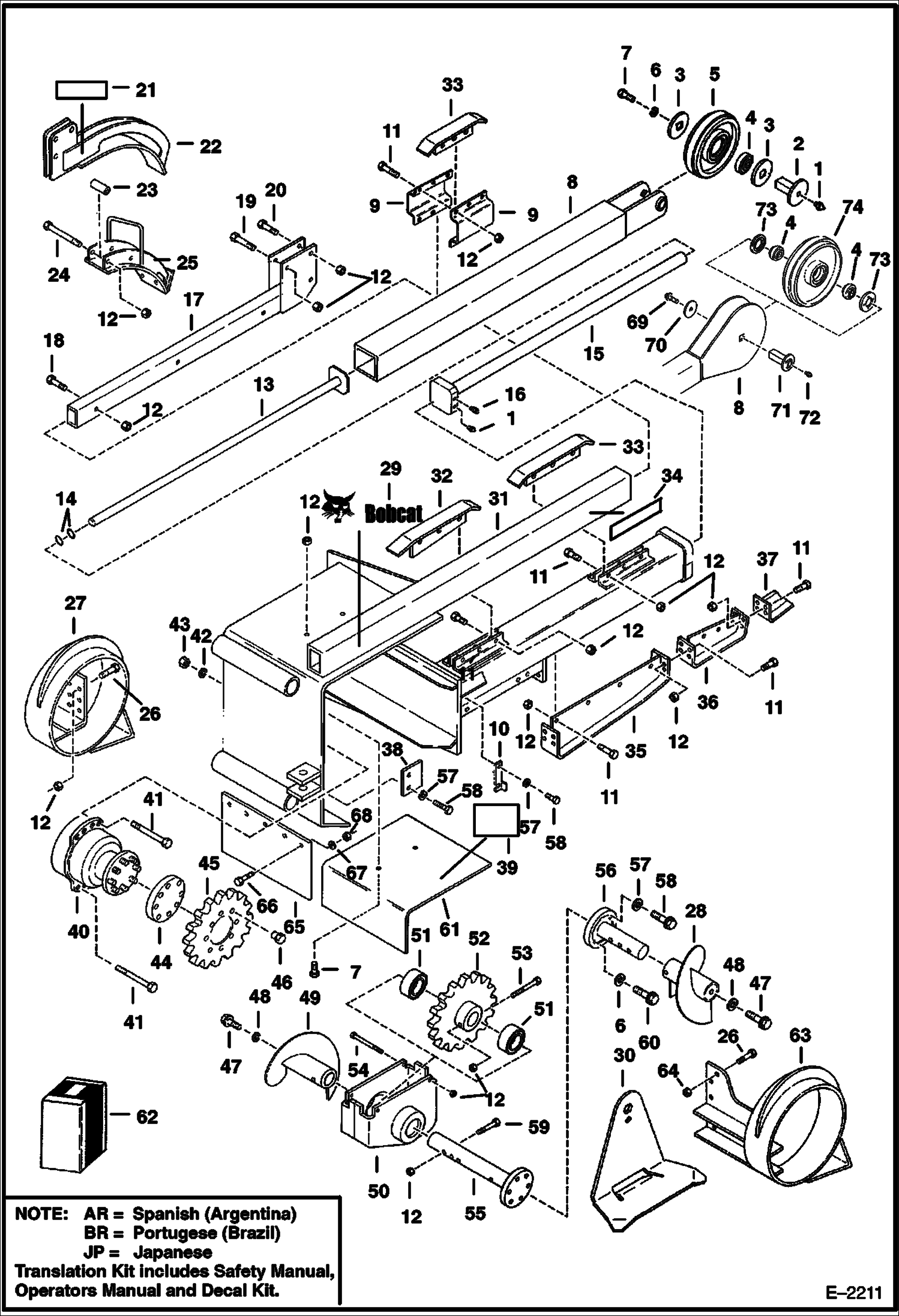

Запчасти Bobcat TRENCHERS TRENCHER (Digging Group) (LT405 705100101 & Above) Loader

1

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

2

6579811

SHAFT

3

6577290

SPACER

4

6576140

BEARING, TRENCHER Use W/Ref. 5 - single bearing

4

6659352

BEARING, SHAFT Use With Ref. 74 - double bearing

5

6576138

IDLER Use with single bearing

6

23E8

WASHER

7

17C816

BOLT

8

6703337

BOOM END

9

6702017

CHANNEL

10

6665168

COVER

11

17C824

BOLT 5

12

59D8

NUT 5

13

6576126

ROD

14

6646836

SEAL

15

6577465

CYLINDER grease

16

6645812

SCREW, BLEED

17

6665156

CRUMBER TUBE

18

17C840

BOLT

19

17C856

BOLT

20

17C848

BOLT

21

6575965

DECAL, WARNING Do Not Put Fingers In Rollers

22

6700167

CRUMBER

23

6573328

ROLLER

24

17C880

BOLT

25

6574723

SHOE

26

17C832

BOLT

27

6665150

GUARD left

28

6701633

AUGER right

29

6727324

DECAL, LOGO BOBCAT AND HEAD R.H. - Was 6714353 - B

29

6727323

DECAL, LOGO BOBCAT AND HEAD L.H.

30

STAND NLA - order Ref. 63 guard, (4) of 17C000832B & (4) of 87D000008B - Was 6665167 - A

31

6665151

MAIN FRAME

32

6665153

CHAIN GUIDE back

33

6702829

GUIDE front

34

6579914

DECAL, DANGER

35

6702004

CHAIN GUIDE bottom - for 3 foot boom

36

6704173

CHAIN GUIDE for 4 foot boom

37

6704184

CHAIN GUIDE end

38

6665152

COVER

39

6657354

DECAL Keep Guards In Place

40

6662316

MOTOR See Illustration TRENCHER/ B15176 See Illustration TRENCHER/ B18452

41

17C1080

SCREW

42

23E10

WASHER

43

61D10

NUT

44

6665147

SPACER

45

6665148

SPROCKET

46

6665149

NUT

47

17C1224

BOLT

48

23E12

WASHER

49

6701635

AUGER left

50

6576143

HOUSING

51

6576155

BEARING

52

6700780

SPROCKET

53

17C864

BOLT

54

17C888

BOLT

55

6702149

SHAFT

56

6702148

SHAFT

57

23E6

WASHER

58

17C616

BOLT 5

59

17C864

BOLT

60

17C816

BOLT

61

6665413

PLATE Deflector

62

6716934AR

KIT decal - SEE NOTE

62

6716934BR

KIT decal - SEE NOTE

62

6716934JP

KIT decal - SEE NOTE

62

6716933AR

KIT translation - SEE NOTE

62

6716933BR

KIT translation - SEE NOTE

63

6674143

GUARD drill holes in frame for mounting on older machines

64

87D8

NUT

65

6674144

SHIELD

66

17C416

BOLT

67

25E14

WSHR

68

59D4

NUT 5

69

49C816

BOLT Was 35C816 - B

70

6701198

WASHER

71

6703308

SHAFT

72

10H25

FITTING, GREASE 5

73

6703305

WASHER

74

6703335

ROLLER Use with double bearings
