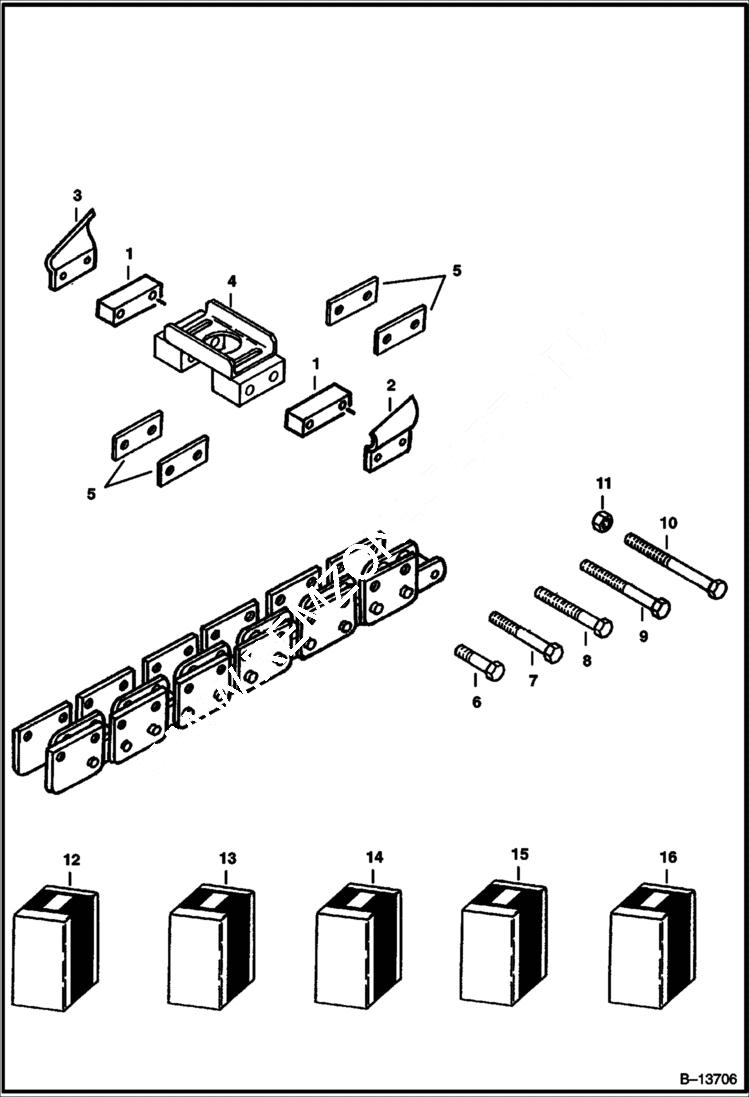

Запчасти Bobcat TRENCHERS TRENCHER (Tooth Kits) (LT305) Loader

1

6573375

SPACER 1'' (25,4mm) wide

2

6634414

TOOTH R.H.

3

6634415

TOOTH L.H.

4

6702533

SPREADER 10'' (254mm) or 12'' (304,8mm) digging width

5

6702677

SPACER Use for mounting Ref. 4 or 5 on standard chains - not needed for ABF chains. Use 2 per mounting station, one on each side

6

17C820

BOLT

7

17C836

BOLT

8

17C848

BOLT

9

17C864

BOLT

10

17C880

BOLT

11

85D8

NUT, 5

12

TOOTH KIT NLA - 10 x 72P - contains qty. 4 of Ref. 1,11 of Ref. 2 & 3, 2 of Ref. 4, 4 of Ref. 5, 28 of Ref. 6, 8 of Ref. 7 & 8 & 4 of Ref. 11 - order components - Was 6703804 - A

13

TOOTH KIT NLA - 10 x 86P - contains qty. 4 of Ref. 1,13 of Ref. 2 & 3, 2 of Ref. 4 & 4 of Ref. 5 - order components - Was 6703805 - A

14

TOOTH KIT NLA - 10 x 100P - contains qty. 6 of Ref. 1, 15 of Ref. 2, 16 of Ref. 3, 3 of Ref. 4, 6 of Ref. 5, 38 of Ref. 6, 12 of Ref. 7 & 8 & 62 of Ref. 11 - order components - Was 6703806 - A

15

TOOTH KIT NLA - 12 x 72P - contains qty. 8 of Ref. 1,12 of Ref. 2 & 3, 4 of Ref. 4, 8 of Ref. 5, 28 of Ref. 6, 8 of Ref 7, 8 & 9 & 48 of Ref. 11 - order components - Was 6703807 - A

16

TOOTH KIT NLA - 12 x 86P - contains qty. 8 of Ref. 1,14 of Ref. 2 & 3, 4 of Ref. 4, 12 of Ref. 5, 32 of Ref. 6, 8 of Ref. 7, 8 & 9 & 56 of Ref. 11 - order components - Was 6703808 - A
