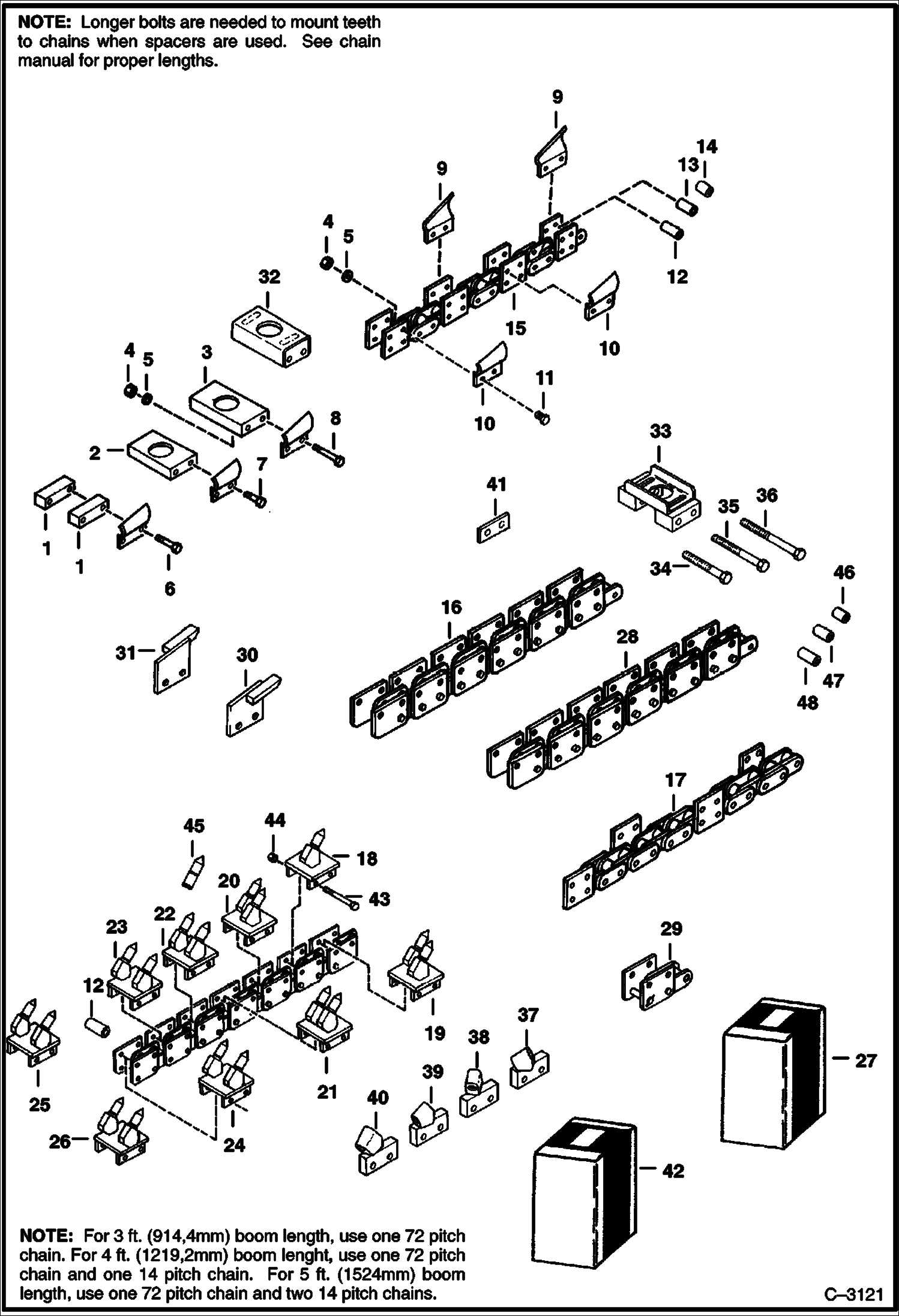

Запчасти Bobcat TRENCHERS TRENCHER (Chains & Teeth) (LT305) Loader

1

6573375

SPACER 1'' (25,4mm) wide

2

SPREADER NLA - 10'' (254mm) - Order Ref. 33 - Single Std. Chain Only

3

SPREADER NLA - 12'' (304,8mm) - Order Ref. 33 & Qty. 2 of Ref. 1 - Single Std. chain only

4

85D8

NUT, 5

5

23E8

WASHER

6

17C836

BOLT

7

17C848

BOLT

8

17C864

BOLT

9

6634415

TOOTH L.H.

10

6634414

TOOTH R.H.

11

17C820

BOLT

12

6634412

SPACER 1.78'' (45,21mm) long - Optional - See Ref. 27 - For Std. Chains

13

6634413

SPACER 1.53'' (38,86mm) long - Optional -See Ref. 27 - For Std. Chains

14

6703874

SPACER 2.00'' (50,8mm) long - Optional - See Ref. 27 - For Std. Chains

15

6651878

CHAIN 72 pitch - Single Standard

15

6657382

CHAIN 64 pitch - Single Standard

15

6651879

CHAIN 14 pitch - Single Standard

15

6657383

CHAIN 8 pitch - Single Standard

16

6651880

CHAIN 72 pitch - Double Standard

16

6651881

CHAIN 14 pitch - Double Standard

17

6651212

CHAIN 100 pitch - Alternating Side Bar Used for muddy or sticky soil conditions

18

6700677

TOOTH HOLDER center cut - Carbide - Less tip - Was 6572895 - A

19

6700678

TOOTH HOLDER 1'' (25,4mm) wide - Carbide - Less tip - Was 6572896 - A

20

6700679

TOOTH HOLDER 2'' (50,8mm) wide - Carbide - Less tip - Was 6572987 - A

21

6700680

TOOTH HOLDER 3'' (76,2mm) wide - Carbide - Less tip - Was 6572898 - A

22

6700681

TOOTH HOLDER 4'' (101,6mm) wide - Carbide - Less tip - Was 6572899 - A

23

6700682

TOOTH HOLDER 5'' (127mm) wide - Carbide - Less tip - Was 6572900 - A

24

6700683

TOOTH HOLDER 6'' (152,4mm) wide - Carbide - Less tip - Was 6572901 - A

25

6701036

TOOTH HOLDER 7'' (177,8mm) wide - Carbide - Less tip

26

6701032

TOOTH HOLDER 8'' (203,2mm) wide - Carbide - Less tip

27

SPACER KIT NLA - contains 50 pieces of Ref. 12 - Was 6579429 - A

27

6579430

SPACER KIT contains 50 pieces of Ref. 13

28

6653313

CHAIN 72 pitch - anti-backflex

28

6657385

CHAIN 64 pitch - anti-backflex

28

6653314

CHAIN 14 pitch - anti-backflex

28

6657386

CHAIN 8 pitch - anti-backflex

29

6577450

CHAIN LINK 2 pitch

30

6655439

TOOTH R.H. ground breaker

31

6655438

TOOTH L.H. ground breaker

32

SPREADER NLA - 10'' (254mm) - Used on single Std. chain only - Order Ref. 33 - Was 6701607 - A

33

6702533

SPREADER 10'' (254mm) or 12'' (304,8mm) digging width - See also Ref. 41

34

17C880

BOLT

35

17C896

BOLT

36

17C8112

BOLT

37

6701821

MOUNT

38

6701822

MOUNT

39

6701823

MOUNT

40

6701824

MOUNT

41

6702677

SPACER This spacer allows tooth mounts Ref. 18 - 26 & 33 to be used on regular chain, it is not needed on ABF Chain. Use 2 per mounting station, one on each side - See also Ref. 42

42

6702733

KIT Spacer - contains Qty. 72 of Ref. 41

43

17C680

BOLT

44

85D8

NUT, 5

45

6634442

CARBIDE TIP soft material

45

6659945

CARBIDE TIP rock and concrete

45

6659946

BIT, TOOTH CARBIDE medium / hard

46

6701395

SPACER 1.90'' (48,26mm) long - Used with ABF chain

47

6703698

SPACER 1.65'' (41,91mm) long - Used with ABF chain

48

6703699

SPACER 1.15'' (29,21mm) long - Used with ABF chain
