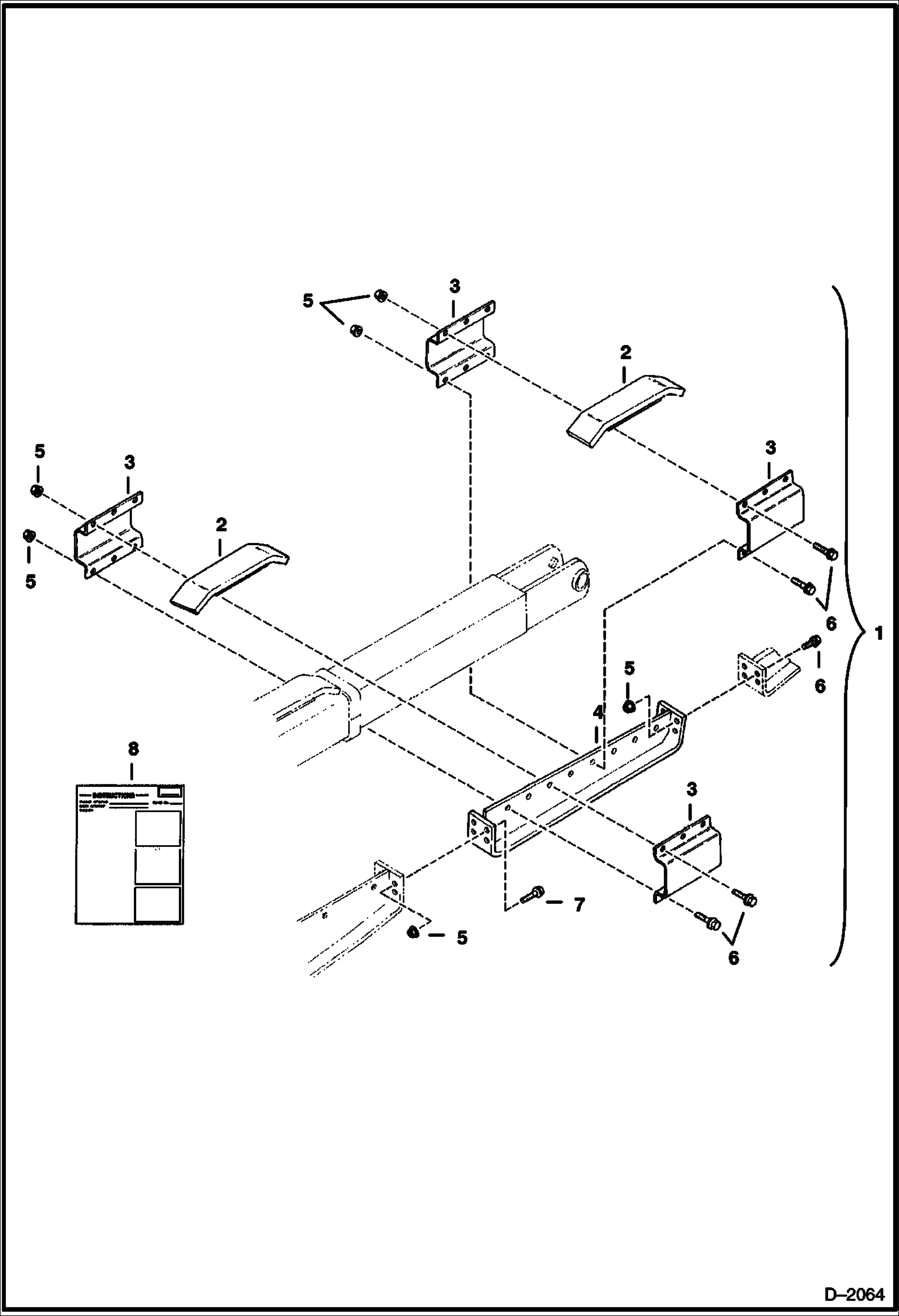

Запчасти Bobcat TRENCHERS TRENCHER (Chain Guides) (1524 mm (5)) (LT305) Loader

1

GUIDE ASSY. NLA - 5 foot (1524mm) - Order Components - Ref. 2 - 8

2

6702829

GUIDE upper - Was 6702016 - A

3

6702017

CHANNEL

4

6702010

GUIDE 5 ft. (1524mm)

5

83D8

NUT 5

6

31C824

BOLT 10

7

31C828

BOLT

8

6720411

INSTRUCTIONS
