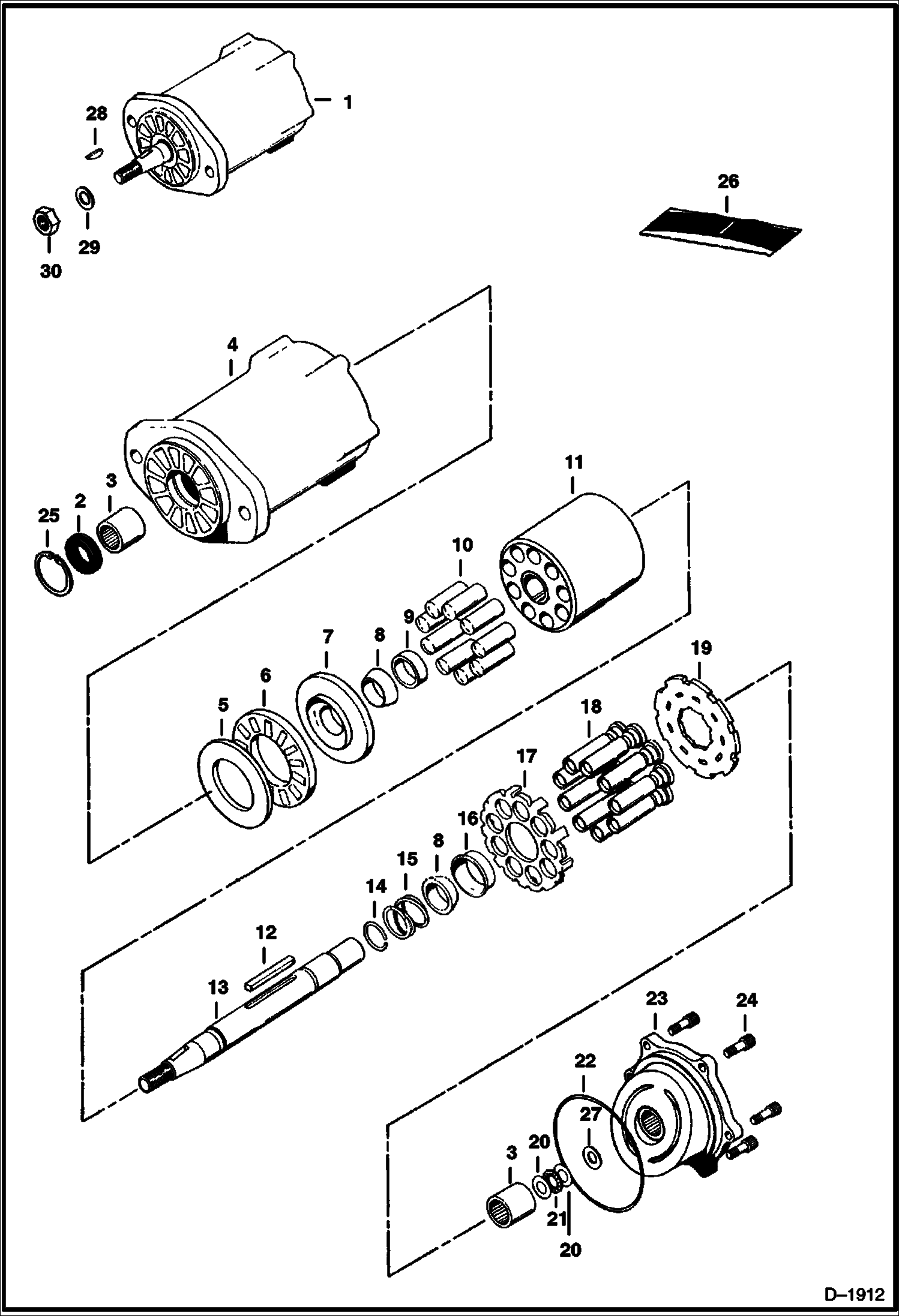

Запчасти Bobcat TRENCHERS TRENCHER (Hydraulic Motor) (Head Drive Assy 74624 DAD) (LT305) Loader

1

6647431

MOTOR Ref. 2 - 25

2

SEAL NSS

3

6651883

BEARING needle

4

6651884

HOUSING W/Ref. 3

5

6634914

RACE

6

6634915

BEARING

7

6634918

RACE

8

6634922

PIVOT

9

6634925

SPACER

10

6634936

PISTON KIT 9 Pistons

11

6634928

BLOCK piston

12

6634924

KEY

13

6651885

SHAFT drive

14

6634930

SNAP RING

15

6634934

SPRING

16

6634926

PILOT

17

6634923

SPIDER

18

6634935

PISTON KIT 9 Pistons

19

6634927

PLATE connector

20

6651886

RACE

21

6634917

BEARING

22

SEAL NSS

23

6651887

PLATE W/Ref. 3

24

17C516

BOLT

25

SNAP RING NSS

26

6651888

SEAL KIT Ref. 2, 22 & 25

27

6634916

THRUST RACE Use if end play exceeds .040''(1,02mm)

28

6J808

KEY, WOODRUFF

29

6555455

WASHER

30

62D10

NUT
