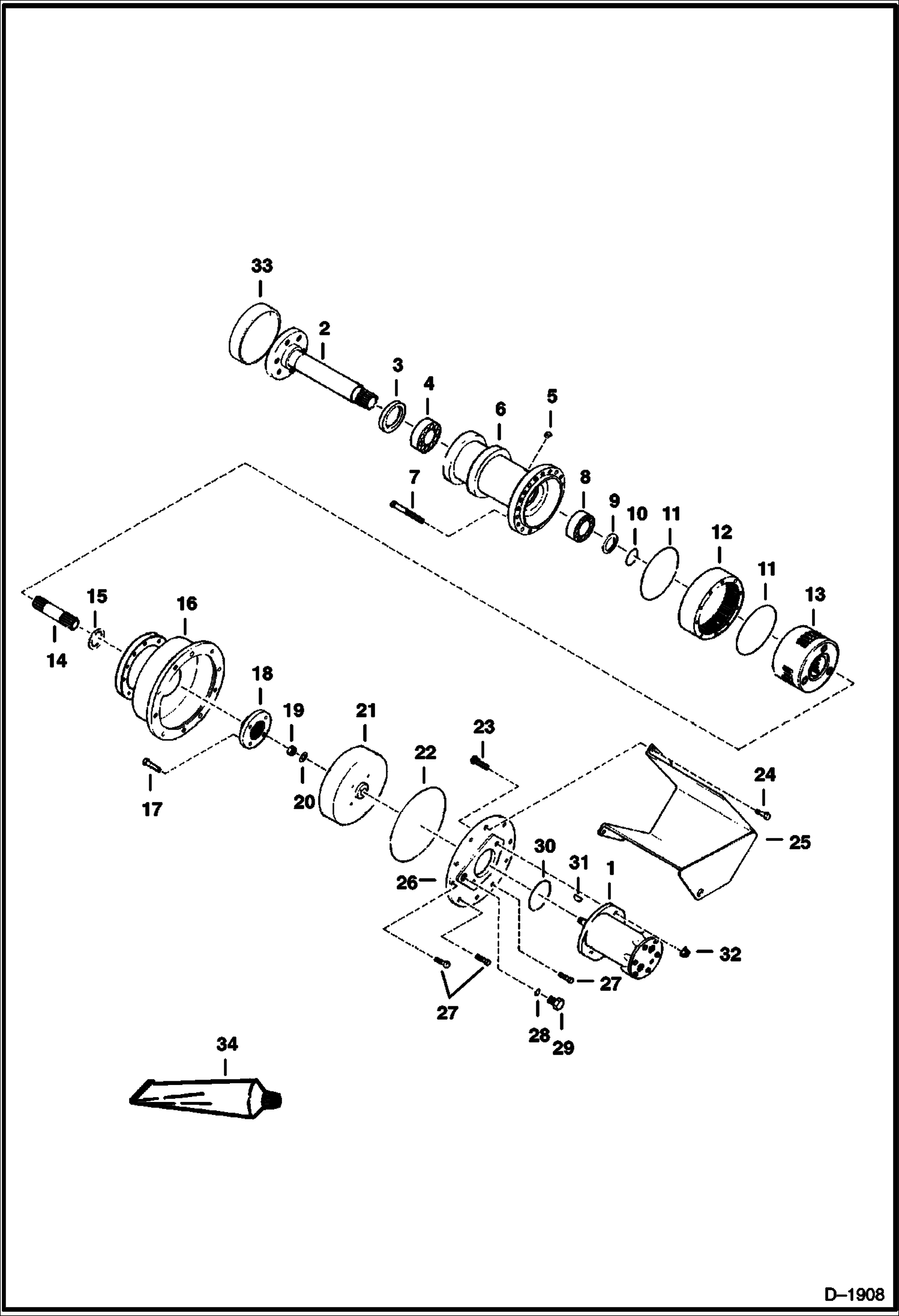

Запчасти Bobcat TRENCHERS TRENCHER (Headdrive Assembly) (LT305) Loader

1

6647431

MOTOR See Illustration TRENCHER/ D1912

2

6577432

SHAFT

3

6659493

SEAL Was 6511376 - C

4

6646916

BEARING

5

6558506

PLUG

6

6577427

BOOM PIVOT

7

17C660

BOLT

8

225825

BEARING

9

6511374

WASHER

10

6646915

SNAP RING

11

25K40700

O RING 10

12

RING GEAR NLA - Was 6577431 - A

13

CARRIER ASSY. See Illustration TRENCHER/ B12670 NLA - Was 6647430 - A

14

6577430

SHAFT

15

6511375

WASHER

16

6577423

HOUSING

17

17C628

BOLT

18

ADAPTER NLA - Was 6702526 - A

19

62D10

NUT

20

6555455

WASHER

21

6577425

FLYWHEEL

22

O-RING NLA - Use Ref. 34 - Was 25K041000B - B

23

6564741

BOLT Was 6557187 - A

24

17C622

BOLT

25

6702949

SHIELD Was 6577420 - C

26

6577421

COVER

27

17C618

BOLT

28

79K12

O RING 10

29

24K8

PLUG

30

O-RING NLA - Use Ref. 34 - Was 25K040400B - B

31

6J808

KEY, WOODRUFF

32

56D8

NUT

33

6702279

SHIELD

34

6633583

SEALANT, POLYURETHANE 300 ML
