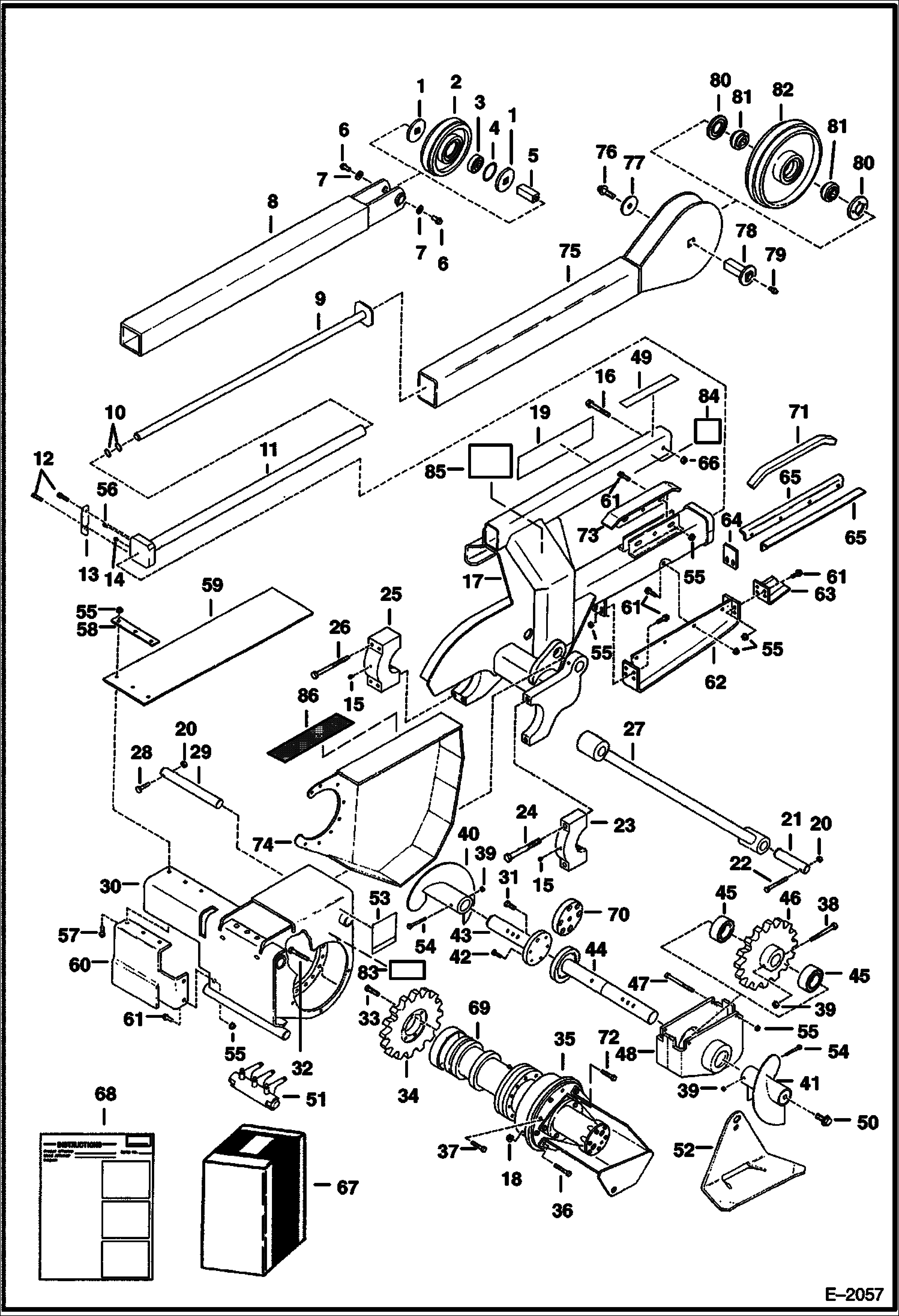

Запчасти Bobcat TRENCHERS TRENCHER (Attachment) (LT305) Loader

1

6577290

SPACER

2

6576138

IDLER

3

6576140

BEARING, TRENCHER

4

6645545

RING retaining

5

6579811

SHAFT

6

49C816

BOLT Was 35C816 - B

7

27E8

WASHER 10

8

6576119

BOOM END

9

6576126

ROD

10

6646836

SEAL

11

6577465

CYLINDER grease

12

84G3720

BOLT

13

6577464

COVER

14

6645812

SCREW, BLEED

15

10H25

FITTING, GREASE 5

16

17C856

BOLT

17

6702023

BOOM

18

83D6

NUT 5

19

6579914

DECAL, DANGER

20

85D6

NUT, 5

21

6576164

PIN

22

17C656

BOLT

23

6576114

BRACKET

24

17C1288

BOLT

25

6576115

BRACKET

26

17C880

BOLT

27

6700992

LINK Use on machines with uprights

28

17C642

BOLT

29

6577390

PIN

30

6703211

MOUNT Was 6702019 - B

31

17C816

BOLT

32

35C616

BOLT 5

33

17C1020

BOLT 5

34

6700779

SPROCKET

35

6577419

HEAD DRIVE See Illustration TRENCHER/ D1908 assy.

36

17C644

BOLT Was 17C000636B - B

37

17C636

BOLT Was 17C-646 - B

38

17C868

BOLT

39

85D8

NUT, 5

40

6701635

AUGER L.H. - 15'' (381mm) Long - Was 6576156 - A

40

6702654

AUGER L.H. - 29'' (736,6mm) Long - Was 6701634 - A

41

6701633

AUGER R.H. - 15'' (381mm) Long - Was 6576161 - A

41

6702653

AUGER R.H. - 29'' (736,6mm) Long - Was 6701636 - A

42

17C616

BOLT 5

43

6702148

SHAFT Was 6576154 - A

44

6702149

SHAFT Was 6576153 - A

45

6576155

BEARING

46

6700781

SPROCKET

47

17C888

BOLT

48

6576143

HOUSING

49

6575965

DECAL, WARNING

50

35C1216

BOLT

51

6700717

CYLINDER See Illustration TRENCHER/ B13284

52

PARKING STAND NLA - Was 6665167 - A

53

6700365

DECAL Bobcatch

54

17C860

BOLT

55

83D8

NUT 5

56

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

57

31C832

BOLT

58

6702113

STRAP

59

6704028

DIRT SHIELD Was 6702472 - D

60

6702232

DIRT SHIELD

60

6702881

DIRT SHIELD

61

31C824

BOLT 10

62

6702004

CHAIN GUIDE 3 ft. (914,4mm)

63

6704184

CHAIN GUIDE end - Was 6702013 - A

64

6702021

BRACKET weld-on

65

6702022

GUIDE weld-on

66

89D8

NUT

67

6702393

KIT chain guide - W/Qty. 10 of Ref. 55, Qty. 10 of Ref. 61, Ref. 62-65 & Ref. 68

68

INSTRUCTIONS NLA - For Ref. 67 - Was 6720486 - A

69

6702279

SHIELD shaft

70

6702150

CAP field accessory only

71

6576111

CHAIN GUIDE weld-on

72

17C640

BOLT 5 Was 17C000824B - B

73

6702829

GUIDE

74

6703208

GUIDE Auger

75

6703337

BOOM END

76

49C816

BOLT Was 35C816 - B

77

6701198

WASHER

78

6703308

SHAFT

79

10H25

FITTING, GREASE 5

80

6703305

WASHER

81

6659352

BEARING, SHAFT Was 6576140 - B

82

6703335

ROLLER

83

DECAL NLA - patent - Was 6557224 - C

84

6702658

DECAL restraint bar

85

6703694

DECAL LT305

86

6532695

SAFETY TREAD
