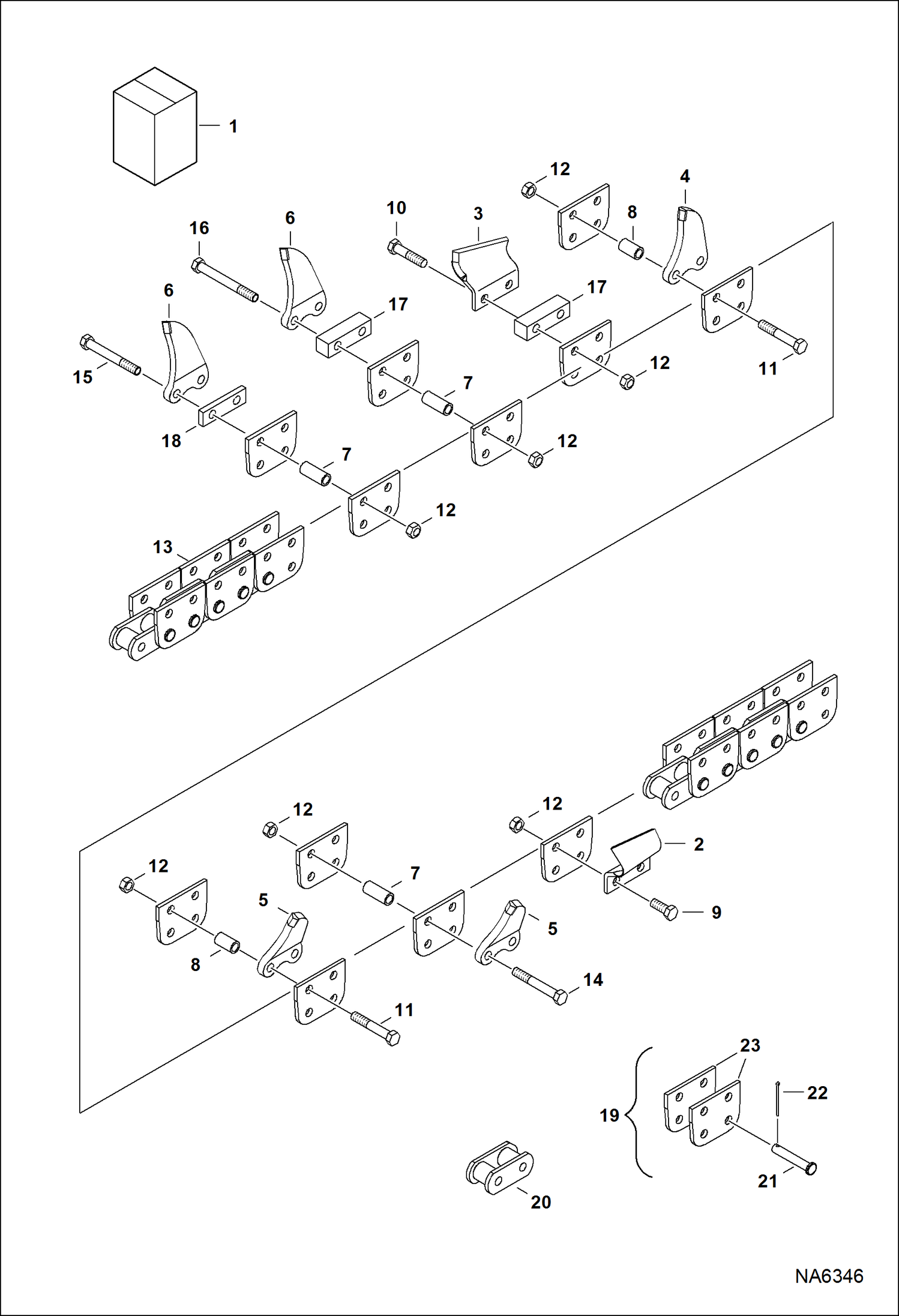

Запчасти Bobcat TRENCHERS TRENCHER (Chain&Tooth Assy)(4 Depth- 8 Wide Cup/Shark Teeth in Double Std Pattern) (LT313) (LT414) Loader

1

KIT SALES #7209867 - Ref. 2-18

2

6634415

TOOTH LH

3

6634414

TOOTH RH

4

6685159

TOOTH center shark

5

6685160

TOOTH LH shark

6

6685161

TOOTH RH shark

7

6807587

SPACER

8

6959328

SPACER

9

17C820

BOLT

10

17C836

BOLT

11

17C848

BOLT

12

85D8

NUT, 5

13

6675594

CHAIN 70 pitch - chain only

14

17C856

BOLT

15

17C864

BOLT

16

17C872

BOLT

17

6573375

SPACER

18

7209506

PLATE, SPACER

19

6678092

KIT, PIN & CONNECTOR (2) each of Ref. 21 & 23

20

6678093

LINK, ROLLER

21

6678094

PIN 73 mm (2.875'') long - W/Ref. 22

22

6678095

PIN, COTTER

23

PLATE, SIDEBAR NSS
