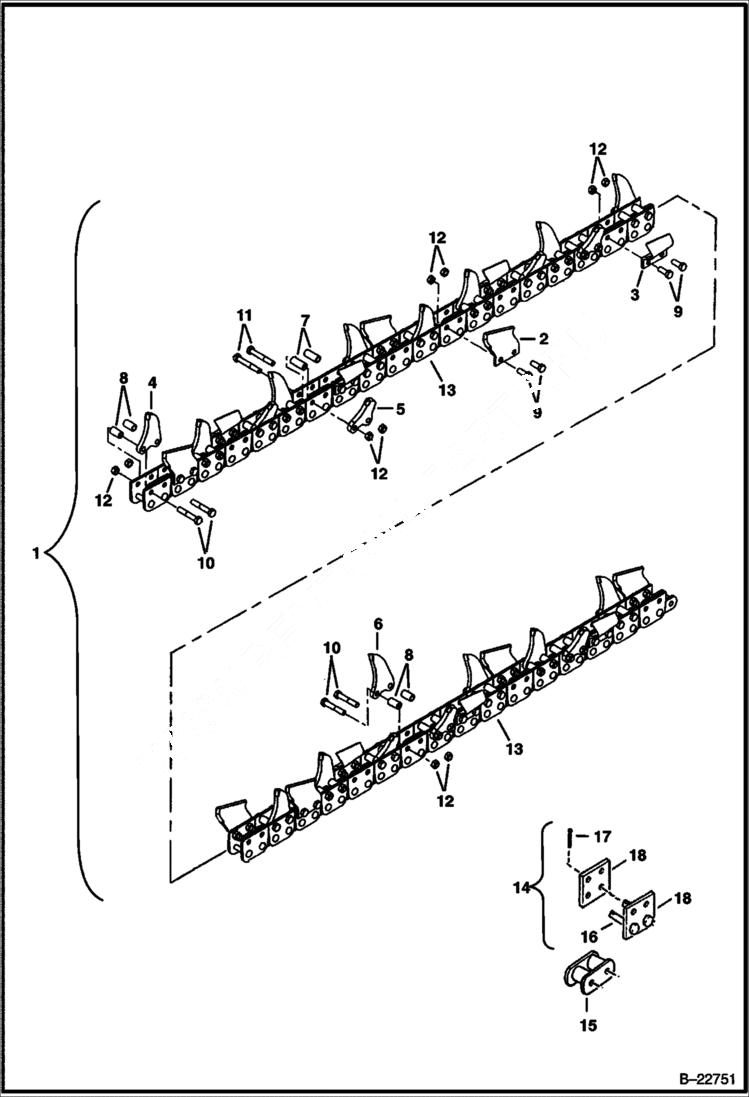

Запчасти Bobcat TRENCHERS TRENCHER (Chain&Tooth Assy)(3 Depth- 6 Wide Cup/Shark Teeth in Double Std Pattern) (LT313) Loader

1

KIT SALES #7100638 - Ref. 2-13

2

6634415

TOOTH LH

3

6634414

TOOTH RH

4

6685159

TOOTH center shark

5

6685160

TOOTH LH shark

6

6685161

TOOTH RH shark

7

6807587

SPACER

8

6959328

SPACER

9

17C820

BOLT

10

17C844

BOLT

11

17C852

BOLT 5

12

85D8

NUT, 5

13

6970071

CHAIN 60 pitch - chain only

14

6678092

KIT, PIN & CONNECTOR (2) each of Ref. 16 & 18

15

6678093

LINK, ROLLER

16

6678094

PIN 73 mm (2.875'') long - W/Ref. 17

17

6678095

PIN, COTTER

18

PLATE, SIDEBAR NSS
