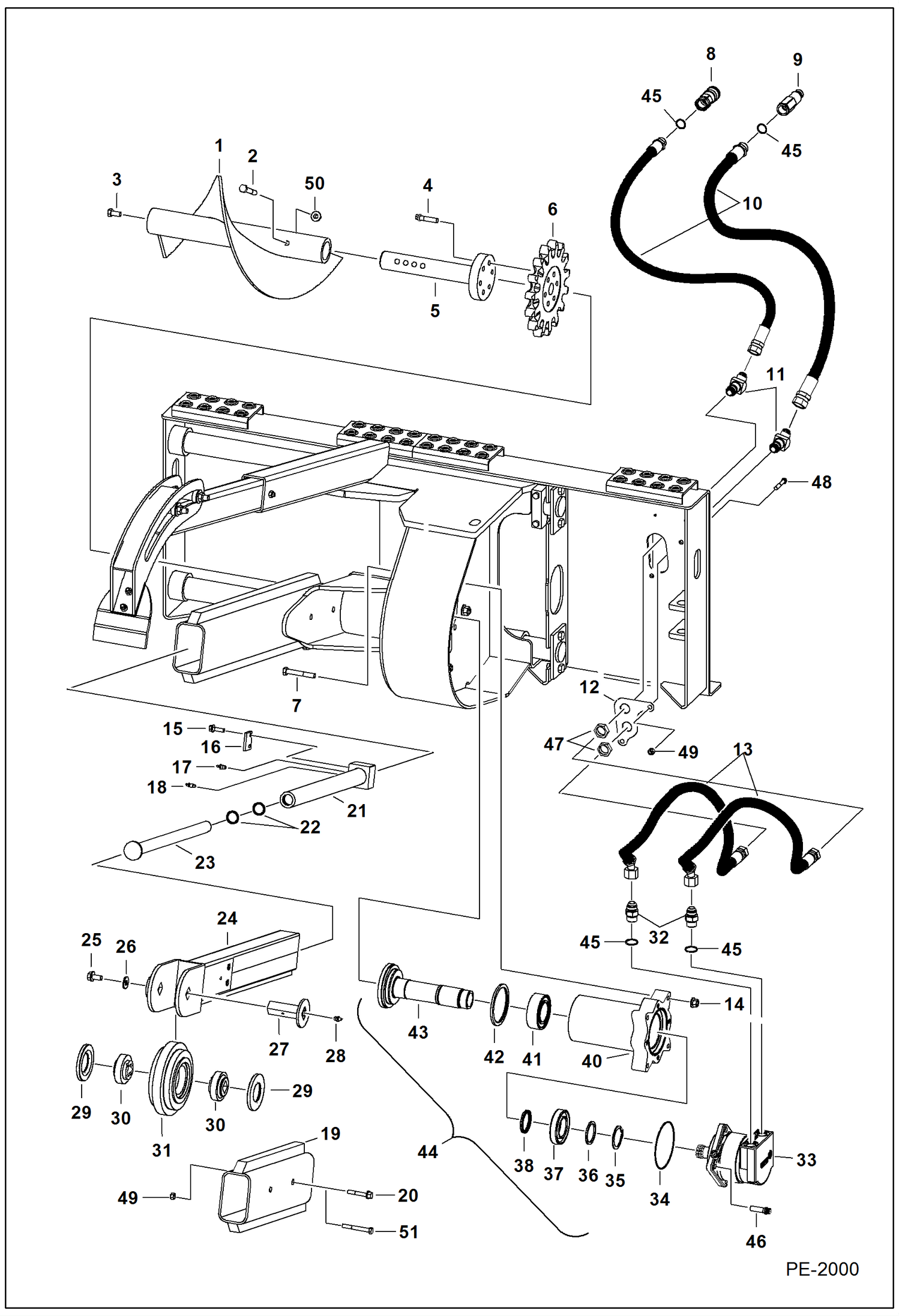

Запчасти Bobcat TRENCHERS TRENCHER (Digging Group) (LT313) Loader

1

6959088

AUGER Use W/ 1/2'' bolts

1

7131693

AUGER Use W/ 5/8'' bolts

2

17C856

BOLT 1/2'' dia.

2

17C1056

BOLT 5/8'' dia.

3

17C816

BOLT

4

93G832

BOLT 1/2'' dia.

4

93G1032

BOLT 5/8'' dia.

5

6806839

SHAFT Use W/ 1/2'' bolts

5

7110383

SHAFT Use W/ 5/8'' bolts

6

6959080

SPROCKET, TRENCHER Use W/ 1/2'' bolts

6

7110384

SPROCKET Use W/ 5/8'' bolts

7

17C852

BOLT 5

8

6672960

COUPLER, FF FEMALE straight

9

6674688

COUPLER, FF MALE straight

10

6959117

HOSE

11

46K8

ELBOW

12

6959214

WASHER

13

6959129

HOSE

14

83D8

NUT 5

15

31C620

BOLT Was 35C620 - B

16

6704189

COVER

17

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

18

6645812

SCREW, BLEED

19

6811684

BOOM GUIDE for four foot depth

20

84G3712

BOLT 5

21

6704612

CYLINDER, GREASE grease

22

6646836

SEAL

23

6959165

ROD

24

6959095

BOOM END

25

49C816

BOLT Was 35C816 - B

26

27E8

WASHER 10 Was 6675521 - B

27

6703308

SHAFT

28

10H25

FITTING, GREASE 5

29

6703305

WASHER

30

6659352

BEARING, SHAFT

31

6959094

ROLLER

32

15KB1212

FITTING, HYD CONNECTOR

33

MOTOR See Illustration TRENCHER/ B18427B

34

58K160

O-RING 10 Was 25K030508B - B

35

743669

SNAP RING

36

6806562

WASHER

37

6646236

BEARING

38

6684673

SEAL pressure

39

INSERT NLA - Used on earlier machines - Was 6959213 - A

40

6959225

HOUSING Was 6959132 - A

41

6576155

BEARING

42

6684675

SEAL dust

43

6959212

SHAFT Use W/ 1/2'' sprocket bolts

43

7131871

SHAFT Use W/ 5/8'' sprocket bolts

43

7110577

SHAFT Use W/ 5/8'' sprocket bolts

44

6959247

CARRIER ASSY W/Ref. 35-43 - Use W/ 1/2'' sprocket bolts

44

7132556

CARRIER ASSY W/Ref. 35-43 - Use W/ 5/8'' sprocket bolts

44

7110385

CARRIER ASSY W/Ref. 35-43 - Use W/ 5/8'' sprocket bolts

45

79K12

O RING 10

46

93GT828

BOLT Was 93G828 - B

47

86F8

NUT 5

48

17C616

BOLT 5

49

85D6

NUT, 5 Was 87D000006B - A

50

83D8

NUT 5 1/2'' dia.

50

53D10

NUT 5/8'' dia. - Was 83D10 - B

51

17C656

BOLT
