Запчасти Bobcat TRENCHERS TRENCHER (Cup/Carbide Tooth Kit) (203 mm (8) wide) (LT304) Loader

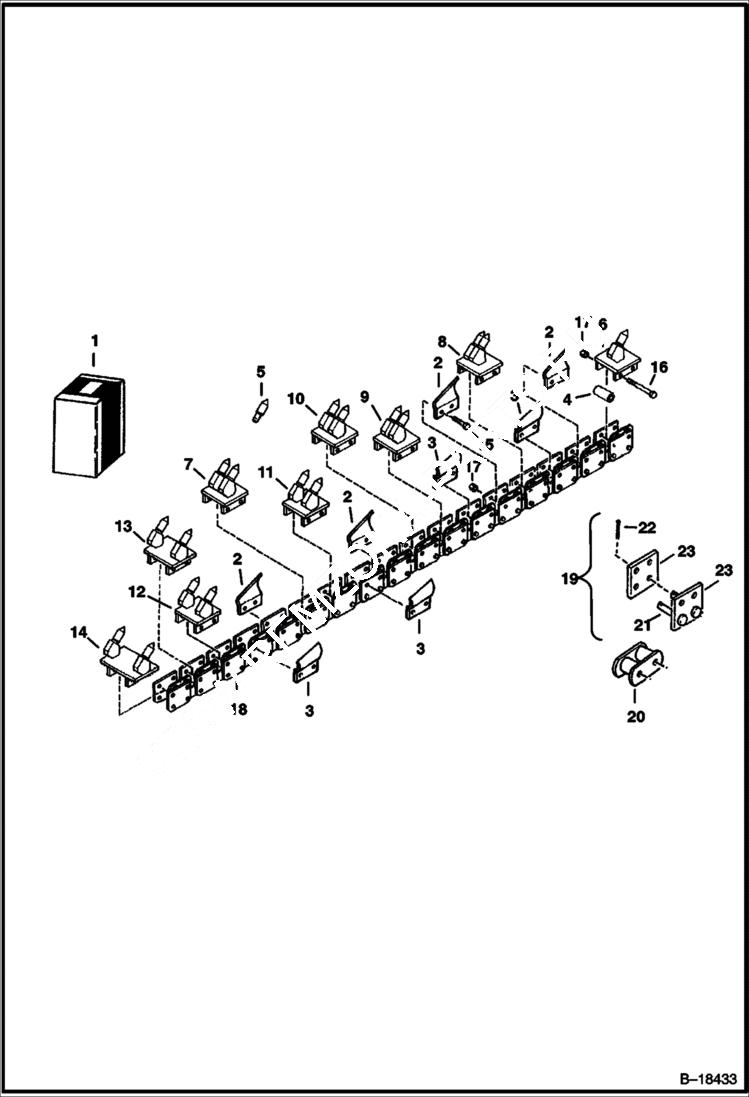

Схема запчастей Bobcat TRENCHERS - TRENCHER (Cup/Carbide Tooth Kit) (203 mm (8) wide) (LT304) Loader

Артикул

Название

Примечание

Количество

1

6807928

TOOTH KIT W/Ref. 2-17 - without chain

2

6634415

TOOTH L.H.

3

6634414

TOOTH R.H.

4

6807587

SPACER

5

6659946

BIT, TOOTH CARBIDE

6

6675710

MOUNT center

7

6675711

MOUNT 1.00''(25mm)

8

6675712

MOUNT 2.00''(51mm)

9

6675713

MOUNT 3.00''(76mm)

10

6675714

MOUNT 4.00''(102mm)

11

6675715

MOUNT 5.00''(127mm)

12

6675716

MOUNT 6.00''(152mm)

13

6675717

MOUNT 7.00''(178mm)

14

6675718

MOUNT 8.00''(203mm)

15

17C820

BOLT

16

17C856

BOLT

17

85D8

NUT, 5

18

6675594

CHAIN chain only - 70 pitch - not included in Ref. 1 - for chain assy with teeth Order 6808245 from Sales

19

6678092

KIT, PIN & CONNECTOR (2) each of Ref. 21 & 23

20

6678093

LINK, ROLLER

21

6678094

PIN 73 mm (2.875'') long - W/Ref. 22

22

6678095

PIN, COTTER

Выбрано товаров: 22
