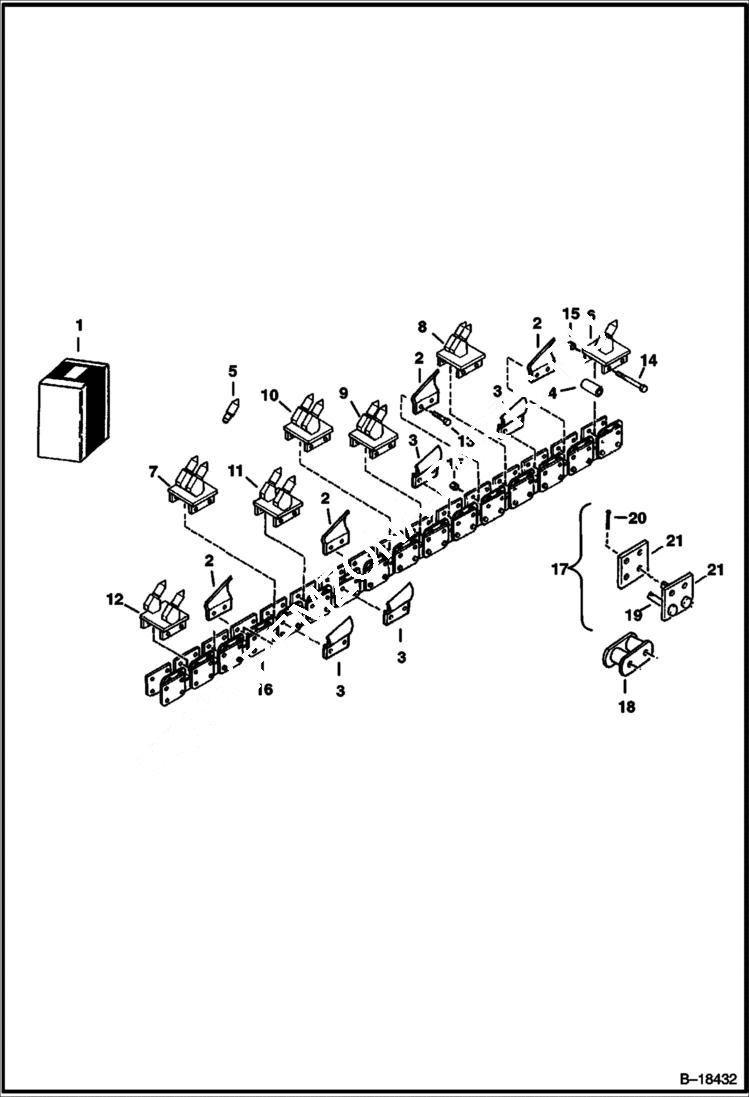

Запчасти Bobcat TRENCHERS TRENCHER (Cup/Carbide Tooth Kit) (152 mm (6) wide) (LT304) Loader

1

6807927

TOOTH KIT Ref. 2-15 - without chain

2

6634415

TOOTH L.H.

3

6634414

TOOTH R.H.

4

6807587

SPACER

5

6659946

BIT, TOOTH CARBIDE

6

6675710

MOUNT center

7

6675711

MOUNT 1.00''(25mm)

8

6675712

MOUNT 2.00''(51mm)

9

6675713

MOUNT 3.00''(76mm)

10

6675714

MOUNT 4.00''(102mm)

11

6675715

MOUNT 5.00''(127mm)

12

6675716

MOUNT 6.00''(152mm)

13

17C820

BOLT

14

17C856

BOLT

15

85D8

NUT, 5

16

6675594

CHAIN chain only - 70 pitch

17

6678092

KIT, PIN & CONNECTOR (2) each of Ref. 19 & 21

18

6678093

LINK, ROLLER

19

6678094

PIN 73 mm (2.875'') long - W/Ref. 20

20

6678095

PIN, COTTER

21

PLATE, SIDEBAR NSS
