Запчасти Bobcat TRENCHERS TRENCHER (Cup Tooth Kit) (203 mm (8) wide) (LT304) Loader

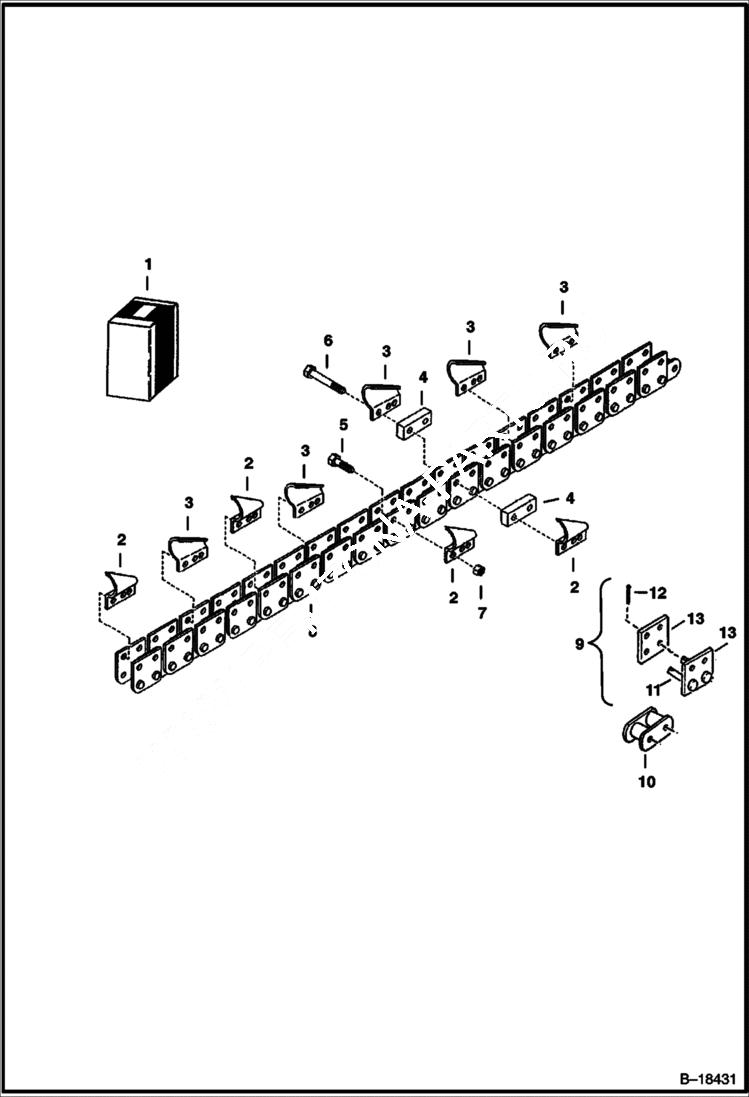

Схема запчастей Bobcat TRENCHERS - TRENCHER (Cup Tooth Kit) (203 mm (8) wide) (LT304) Loader

Артикул

Название

Примечание

Количество

1

6807926

TOOTH KIT W/Ref. 2-7 - without chain

2

6634415

TOOTH L.H.

3

6634414

TOOTH R.H.

4

6573375

SPACER 1''(25,4mm) wide

5

17C820

BOLT

6

17C836

BOLT

7

85D8

NUT, 5

8

6675594

CHAIN chain only - 70 pitch - not included in Ref. 1 - for chain assy with teeth order 6808243 from Sales

9

6678092

KIT, PIN & CONNECTOR (2) each of Ref. 11 & 13

10

6678093

LINK, ROLLER

11

6678094

PIN 73 mm (2.875'') long - W/Ref. 12

12

6678095

PIN, COTTER

13

PLATE, SIDEBAR NSS

Выбрано товаров: 13
