Запчасти Bobcat TRENCHERS TRENCHER (Cup Tooth Kit) (254 mm (10) wide) (LT303) Loader

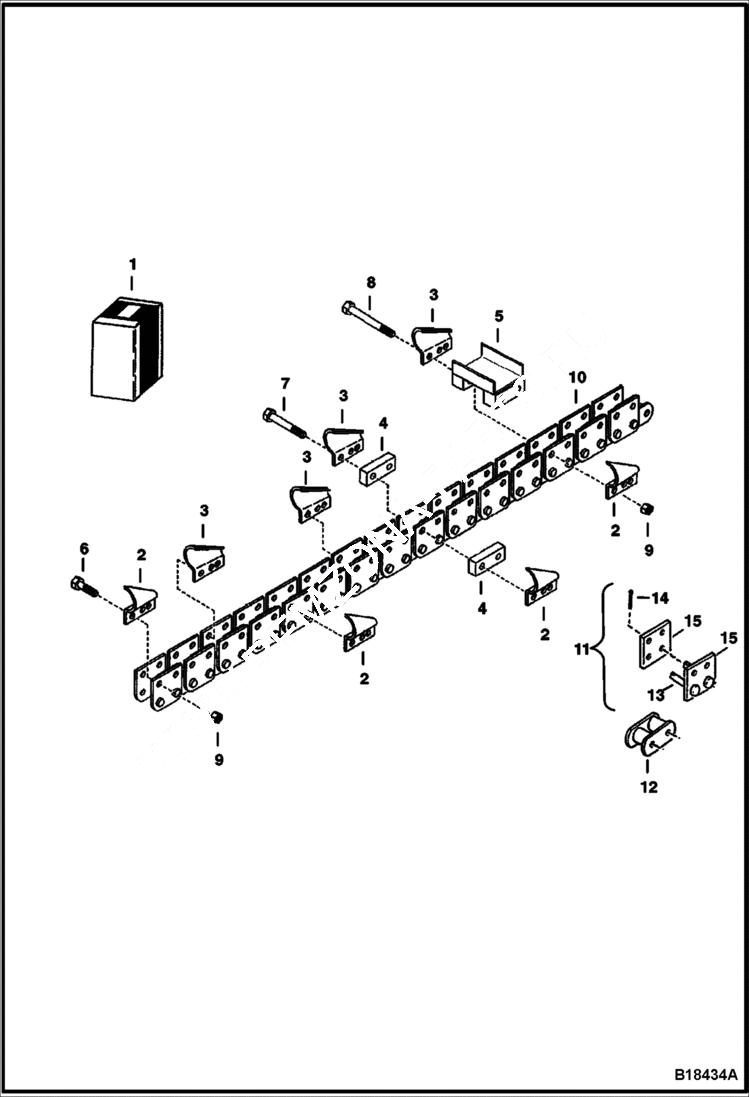

Схема запчастей Bobcat TRENCHERS - TRENCHER (Cup Tooth Kit) (254 mm (10) wide) (LT303) Loader

Артикул

Название

Примечание

Количество

1

6807902

TOOTH KIT W/Ref. 2-9 - without chain

2

6634415

TOOTH L.H.

3

6634414

TOOTH R.H.

4

6573375

SPACER 1''(25,4mm) wide

5

6675900

ADAPTER 10''(254mm)

6

17C820

BOLT

7

17C836

BOLT

8

17C848

BOLT

9

85D8

NUT, 5

10

6675594

CHAIN chain only - 70 pitch

10

6970071

CHAIN chain only - 60 pitch

10

6970072

CHAIN chain only - 10 pitch

11

6678092

KIT, PIN & CONNECTOR (2) each of Ref. 13 & 15

12

6678093

LINK, ROLLER

13

6678094

PIN 73 mm (2.875'') long - W/Ref. 14

14

6678095

PIN, COTTER

15

PLATE, SIDEBAR NSS

Выбрано товаров: 17
