Запчасти Bobcat TRENCHERS TRENCHER (Tooth Kits) (LT213) Loader

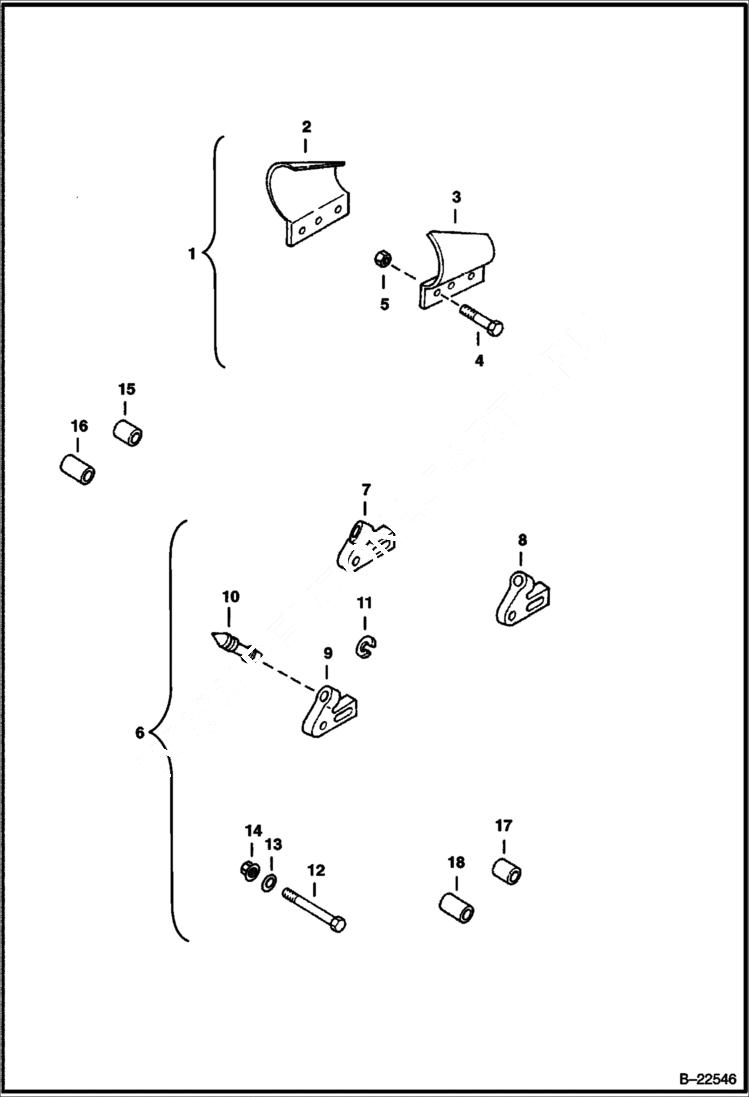

Схема запчастей Bobcat TRENCHERS - TRENCHER (Tooth Kits) (LT213) Loader

Артикул

Название

Примечание

Количество

1

6701918

KIT, CUP Ref. 2-5

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

17C616

BOLT 5

5

85D6

NUT, 5

6

6705531

KIT, CARBIDE 24-36 Ref. 7-12 & 14-18

7

6655757

HOLDER RH - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

7

7193188

HOLDER, BIT RH - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

8

6655756

HOLDER LH - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

8

7193187

HOLDER, BIT LH - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

9

6655758

HOLDER, BIT inline - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

9

7193189

HOLDER, BIT inline - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

10

6655755

BIT, CARBIDE W/Ref. 11

11

6633840

CLIP

12

35C640

BOLT 10 tooth mounted on inside

12

31C648

BOLT tooth mounted on outside - Was 35C648 - B

13

6557831

WASHER Use W/carbide bits

14

83D6

NUT 5 flange head - Use W/carbide bits - Was 97D6 - B

15

6705530

SPACER 22,86 mm (0.90'') long - Use W/SS chain - tooth mounted on inside

16

6576369

SPACER 35,3 mm (1.39'') long - Use W/SS chain - tooth mounted on outside

17

6701878

BUSHING 25,9 mm (1.02'') long - Use W/DS chain - tooth mounted on inside

18

6701880

BUSHING 38,6 mm (1.52'') long - Use W/DS chain - tooth mounted on outside

Выбрано товаров: 22
