Запчасти Bobcat TRENCHERS TRENCHER (Chain & Tooth Assy) (3 Depth - 4 Wide Cup Teeth in Double Std Pattern) (LT213) Loader

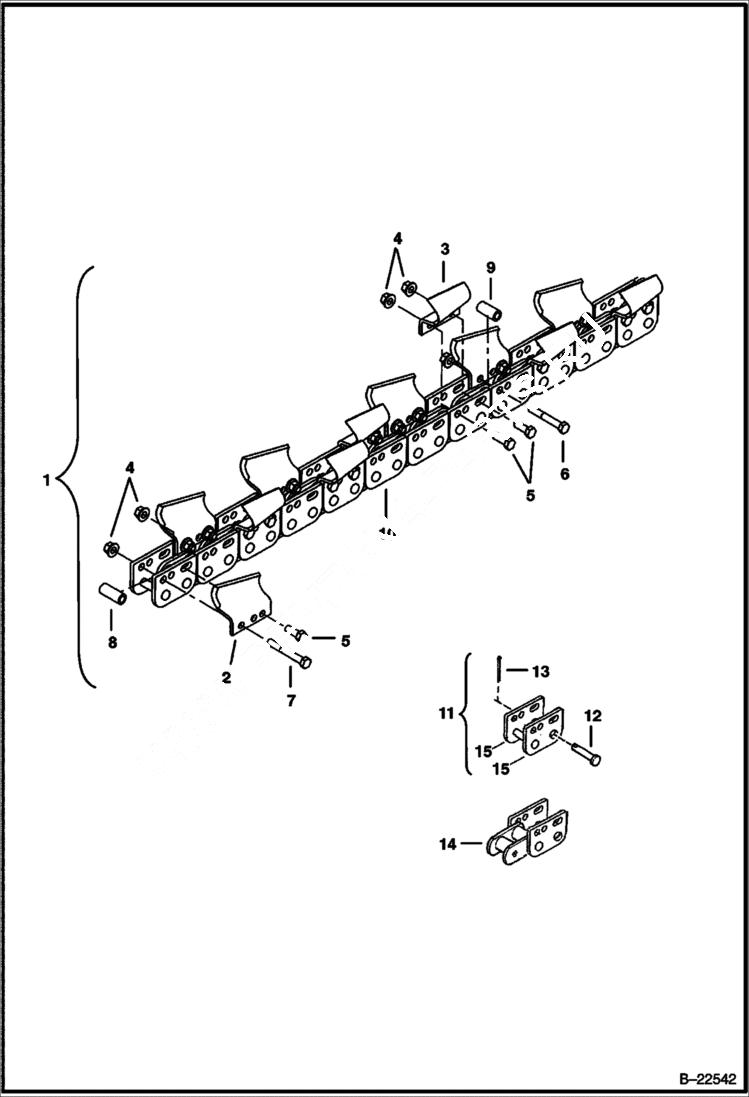

Схема запчастей Bobcat TRENCHERS - TRENCHER (Chain & Tooth Assy) (3 Depth - 4 Wide Cup Teeth in Double Std Pattern) (LT213) Loader

Артикул

Название

Примечание

Количество

1

KIT SALES #6959321 - Ref. 2-10

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

83D6

NUT 5

5

17C616

BOLT 5

6

17C640

BOLT 5

7

17C644

BOLT

8

6701880

BUSHING

9

6959340

BUSHING

10

6959303

CHAIN 68 pitch - chain only

11

6685356

KIT, PIN & CONNECTOR W/ (2) each of Ref. 12 & 15

12

6685354

PIN & COTTER ASSY W/Ref. 13

13

6685355

PIN, COTTER

14

6685357

CONNECTOR ASSY

15

PLATE, SIDEBAR NSS

Выбрано товаров: 15
