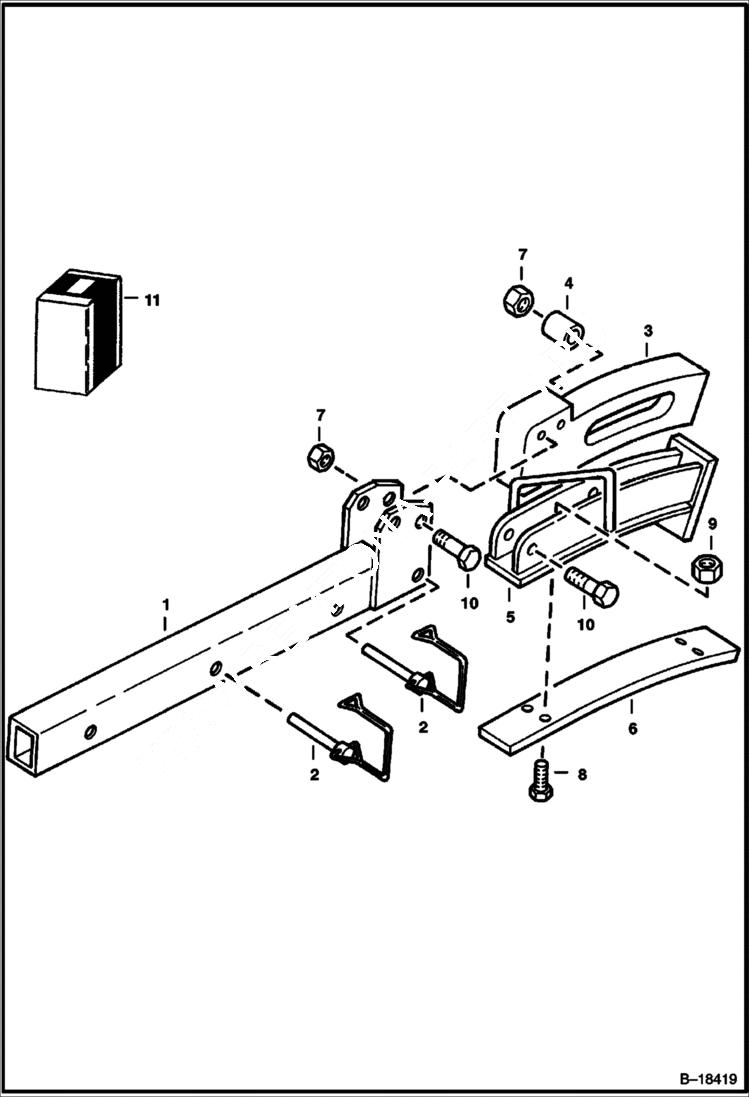

Запчасти Bobcat TRENCHERS TRENCHER (Trench Cleaner) (LT204) Loader

1

6577317

BAR For 609,6 mm (24'') thru 914,4 mm (36'') boom

1

6577319

BAR For 914,4 mm (36'') thru 1219,2 mm (48'') boom - not in kit

2

6648773

PIN

3

6572490

FOOT

4

6572493

ROLLER

5

6572491

SHOE

6

6572494

ADAPTER 127 mm (5'') shoe - not in kit

6

6705525

ADAPTER 304,8 mm (12'') shoe - not in kit

7

59D8

NUT 5 Was 85D8 - B

8

17C616

BOLT 5

9

85D6

NUT, 5

10

17C844

BOLT

11

6704447

KIT Ref. 1 (6577317 bar), 2-5 & 7-10
