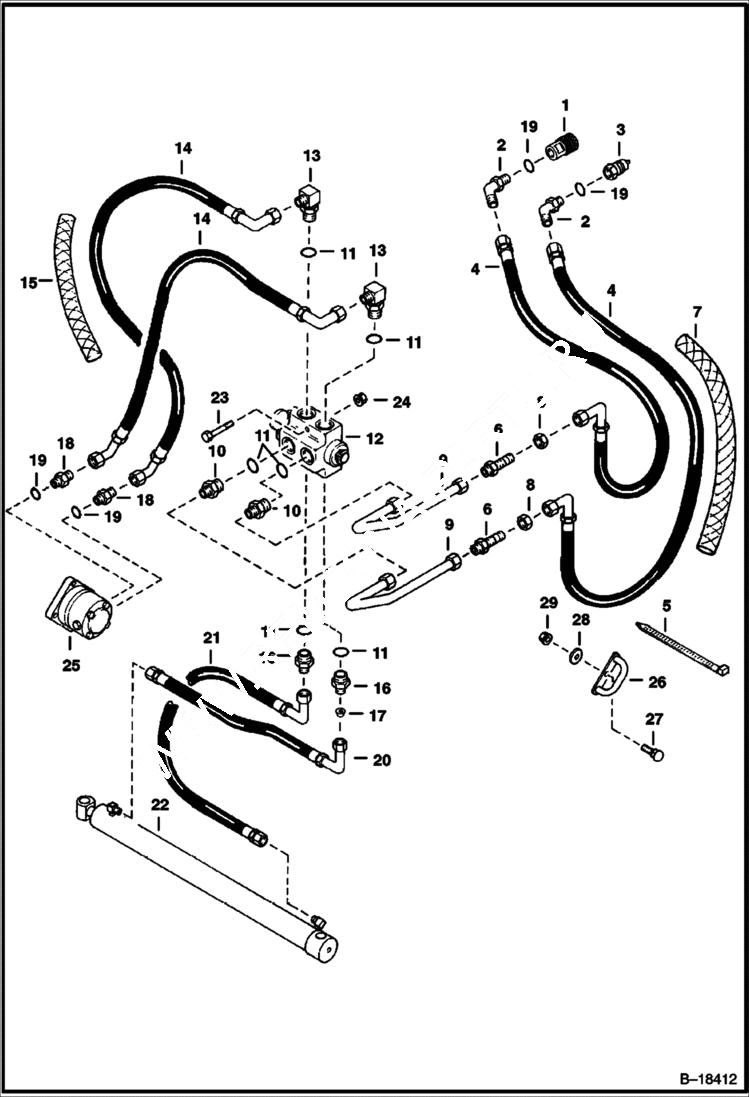

Запчасти Bobcat TRENCHERS TRENCHER (Hydraulic Circuitry) (LT204) Loader

1

6598758

COUPLER, POPPET FEMALE straight

1

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

2

17K7

ELBOW Use with poppet couplers

2

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - A

3

6598757

COUPLER, POPPET MALE straight

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

6679841

SEAL Was 6672026 - A

4

6709898

HOSE Was 6705904 - A

5

6610510

TIE

6

45K7

CONNECTR

7

COVER NLA - 53'' (1346,2mm) long - Order 6650108

7

6650108

HOSE COVER bulk - Sold Per Foot

8

86F7

LOCK NUT

9

6705135

TUBELINE

10

15KB1012

FITTING, HYD CONNECTOR W/Ref. 11 - Was 755055B - A

11

79K12

O RING 10 for flat boss face

11

99K12

O RING tapered boss face

12

6662062

VALVE See Illustration TRENCHER/ TS1151A

13

17KB1012

FITTING, HYD ELBOW W/Ref. 11 - flat boss face - Was 1302104B - A

13

6805180

ELBOW W/Ref. 11 - tapered boss face

13

97K10

O-RING 10 for flared end

14

6709899

HOSE Was 6705903 - A

15

COVER NLA - 46'' (1168,4mm) long - Order 6650108

16

6578812

ADAPTER W/Ref. 11

17

6587339

ORIFICE .077'' (1,96mm) Dia. - Was 6592864 - A

18

15K7

FITTING W/Ref. 19

19

79K10

O RING 10 Use with poppet couplers

19

79K12

O RING 10 Use with flush face couplers

20

6587032

HOSE 25''(635mm) long

20

6716391

HOSE 23''(584mm) long

21

6700024

HOSE

22

CYLINDER See Illustration TRENCHER/ TS1147A

23

17C648

BOLT 5

24

83D6

NUT 5

25

MOTOR See Illustration TRENCHER/ C3328B

26

6706160

GUIDE

27

37C656

BOLT

27

37C664

BOLT 7753 & 853 Only

28

872229

WASHER

29

83D6

NUT 5
