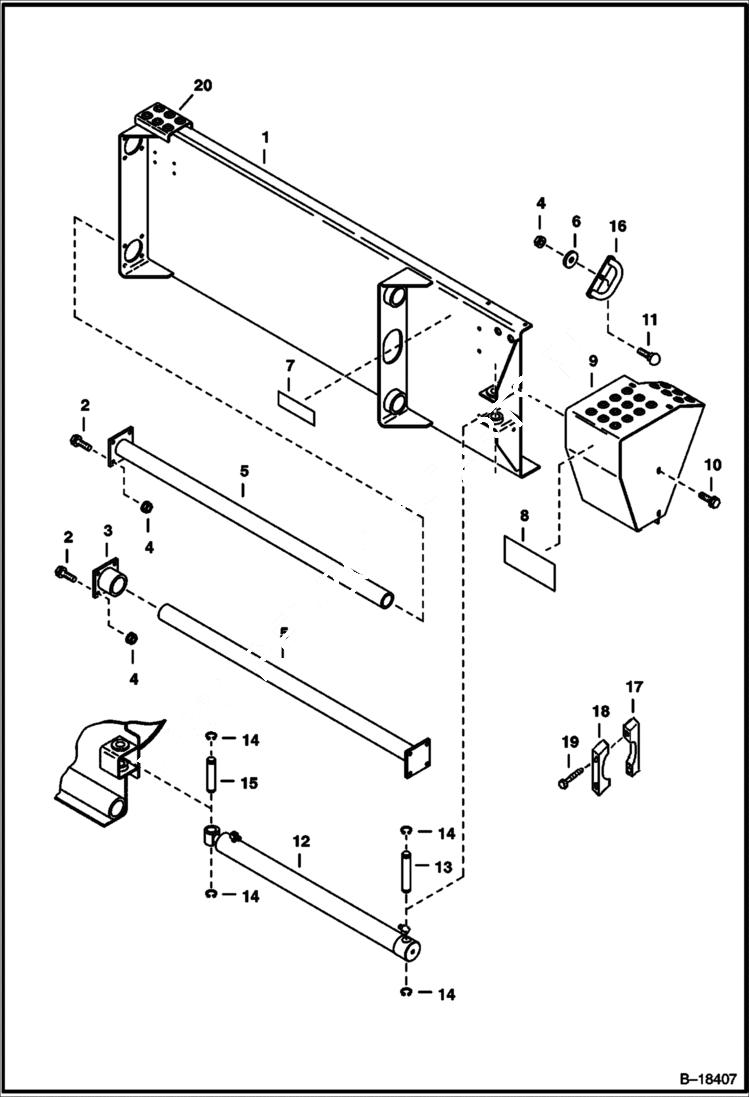

Запчасти Bobcat TRENCHERS TRENCHER (Mounting Frame) (LT204) Loader

1

FRAME NLA - Order 6704258 , (2) 6705138 , (8) 35C000620B & (8) 83D000006B

1

6704258

FRAME

2

35C620

BOLT 5

3

6704195

END CAP

4

83D6

NUT 5

5

6705138

ROD SLIDE

6

872229

WASHER

7

6705603

DECAL selector

8

6567987

DECAL, LOGO BOBCAT AND HEAD

9

6705527

COVER

10

84G3712

BOLT 5

11

37C664

BOLT 7753 & 853 only

11

37C656

BOLT

12

CYLINDER See Illustration TRENCHER/ TS1147A

13

6704191

PIN

14

1320431

RING, SNAP

15

PIN NLA - Order Ref. 13 - Was 6704190 - A

16

6706160

GUIDE

17

6806949

CLAMP with threaded holes

18

6806950

CLAMP with thru holes

19

17C636

BOLT

20

6905990

STEP
