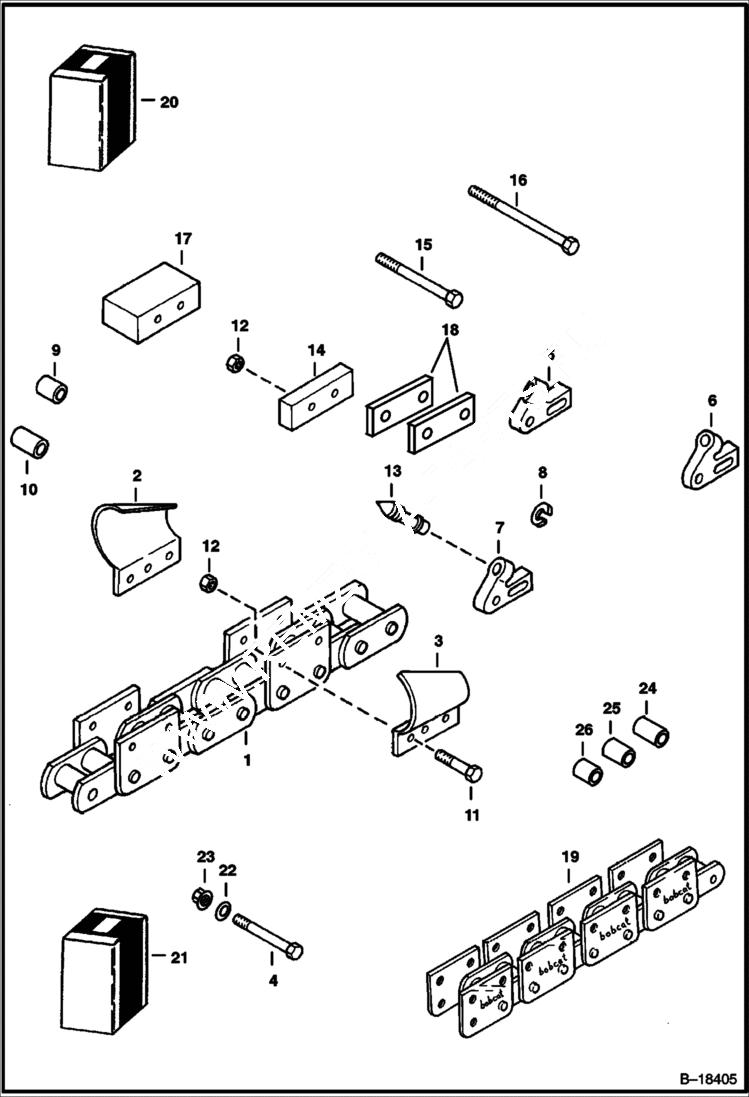

Запчасти Bobcat TRENCHERS TRENCHER (Chains & Teeth) (LT203) Loader

1

6675519

CHAIN 66 pitch SS ABF

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

31C648

BOLT tooth mounted on outside - Was 35C648 - B

4

35C640

BOLT 10 tooth mounted on inside

5

6655757

HOLDER RH - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

5

7193188

HOLDER, BIT RH - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

6

6655756

HOLDER LH - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

6

7193187

HOLDER, BIT LH - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

7

6655758

HOLDER, BIT inline - cast - 20 mm x 75,7 mm (.79'' x 2.98'') base - W/O bit - not in kit

7

7193189

HOLDER, BIT inline - welded - 44,5 mm x 71,6 mm (1.75'' x 2,82'') base - W/O bit

8

6633840

CLIP

9

6705530

SPACER 22,86 mm (0.90'') long - Use W/Ref. 1 - tooth mounted on inside

10

6576369

SPACER 35,3 mm (1.39'') long - Use W/Ref. 1 - tooth mounted on outside

11

17C616

BOLT 5

12

85D6

NUT, 5

13

6655755

BIT, CARBIDE W/Ref. 8

14

SPACER NLA - 12,7 mm (0.5'') thick - Use W/ 152,4 mm (6'') wide chain tooth pattern - Order Ref. 18 - Was 6702158 - A

15

17C648

BOLT 5

16

17C664

BOLT

17

6702159

SPACER 38,1 mm (1.5'') thick - Use W/ 203,2 mm (8'') wide chain tooth pattern

18

6713795

SPACER 6,35 mm (0.25'') thick - Use W/ 152,4 mm (6'') wide chain tooth pattern

19

6675520

CHAIN 66 pitch DS ABF

20

6701918

KIT, CUP Ref. 2, 3, 11 & 12

21

6705531

KIT, CARBIDE 24-36 Ref. 4-10, 13, 23, 24 & 26

22

6557831

WASHER Use W/carbide bits

23

83D6

NUT 5 flange head - Use W/carbide bits - Was 97D6 - B

24

6701880

BUSHING 38,6 mm (1.52'') long - Use W/Ref. 19 - tooth mounted on outside

25

6701879

SPACER 34,8 mm (1.37'') long - Use W/Ref. 19 - tooth mounted on inside

26

6701878

BUSHING 25,9 mm (1.02'') long - Use W/Ref. 19 - tooth mounted on inside
