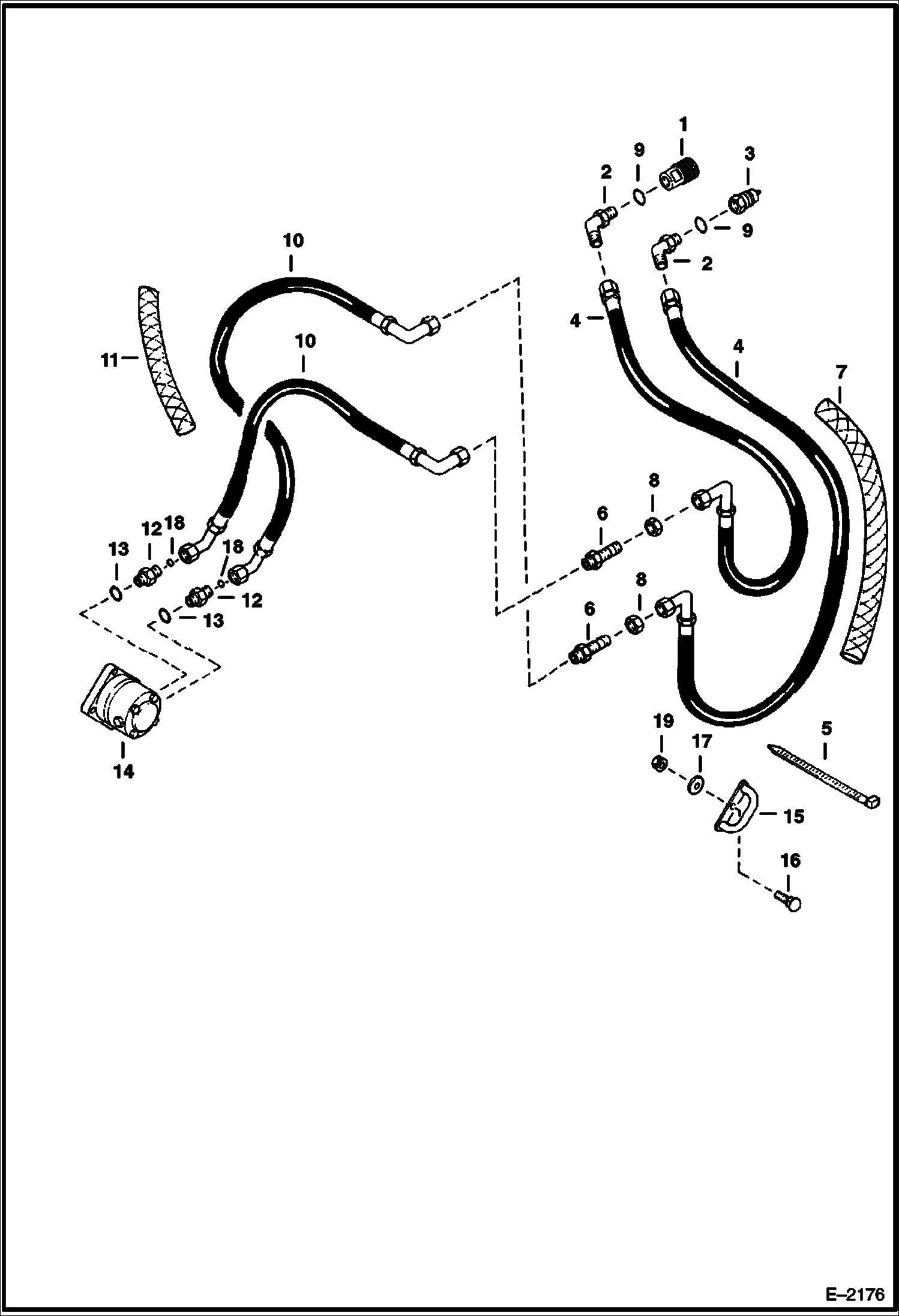

Запчасти Bobcat TRENCHERS TRENCHER (Hydraulic Circuitry) (LT203) Loader

1

6672960

COUPLER, FF FEMALE straight

2

6715651

ELBOW W/Ref. 19

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

6679841

SEAL Was 6672026 - A

4

6709898

HOSE

5

6610510

TIE

6

45K7

CONNECTR

7

HOSE COVER NLA - 53'' (1346,2mm) long - Order 6650108

7

6650108

HOSE COVER bulk - Sold Per Foot

8

86F7

LOCK NUT

9

79K12

O RING 10 for flat boss face

9

99K12

O RING tapered boss face

10

6709899

HOSE

11

HOSE COVER NLA - 46'' (1168,4mm) long - Order 6650108

12

15KB1010

FITTING, HYD CONNECTOR W/Ref. 19 - Was 15KV00007B - A

13

99K10

O'RING

14

MOTOR See Illustration TRENCHER/ C3328A

15

6706160

GUIDE

16

37C648

BOLT Use on 540's, 640's & 740's

16

37C656

BOLT Use on 750's

16

37C664

BOLT Use on 773 & 850's

17

872229

WASHER

18

97K10

O-RING 10

19

83D6

NUT 5
